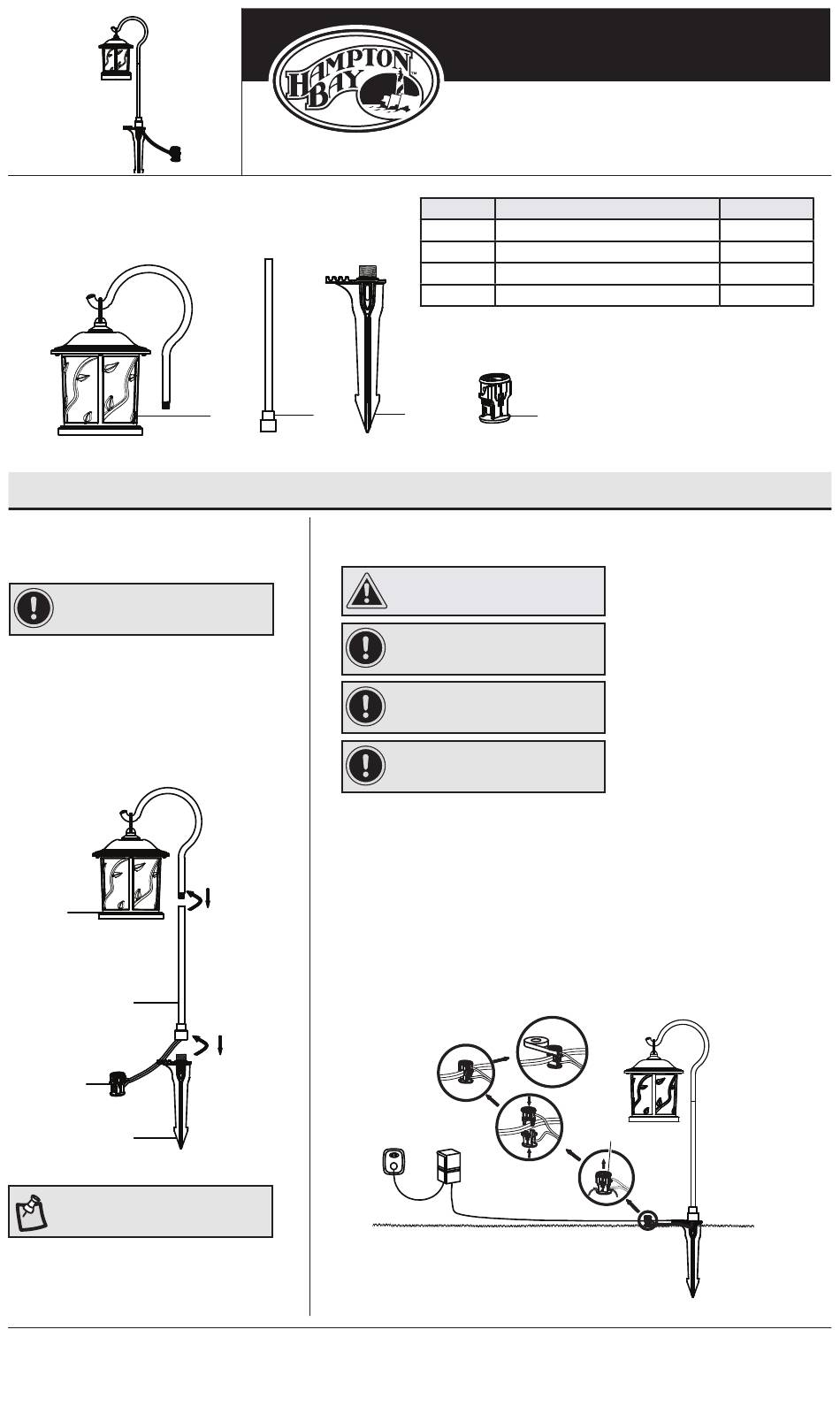

HAMPTON BAY 29608 Use And Care Manual

PACKAGE CONTENTS
Assembly and Installation
1
Attaching and installing the
light
IMPORTANT: Do not install the light within 10 ft.
(3 m) of a pool, spa, or fountain.
□
Insert the path light head (A) into the post (B)
and twist it clockwise until tight.
□
Attach the post (B) to the stake (C) by
inserting the bottom of the post (B) into the
top of the stake (C) and twisting clockwise.
□
Push the stake assembly into the ground by
grasping the post. Do not push on the light.
A
B
D
C
NOTE: Do not use a hammer. If the ground is
hard, use water to soften or a trowel to loosen
the soil.
A
B
2
Connecting the wires
□
Detach and place the wire connector (D) on opposite sides of the low
voltage cable where the fixture will be located.
□
Align and fit the main low voltage cable vertically in the slot of the wire
connector as shown.
□
Press the wire connector (D) together until fully seated and locked
around the cable. Pre-set prongs will pierce the cable insulation and
establish contact. Turn on the power unit. If the light fixture does not turn
on, repeat operations 2 and 3.
□
Once the clip-on connector is in place, wrap it with electrical tape (not
included) for additional protection.
Use and Care Guide
Part Description
A Path light head
B Post
C Stake
D Connector
C
D
CAUTION: The wire from the low voltage power
unit shall be 12-16 AWG type underground Low
Energy Circuit Cable.
IMPORTANT: Protect the wiring by routing it in
close proximity to the light, fitting, or next to a
building structure such as a house or a deck.
IMPORTANT: Do not bury the wiring by more
than 6 in. (15.24 cm) in order to connect to the
main secondary wire.
IMPORTANT: Do not submerge in water. This
product could be damaged.
1
Please contact 1-855-HD-HAMPTON for further assistance.
Item #1000 xxx xxx
Model #29608
Path Light
Quantity
1
1
1
1
D
