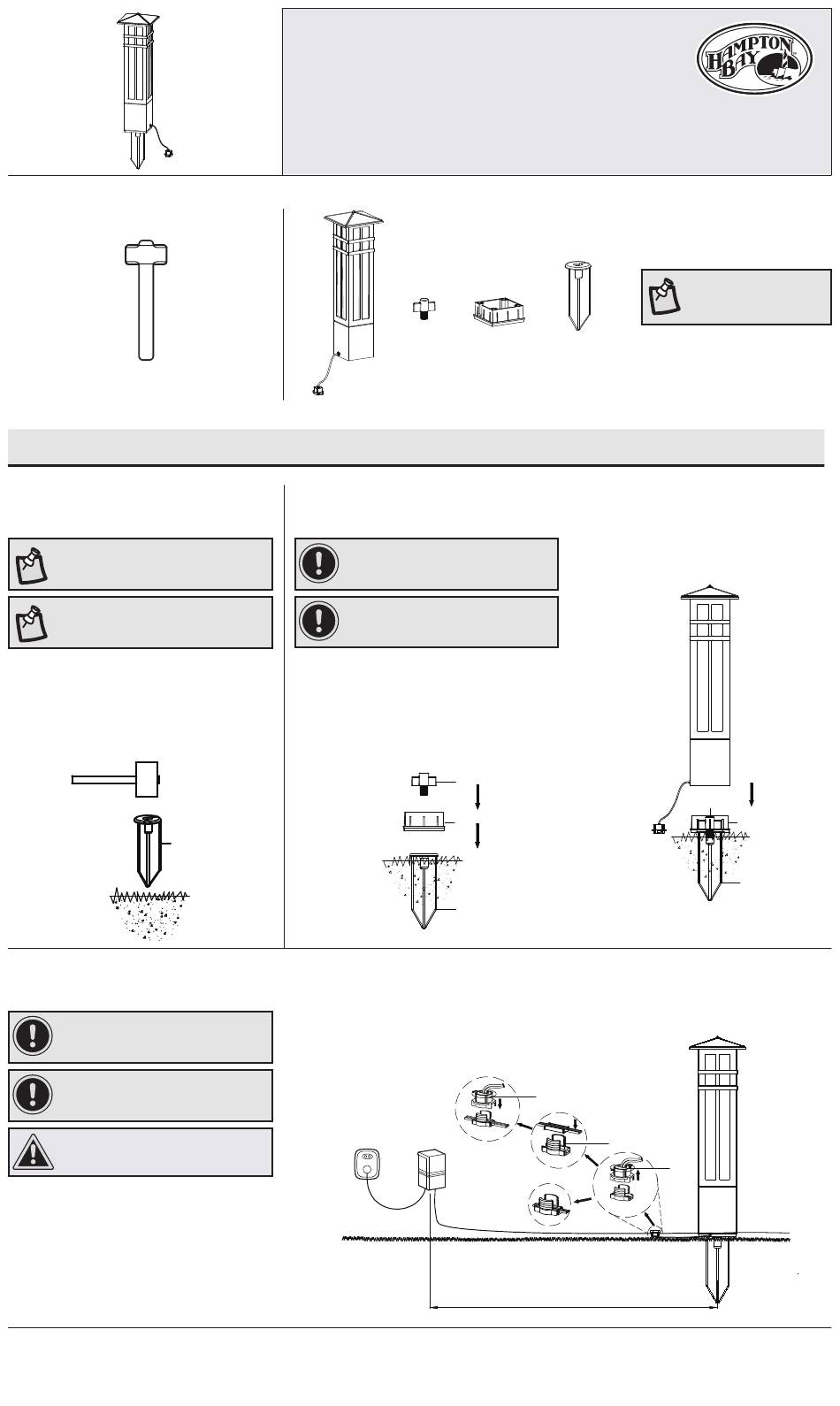

HAMPTON BAY 29548 Use And Care Manual

RECOMMENDED TOOLS
Rubber Mallet

Assembly and Installation

1
Installing the stake
NOTE: If the ground is hard, use water to soften
or a trowel to loosen the soil.
NOTE: The stake is stored in the bollard for
shipping purposes.
□
Twist the bollard cover counter-clockwise
to remove the top and remove the stake
(D).
□
Use a rubber mallet to install the stake
(D) into ground.
Rubber Mallet
3

Connecting the wires

IMPORTANT: Protect the wiring by routing it in
close proximity to the light, fitting, or next to a
building structure such as a house or a deck.
IMPORTANT: Do not bury the wiring by more
than 6 in. (152mm) in order to connect to the
main secondary wire.
CAUTION: The wire from the low voltage
power unit shall be 14-18AWG type
underground Low Energy Circuit Cable.
□
Mount the wire connector (AA) to the lead
wire from a transformer (not included) by
twisting the top of the wire connector (AA) off
in a counterclockwise direction.
□
Twist the top of the wire connector (AA) back
on in a clockwise direction.
□
Repeat this step for each light assembly.
Use and Care Guide
PACKAGE CONTENTS
2
Installing the base and
bollard
□
D
Low Voltage LED
Bollard Pathlight
Bollard Fastener Base
(A) (B)
IMPORTANT: Do not install the light within 10 ft.
(3 m) of a pool, spa, or fountain.
IMPORTANT: Do not submerge in water. The
product could be damaged.
Place the base (C) over the stake (D) and
align the holes. Insert the fastener (B)
through the base (C) and into the stake (D).
Turn the knob of the fastener (B) clockwise
to tighten. Level the base by lightly tapping
the fastener (B) with a rubber mallet.
B
C
D
1
ITEM
MODEL
Stake
(C) (D)
□
Align the wire on the bollard (A) with the
hole on the side of the base (C). Slide the
bollard (A) over the base (C) to attach.
AA
AA
Please contact 1-877-527-0313 for further assistance.
#915-323
#29548
NOTE: Parts (B), (C), and (D)
are all included inside the
bollard.
B
C
D
AA
HAMPTONBAY.COM
