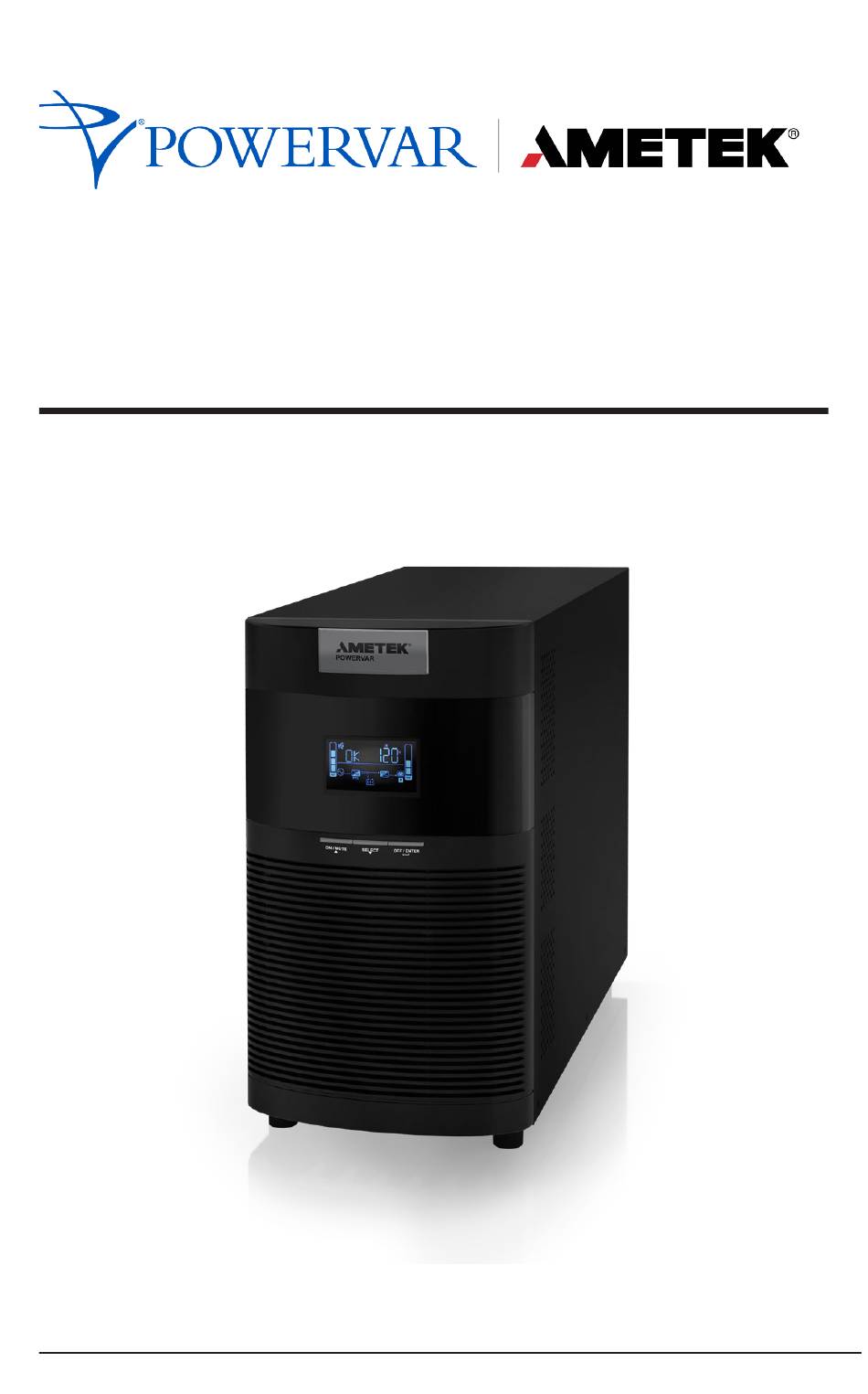

Sinergy III UPS Tower User's
Manual
2kVA & 3kVA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Powervar Sinergy III 2kVA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ametek Powervar Sinergy III 2kVA

Summary of Contents for Ametek Powervar Sinergy III 2kVA

  • Page 1 Sinergy III UPS Tower User’s Manual 2kVA & 3kVA...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1.0 GENERAL SAFETY INSTRUCTIONS ..........5 1.1 Transportation ................5 1.2 Preparation ................. 5 1.3 Installation .................. 5 1.4 Operation ..................6 1.5 Maintenance, Service and Faults ..........7 1.6 Batteries ..................8 2.0 INSTALLATION AND SETUP ............10 2.1 Rear Panel View ...............
  • Page 3 Thank you for your purchase of the AMETEK Powervar Sinergy III Tower (UPS). The product you have purchased is the most advanced solution available today to protect and provide clean power to your system. We’ve prepared this document to help familiarize you with the functions and controls of this product.
  • Page 4 Danger- The danger symbol is used to indicate imminently hazardous situations, locations, and conditions which, if not avoided, WILL result in death, serious injury, and/or severe DANGER property damage. Caution- The caution symbol is used to indicate potentially hazardous situations and conditions which, if not avoided, may result in injury.

  • Page 5: General Safety Instructions

    1.0 GENERAL SAFETY INSTRUCTIONS Please comply with all warnings and operating instructions in this manual strictly. Save this manual properly and carefully read the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully. 1.1.

  • Page 6: Operation

    Please use only VDE-tested, CE-marked (or UL-marked for • 100/110/115/120/127 VAC models) mains cable (ex: the mains cable of your computer) to connect the UPS system to the building wiring outlet (shockproof outlet). Please use only VDE-tested, CE-marked (or UL-marked for •...

  • Page 7: Maintenance, Service And Faults

    1.5. Maintenance, Service and Faults • The UPS system operates with hazardous voltages. Repairs may be carried out only by qualified maintenance personnel. CAUTION Risk of electric shock. Even after the unit is disconnected from the mains (building wiring outlet), components inside the UPS system are still connected to the battery and electrically live and dangerous.

  • Page 8: Batteries

    1.6. Batteries Batteries may cause electric shock and have a high short-circuit current. Please take the precautionary measures specified below and any other measures necessary when working with batteries: Remove watches, rings, or other metal objects. • Use tools with insulated handles. •...
  • Page 9 WARNING This is a category C2 UPS product. In a residential environment, this product may cause radio interference, in which case the user many be required to take additional measures. Only for 110/120 VAC system: NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

  • Page 10: Installation And Setup

    2.0 INSTALLATION AND SETUP NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Please keep the original package in a safe place for future use. 2.1 Rear panel view Tower Models NEMA Type 1.

  • Page 11: Operating Principle

    2.2 Operating principle The operating principle of the UPS is shown as below: Output Input Dynamic Bypass EMI/RFI Rectifier Inverter Filters /PFC DC-to-DC Converter Battery Battery Charger The UPS is composed of mains input, EMI/RFI filters, rectifier/PFC, inverter, battery charger, DC-to-DC converter, battery, dynamic bypass and UPS output.
  • Page 12 It is required to maintain maximum altitude of 1000m to keep UPS normal operation at full load UPS. If it is used in high altitude area, please reduce connected load. Altitude derating power with connected loads for UPS normal operation is listed as below: Place UPS: It is equipped with fan for cooling.
  • Page 13 Step 2: UPS output connection There two kinds of outputs: programmable outlets and general outlets. Please connect non-critical devices to the programmable outlets and critical devices to the general outlets. During power failure, you may extend the backup time to critical devices by setting shorter backup time for non-critical devices.
  • Page 14 Step 5: Disable and enable EPO function This UPS is equipped with EPO function. By default, the UPS is delivered from factory with Pin 1 and pin 2 closed (a metal plate is connected to Pin 1 and Pin2) for UPS normal operation. To activate EPO function, remove two screws on EPO port and metal plate will be removed.

  • Page 15: Operations

    3.0 OPERATIONS 3.1 Button operation Button Function • Turn on the UPS: Press and hold ON/Mute button for at least 2 seconds to turn on the UPS. Mute the alarm: After the UPS is turned on in battery • mode, press and hold this button for at least 3 seconds to disable or enable the alarm system.

  • Page 16: Lcd Panel

    3.2 LCD Panel Display Function Backup time information Indicates the estimated backup time. H: hours, M: minute, S: second. Configuration and fault information Indicates the configuration items, and the configuration items are listed in detail in section 3-5. Indicates the warning and fault codes, and the codes are listed in detail in section 3-7 and 3-8.

  • Page 17: Audible Alarm

    Programmable outlets information Indicates that programmable management outlets are working. Mode operation information Indicates the UPS connects to the mains. Indicates the battery is working. Indicates charging status Indicates the bypass circuit is working. Indicates the ECO mode is enabled. Indicates the AC to DC circuit is working.

  • Page 18: Lcd Display Wordings Index

    3.4 LCD display wordings index Abbreviation Display content Meaning Enable Disable Escape High loss Low loss Active open Active close Estimated autonomy time Running autonomy time Shutdown Battery Low Over Load Over input current Battery No Connect Over Charge Site wiring fault Temperature Charger Battery Fault...

  • Page 19: Ups Setting

    Bypass frequency unstable Battery Replace EEPROM error 3.5 UPS Setting There are three parameters to set up the Parameter 1 Parameter 2 UPS. Parameter 1: It is for program alternatives. Refer to below table. Parameter 2 is the setting options or values for each program.
  • Page 20 03: Output frequency setting Interface Setting Parameter 2: Output frequency setting. You may set the initial frequency on battery mode: BAT 50: presents output frequency is 50Hz BAT 60: presents output frequency is 60Hz If converter mode is enabled, you may choose the following output frequency: CF 50: presents output frequency is 50Hz CF 60: presents output frequency is 60Hz...
  • Page 21 06: Bypass enable/disable when UPS is off Interface Setting Parameter 2: Enable or disable Bypass function. You may choose the following two options: ENA: Bypass enable DIS: Bypass disable (Default) 07: Bypass voltage range setting Interface Setting Parameter 2: Set the acceptable high voltage point and acceptable low voltage point for Bypass mode by pressing the Down key or Up key.
  • Page 22 09: Programmable outlets enable/disable Interface Setting Parameter 2: Enable or disable programmable outlets. ENA: Programmable outlets enable DIS: Programmable outlets disable (Default) 10: Programmable outlets setting Interface Setting Parameter 2: Set up backup time limits for programmable outlets. 0-999: setting the backup time limits in minutes from 0-999 for programmable outlets which connect to non-critical devices on battery mode.
  • Page 23 13: Maximum charger current setting Interface Setting Parameter 2: Set up the charger maximum current. For low voltage model with 24/36/48VDC 1/2/4/6/8: setting the charger maximum current 1/2/4/6/8 in Ampere. (Default: 2A) For high voltage model with 24/36/48VDC 1/2/4/6/8/10/12: setting the charger maximum current 1/2/4/6/8/10/12 in Ampere.
  • Page 24 15: Charger float voltage setting Interface Setting Parameter 2: Set up the charger float voltage. 2.20-2.33: setting the charger float voltage from 2.20 V/cell to 2.33V/cell. (Default: 2.28V/cell) 16: EPO logic setting Interface Setting Parameter 2: Set up the EPO function control logic.
  • Page 25 19: Acceptable input voltage range setting Interface Setting Parameter 2: Set the acceptable high voltage point and acceptable low voltage point for input voltage range by pressing the Down key or Up key. HLS: Input high voltage point 2. (Default: 300Vac) For 100/110/115/120/127 VAC models: 140/145/150: setting the high voltage point in parameter 2.

  • Page 26: Operating Mode Description

    3.6 Operating Mode Description Operating Description LCD display mode When the input voltage is within acceptable range, UPS will provide Online pure and stable AC power to mode output. The UPS will also charge the battery at online mode. Energy saving mode: When the input voltage is within voltage regulation range, UPS will ECO mode...

  • Page 27: Faults Reference Code

    3.7 Faults Reference Code Fault Fault Fault event Icon Fault event Icon code code Bus start fail Battery voltage too high Bus over Battery voltage too Charger output Bus under short Inverter soft start fail Over temperature Inverter voltage high Overload Inverter voltage Low Charger failure...
  • Page 28 Icon Warning (flashing) Code Alarm Sounding every 2 seconds (At this time, UPS is off to remind Battery fault users something wrong with battery) Out of bypass Sounding every 2 seconds voltage range Bypass frequency Sounding every 2 seconds unstable Sounding every 2 seconds Battery replacement Sounding every 2 seconds...

  • Page 29: Troubleshooting

    4.0 TROUBLESHOOTING If the UPS system does not operate correctly, please solve the problem by using the table below. Symptom Possible cause Remedy Check if input power The AC input power is cord firmly connected not connected well. No indication and alarm to the mains.
  • Page 30 Symptom Possible cause Remedy Remove excess loads UPS is overload from output. UPS is overloaded. Devices connected Remove to the UPS are The icons excess loads fed directly by the from the warning code flash electrical network via output. on LCD display. Alarm is the Bypass.
  • Page 31 Symptom Possible cause Remedy Charge the batteries for at least 5 hours and Batteries are not then check fully charged capacity. If the Battery backup time is problem still shorter than nominal persists, contact value. Powervar Technical Support. Contact your Batteries defect dealer to replace the battery.

  • Page 32: Storage And Maintenance

    5.0 STORAGE AND MAINTENANCE Operation The UPS system contains no user-serviceable parts. If the battery service life (3~5 years at 25°C ambient temperature) has been exceeded, the batteries must be replaced. In this case, please contact your dealer. Be sure to deliver the spent battery to a recycling facility or ship it to your dealer in the replacement battery packing material.

  • Page 33: Specifications

    6.0 SPECIFICATIONS Tower Models MODEL ACDEF2000-11T ACDEF3000-11T CAPACITY* 2000VA/1850W 3000V A / 2740W INPUT 160VAC/140VAC/120VAC/110VAC ± 5 % or Low Line 80VAC/70VAC/60VAC/55VAC ± 5 % Transfer (Based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0) Low Line Voltage...
  • Page 34 MODEL ACDEF2000-11T ACDEF3000-11T AC Mode to Batt. Zero Transfer Mode Time Inverter to < 4 ms Bypass Waveform (Batt. Mode) Pure Sinewave EFFICIENCY ≧91% @ full charged battery AC Mode ≧96% @ full charged battery ECO Mode ≧90% Battery Mode BATTERY Battery Type 12V/7AH...
  • Page 35 Output Power Rating Table (only for 100/110/115/120/127 VAC system) Model name Input rating Output rating 100/110/115/120/125/127Vac, 50/60Hz, 1Ø 2000VA/1930W (@127Vac input) ; 110-127Vac, 2000VA/1930W (@125Vac input) ; 50/60Hz, 16A, 2000VA/1850W (@120Vac input) ; 1Ø 2000VA/1740W (@115Vac input) ; 2000VA/1640W (@110Vac input) ; 2000VA/1500W (@100Vac input) 100/110/115/120/125/127Vac, 50/60Hz, 1Ø...

  • Page 36: Warranty

    There are no other warranties, expressed or implied, of merchantability, fitness for a particular purpose, performance, condition, capacity or otherwise. AMETEK Powervar is not liable for incidental or consequential damages, monetary loss, loss of sales, or loss of business resulting from the failure or malfunction of the product.
  • Page 37 A01-00159 Rev B...
  • Page 38 Swindon, Wilts SN2 8UU UK A01-00159 Rev B – 06/2021 - © 2021 (P) +44 1793 553980 AMETEK Powervar, Inc. (F) +44 1793 535350 Mexico Address: Camino a la Montana No. 178-101 & PB4 Fracc.
