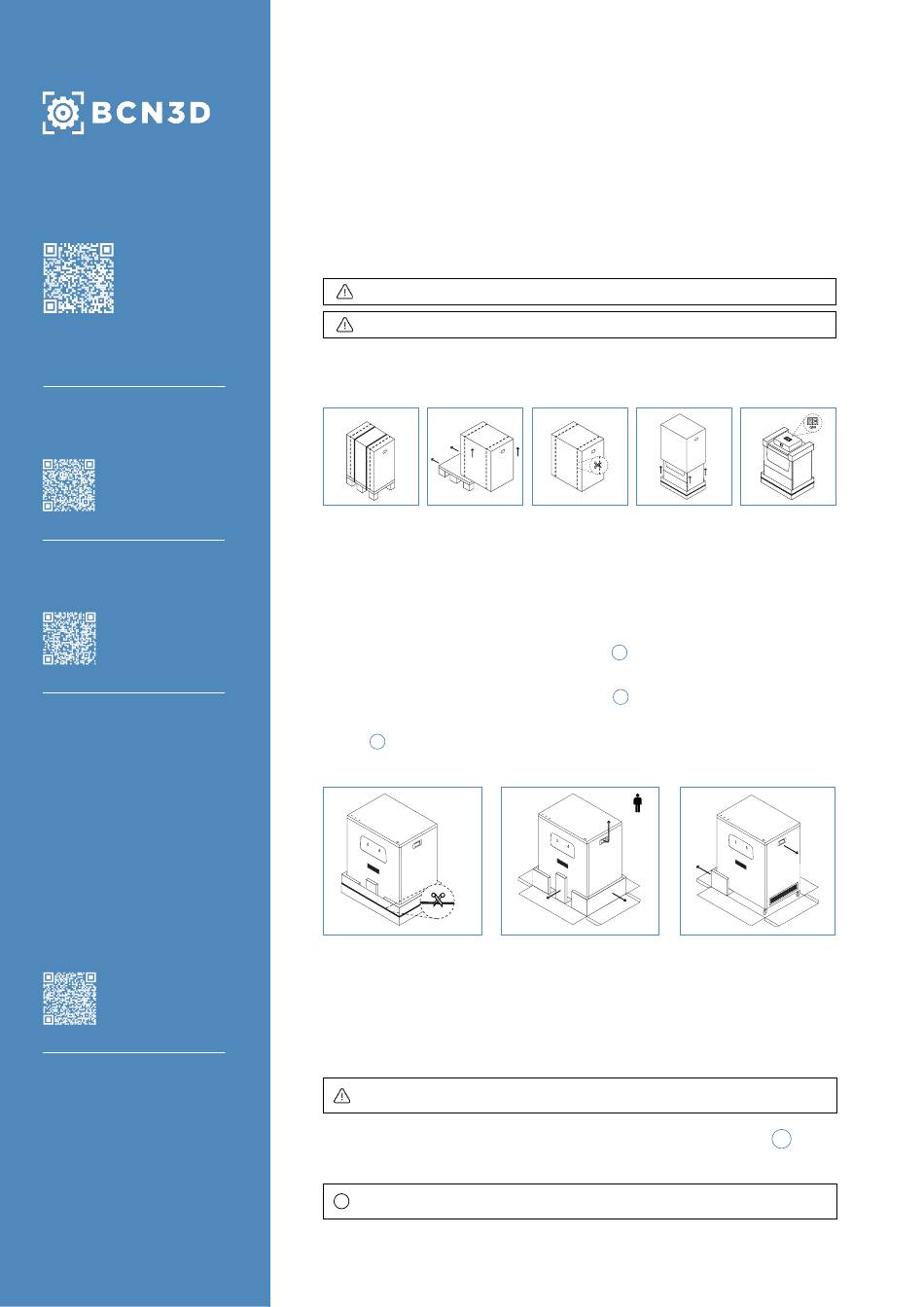

Quick Start Guide
Smart Cabinet
We would like to thank all users for trusting BCN3D, for helping us to reach our
dreams and to create a better product every day.
Unboxing
Retain packaging and pallet for warranty service.
The device is heavy and it is recommended that this step is performed by two people.
The initial indications of the unboxing are indicated on the box itself, with the
following drawings:
Remove the Remove the
red pallet pallet
straps
Once the upper box is removed, follow these instructions:
1. Remove the top protective foams.
2. Cut the white strap around the bottom box
way down.
3. Lift the unit using the side handle while another person removes this side's
bottom foam and the center bottom foams
on the ground.
4. Carefully pull the unit using the handle. Retire the bottom foam from the other
side .
C
5. Keep pulling the unit to its final position.
A
Full system setup
1. Unload any material loaded on the printer and turn it off.
2. Unplug the power cable and keep it to use it later.
3. Carefully place the BCN3D printer on top of the Smart Cabinet seated in the
metal corners.
The printer is heavy and therefore this step needs to be performed by two people. Make
sure that the Smart Cabinet where the printer is being installed, is close enough.
4. On the back, take out the teflon tubes from the FRS quick connector
5. Take the correct set of extension teflon tubes from the upper foam.
There are two sets, one suitable for Epsilon W50 and another for Epsilon W27/Sigma D25. Use
i
the ones that adapt to your printer.
Cut the white Lift the upper
box straps box
and pull the plastic bag all the
A
. Gently release the device to rest
B
x2
B
Open the
plastic bag
and read the
documentation
C
.
D.1
