Summary of Contents for Resol FlowSol B HE WMZ
- Page 1 B HE WMZ FlowSol ® Manual for the specialised craftsman Installation Operation Commissioning Thank you for buying this RESOL product. Manual Please read this manual carefully to get the best performance from this unit. Please keep this manual carefully. www.resol.com...
-
Page 2: Table Of Contents
Disposal CE mark. The Declaration of Conformity is available upon request, please contact • Dispose of the packaging in an environmentally RESOL. sound manner. • At the end of its working life, the product must not Target group be disposed of as urban waste. Old appliances must... -
Page 3: Overview

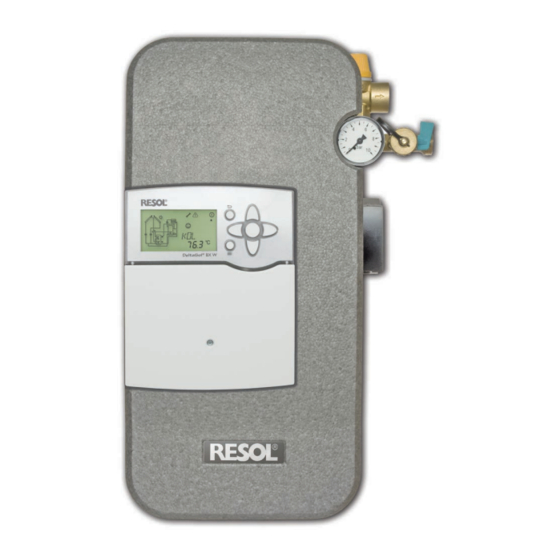

FlowSol B HE WMZ ® Technical data Overview Circulating pump: Wilo PARA ST15-130/7-50/ iPWM2-12 Maximum pressure: 6 bar • With integrated heat quantity measure- (power consumption of the pump: 25 W) Medium: Water with max. 50 % glycol ment via VFS Grundfos Direct Sensor Safety valve: 6 bar Dimensions: •... -
Page 4: Mounting The Station
Note Mounting the station All connections are already tightened such that they usually do not have to be tightened again. However, during commissioning of the system all connections have to be checked for leaks (pressure test). 10 Wall mounting bracket 11 Back half of the insulation 12 Front half of the insulation 13 Hinged controller panel... -
Page 5: Ball Valve Positions
Before flushing the system After flushing the system Ball valve positions Î Disconnect the expansion vessel from the solar Î Connect the expansion vessel to the solar ther- WARNING! Scald danger! Damage by thermal system. mal system. overpressure! Î Close the drain valve (3) of the pump station When the ball valve is closed, too while the filling pump is running. -
Page 6: Flow Rate Measurement
Flow rate measurement Safety devices The VFS Grundfos Direct Sensor is used for meas- The pump station is equipped with a diaphragm safety uring the flow rate and the temperature. In order to valve which corresponds to the relevant directives ensure faultless operation of the sensor, the system and regulations. -
Page 7: Accessories
See our full range of accessories on our website: Heat transfer fl uids DeltaSol ® www.resol.com 70001612 Hinged controller panel In our product portfolio, you will fi nd a range of heat transfer fl uids for different applications, available as Information about the pump readymix or concentrate. - Page 8 - they only represent use outside the copyright requires the approval of RESOL – Elektronische Rege- some examples. They can only be used at your own risk. No liability is assumed for lungen GmbH.
