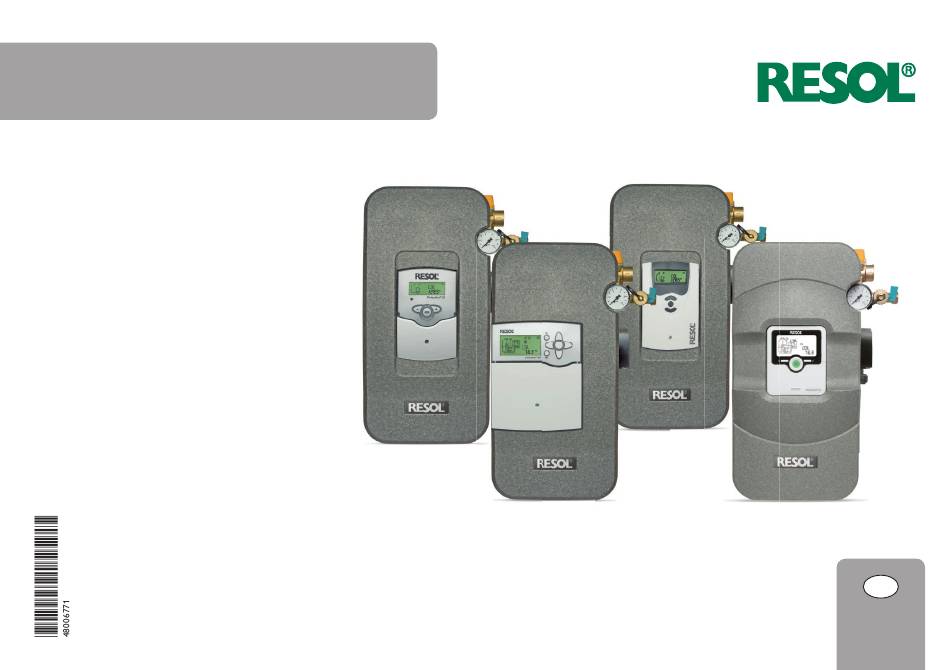

- Page 1 B / B HE ® Manual for the specialised craftsman Installation Operation Commissioning Thank you for buying this RESOL product. Manual Please read this manual carefully to get the best performance from this unit. Please keep this manual carefully. www.resol.com...
- Page 2 CE mark. The Declaration of Conformity is available upon • Dispose of old appliances in an environmentally sound manner. Upon request request, please contact RESOL. we will take back your old appliances bought from us and guarantee an environ- mentally sound disposal of the devices.

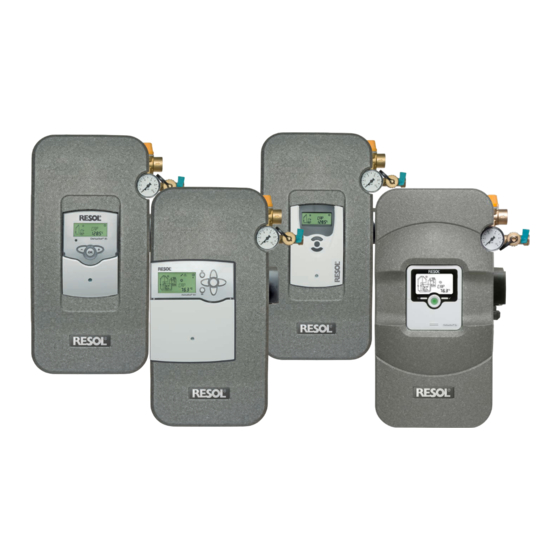

- Page 3 Overview • Pre-assembled twin-line pump station Pump characteristics / pressure loss characteristics • Safety assembly with connection for the diaphragm-type expansion FlowSol B standard pumps ® vessel, safety valve and pressure gauge • Fill and drain valves • Wall mounting bracket and mounting material FlowSol ®...
- Page 4 Mounting the station Flushing and fi lling the solar system WARNING! Scald danger! Pressure surge damage! If the medium enters strongly heated, empty collectors, pressure surges caused by evaporation can occur. Î In order to prevent the solar fl uid from vaporising in- side the collectors, do not fi ll or fl ush the system dur- ing times of strong irradiation! 10 Wall mounting bracket 11 Back half of the insulation 12 Front half of the insulation...
- Page 5 Before flushing the system Î Check the antifreeze ratio (not required if a Î Disconnect the expansion vessel from the solar thermal system. ready-mix is used). Î Connect the pressure hose of the filling and flushing station to the fill valve (5) of the pump station. Î...
- Page 6 The flowmeter measures and indicates the flow rate with a range of 1-13 l/min. Maintenance For the device to function faultlessly, the system must be flushed and free of grit. In the case of maintenance (such as a replacement of the pump) proceed as follows: Î...
- Page 7 1.5 m hose for connection to the safety valve of the 12c or 70001516 Front half of the insulation DeltaSol SL series (not shown) ® FlowSol B / B HE pump station. ® 70001612 Hinged controller panel See our full range of accessories on our website: www.resol.com...
- Page 8 This mounting- and operation manual including all parts is copyrighted. Another some examples. They can only be used at your own risk. No liability is assumed for use outside the copyright requires the approval of RESOL – Elektronische Rege- incorrect, incomplete or false information and / or the resulting damages.
