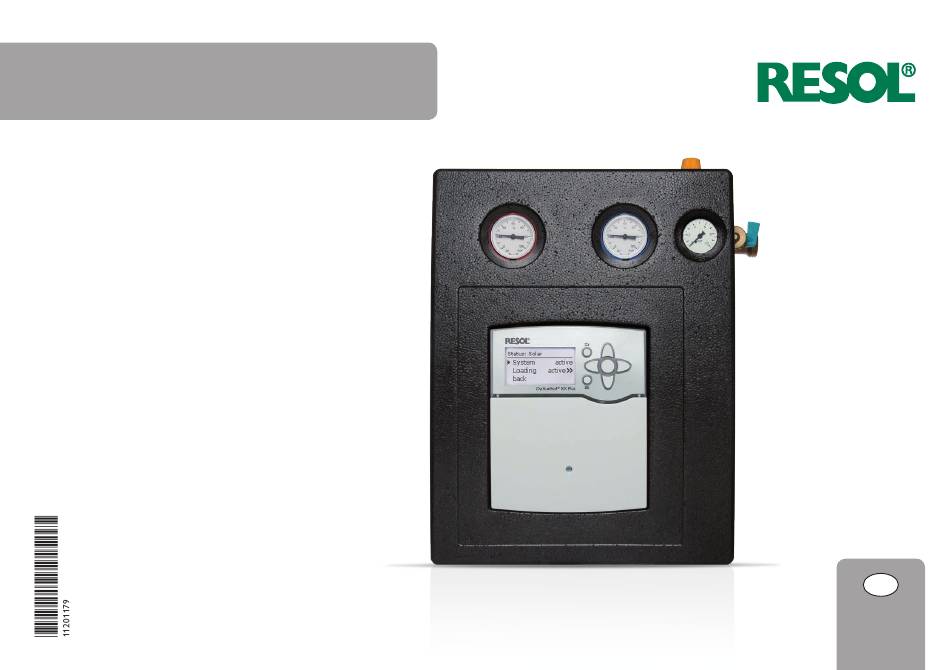

- Page 1 FlowSol ® Manual for the specialised craftsman Installation Operation Commissioning Thank you for buying this RESOL product. Manual Please read this manual carefully to get the best performance from this unit. www.resol.com Please keep this manual carefully.
-
Page 2: Table Of Contents
CE mark. The Declaration of Conformity is available upon • Dispose of old appliances in an environmentally sound manner. Upon request we request, please contact RESOL. will take back your old appliances bought from us and guarantee an environmen- tally sound disposal of the devices. -
Page 3: Overview
Overview Technical data Circulating pump: Wilo Stratos PARA 15/1-9 (ErP power consumption of the • Pre-assembled twin-line pump station pump 45 W) • Integrated DeltaSol BX Plus controller (optional) ® Safety valve: 6 bar • Energy-saving high-efficiency pump Pressure gauge: 0 … 10 bar Flowmeter: 5 …... -
Page 4: Mounting The Station
Mounting the station Note All connections are already tightened such that they usually do not have to be tightened again. However, during commissioning of the system all connections have to be checked for leaks (pressure test). Flushing and filling the solar system WARNING! Scald danger! Pressure surge damage! If the medium enters strongly heated, empty collectors, pressure surges caused by evaporation can occur. -
Page 5: Ball Valve Positions
Before flushing the system Î Check the antifreeze ratio (not required if a ready- Î Disconnect the expansion vessel from the solar thermal system. mix is used). Î Connect the pressure hose of the filling and flushing station to the fill valve (5) of the pump station. Î... -
Page 6: Flowmeter
Flowmeter Maintenance The flowmeter measures and indicates the flow rate with a range of 5 - 35 l/min. In the case of maintenance (such as a replacement of the pump) proceed as follows: For the device to function faultlessly, the system must be flushed and free of grit. Î... -
Page 7: Accessories
11201101 Back half of the insulation XL See our full range of accessories on our website: www. 11201102 Front half of the insulation XL resol.com 11201108 Wall mounting bracket XL (not shown) Information about the pump 11201117 Controller panel (not shown) Depending on the version, the station is equipped with different pumps. - Page 8 This mounting- and operation manual including all parts is copyrighted. Another some examples. They can only be used at your own risk. No liability is assumed for use outside the copyright requires the approval of RESOL – Elektronische Rege- incorrect, incomplete or false information and / or the resulting damages.
