Summary of Contents for BCM HPM-621UA

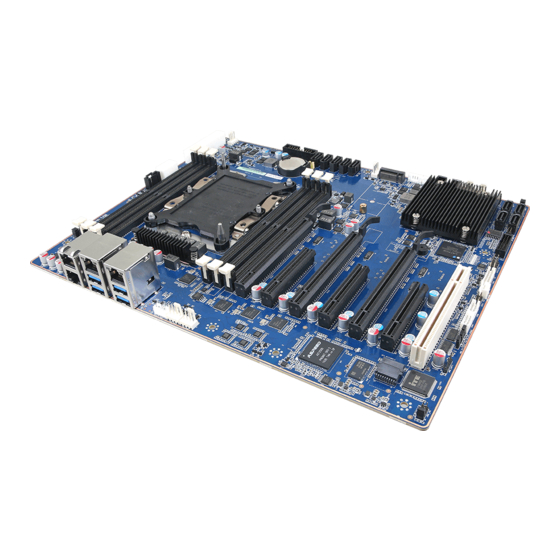

- Page 1 HPM-621UA Supports single 2nd Gen. Intel® Xeon® Scalable Processors / Intel® Xeon® Scalable Processors up to 150W TDP User’s Manual Ed –03 March 2021 Part No: E2047A2S000R...
- Page 2 We assume no responsibility or liability for the use of the described product(s), conveys no license or title under any patent, copyright, or masks work rights to these products, and makes no representations or warranties that 2 HPM-621UA User’s Manual...
- Page 3 For the most frequently asked questions, you can easily find answers in your product documentation. These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. HPM-621UA User’s Manual...
- Page 4 A product returned without proof of the purchase date is not eligible for warranty service. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer. 4 HPM-621UA User’s Manual...
-
Page 5: Table Of Contents
Serial General Purpose I/O connector (JSGPIO2) ..............31 2.3.22 ATX 12V power connector (ATX12V1) ..................31 2.3.23 ATX power connector (ATXPWR1) ................... 32 2.3.24 Power supply PMBus connector (PMBUS1) ................32 2.3.25 USB3.2 Gen1 connector (JUSB1) ..................... 33 2.3.26 USB2.0 connector (JUSB2) ....................... 33 HPM-621UA User’s Manual... - Page 6 Trusted Computing ........................ 55 3.6.2.10 ACPI Settings ........................55 3.6.2.11 Serial Port Console Redirection .................... 56 3.6.2.11.1 Legacy Console Redirection Settings ................... 57 3.6.2.12 Super IO Configuration ......................58 3.6.2.12.1 Serial Port 1 Configuration ....................58 6 HPM-621UA User’s Manual...
- Page 7 3.6.6.5 Restore the User Default Values ................... 73 4. Drivers Installation....................... 74 Install Chipset Driver ....................75 Install VGA Driver ....................76 Install Ethernet Driver ....................77 Install VROC Driver ....................78 5. Mechanical Drawing ....................80 HPM-621UA User’s Manual...
-
Page 8: Getting Started
1.2 Packing List Before you begin installing your single board, please make sure that the following materials have been shipped: 1 x HPM-621UA motherboard 1 x I/O Shield 8 HPM-621UA User’s Manual... -
Page 9: Document Amendment History
User’s Manual 1.3 Document Amendment History Revision Date Comment March 2021 Initial Release HPM-621UA User’s Manual... -
Page 10: Manual Objectives
We strongly recommend that you study this manual carefully before attempting to set up HPM-621UA or change the standard configurations. Whilst all the necessary information is available in this manual we would recommend that unless you are confident, you contact your supplier for guidance. -
Page 11: System Specifications
Slot 5, PCIe 3.0 x16 (x16 will switch to x8 automatically when Slot 4 is used) Slot 6, PCIe 3.0 x8 Slot 7, PCIe 3.0 x16 (Slot 7 is the slot closest to CPU, x16 will switch to x8 automatically when Slot 6 is used) HPM-621UA User’s Manual 11... - Page 12 No Connection 2 x USB 3.2 Gen1 ports (1 x USB 3.2 Gen1 2.0mm pitch Box Header, Pinrex 52X-8020GB52 or equivalent) Pin definition : USB 3.1 2 x 4 Pin CPU Fan Header (4 Pin PWM) CPU/System 12 HPM-621UA User’s Manual...
- Page 13 40°C 95% non-condensing Humidity Size (L x W) (Please consult product engineers for the ATX form factor production feasibility if 12” x 9.6” (304.8mm x 243.84mm) the size is larger than 410x360mm or smaller than 80x70mm) Weight HPM-621UA User’s Manual 13...
- Page 14 3 Package weight : 5Kg 4 Test drawing Windows : Windows 10 IOT Enterprise, Windows server 2016, Windows server 2019 OS Information Linux : Ubuntu 16.04 and 18.04 Specifications are subject to change without notice. Note: 14 HPM-621UA User’s Manual...
-
Page 15: Architecture Overview-Block Diagram
User’s Manual 1.6 Architecture Overview—Block Diagram The following block diagram shows the architecture and main components of HPM-621UA. HPM-621UA User’s Manual 15... -
Page 16: Hardware Configuration
HPM-621UA User’s Manual 2. Hardware Configuration 16 HPM-621UA User’s Manual... -
Page 17: Product Overview
User’s Manual 2.1 Product Overview HPM-621UA User’s Manual 17... -
Page 18: Jumper And Connector List
Present or not JCPLD_JTAG_EN1 CPLD JTAG setting 2 x 1 header, pitch 2.00mm CPLD DEBUG header 2 x 1 header, pitch 2.00mm JCPLD_DEBUG1 Connectors Function Label Note System fan connector 1 4 x 1 wafer, pitch 2.54mm SYS_FAN1 18 HPM-621UA User’s Manual... - Page 19 4 x 1 header, pitch 2.54mm JBMC_UART1 CASE OPEN connector 2 x 1 wafer, pitch 2.50mm JCASE_OPEN1 ATX 12V power connector 4 x 2 wafer, pitch 4.20mm ATX12V1 ATX power connector 12 x 2 wafer, pitch 4.20mm ATXPWR1 HPM-621UA User’s Manual 19...
- Page 20 5 x 1 wafer, pitch 2.00mm HDD_SER1 connector M.2 M-Key PCIe 3.0 x4 NVMe SSD NGFF1 CPU1 socket CPU1 VGA connector 8 x 2 wafer, pitch 2.00mm JVGA1 CPLD JTAG header 5 x 2 header, pitch 2.54mm JCPLD_JTAG1 20 HPM-621UA User’s Manual...
-
Page 21: Setting Jumpers & Connectors
User’s Manual 2.3 Setting Jumpers & Connectors 2.3.1 ME Firmware Recovery (JME_RCVR1) Normal* ME FORCE UPDATE * Default 2.3.2 Flash Descriptor Security override (JME1) Override* Normal * Default HPM-621UA User’s Manual 21... -
Page 22: Bmc Strap Setting (Jbmc_Db1)
BMC strap setting (JBMC_DB1) ENABLE PASS-THRU AT POWER ON ENABLE DEDICATED VGA BIOS ROM BMC SOC Level reset BMC Chip Level reset * Default 2.3.4 Clear CMOS (JCMOS1) Normal RTC RESET* Clear RTC REGISTERS * Default 22 HPM-621UA User’s Manual... -
Page 23: Cpld Strap Setting For Bmc Present Or Not (Jbmc_Pst1)
User’s Manual 2.3.5 CPLD strap setting for BMC Present or not (JBMC_PST1) Non BMC* BMC Present * Default 2.3.6 CPLD JTAG setting (JCPLD_JTAG_EN1) Normal mode* Force power on * Default HPM-621UA User’s Manual 23... -
Page 24: Cpld Debug Header (Jcpld_Debug1)
HPM-621UA User’s Manual 2.3.7 CPLD DEBUG header (JCPLD_DEBUG1) ESPI mode LPC mode* * Default 2.3.8 LPC connector (JLPC1) Signal PIN PIN Signal LPC_AD0 +3.3V LPC_AD1 RST_PLTRST_B_N LPC_AD2 LPC_FRAME# LPC_AD3 CLK_24M_LPC2_80P LPC_SERIRQ 24 HPM-621UA User’s Manual... -
Page 25: Cpld Jtag Header (Jcpld_Jtag1)
User’s Manual 2.3.9 CPLD JTAG header (JCPLD_JTAG1) Signal PIN PIN Signal JTAG_TCK_CONN CPLD_JTAG_MUX_CTL JTAG_TDO_CONN +3.3VSB JTAG_TMS_CONN JTAG_TDI_CONN 2.3.10 System fan connector 1 (SYS_FAN1) Signal SYS_PWM1 FAN_TACH2 +12V HPM-621UA User’s Manual 25... -
Page 26: System Fan Connector 2 (Sys_Fan2)
HPM-621UA User’s Manual 2.3.11 System fan connector 2 (SYS_FAN2) Signal SYS_PWM2 FAN_TACH3 +12V 2.3.12 System fan connector 3 (SYS_FAN3) Signal SYS_PWM3 FAN_TACH4 +12V 26 HPM-621UA User’s Manual... -
Page 27: System Fan Connector 4 (Sys_Fan4)
User’s Manual 2.3.13 System fan connector 4 (SYS_FAN4) Signal SYS_PWM4 FAN_TACH6 +12V 2.3.14 System fan connector 5 (SYS_FAN5) Signal SYS_PWM5 FAN_TACH1 +12V HPM-621UA User’s Manual 27... -
Page 28: System Fan Connector 6 (Sys_Fan6)
HPM-621UA User’s Manual 2.3.15 System fan connector 6 (SYS_FAN6) Signal SYS_PWM6 FAN_TACH7 +12V 2.3.16 CPU fan connector (CPU1_FAN1) Signal +12V FAN_TACH0 CPU0_PWM0 28 HPM-621UA User’s Manual... -
Page 29: Hdd Fan Connector (Hdd_Fan1)
User’s Manual 2.3.17 HDD fan connector (HDD_FAN1) Signal +12V FAN_TACH5 HDD_PWM1 2.3.18 SPI connector (JSPI1) Signal PIN PIN Signal +3.3VSB SPI_BIOS_CS0_N_R SPI_BIOS_FLASH_CLK SPI_BIOS_MISO_FLASH SPI_BIOS_CS0_N_R SPI_PCH_FLASH_IO3 SPI_PCH_FLASH_IO2 HPM-621UA User’s Manual 29... -
Page 30: Serial Port 1 Connector (Jcom1)
Serial port 1 connector (JCOM1) Signal PIN PIN Signal COM_DCD#1 COM_RXD1 COM_TXD1 COM_DTR#1 COM_DSR#1 COM_RTS#1 COM_CTS#1 COM_RI#1 2.3.20 Serial port 2 connector (JCOM2) Signal PIN PIN Signal COM_DCD#2 COM_RXD2 COM_TXD2 COM_DTR#2 COM_DSR#2 COM_RTS#2 COM_CTS#2 COM_DCD#2 COM_RXD2 30 HPM-621UA User’s Manual... -
Page 31: Serial General Purpose I/O Connector (Jsgpio2)
User’s Manual 2.3.21 Serial General Purpose I/O connector (JSGPIO2) Signal PIN PIN Signal SGPIO_SATA_DATA0_R SGPIO_SATA_LOAD_R SGPIO_SATA_DATA1_R SGPIO_SATA_CLOCK_R 2.3.22 ATX 12V power connector (ATX12V1) Signal Signal +12V +12V +12V +12V HPM-621UA User’s Manual 31... -
Page 32: Atx Power Connector (Atxpwr1)
HPM-621UA User’s Manual 2.3.23 ATX power connector (ATXPWR1) Signal PIN PIN Signal +3.3V +3.3V +3.3V -12V 16 FM_PS_EN_PSU_N PWRGD_PS_PWROK_R +V5SB +12V +12V +3.3V 2.3.24 Power supply PMBus connector (PMBUS1) Signal PSU_z_SCL PSU_z_SDA PSU1_ALERT_z_N 32 HPM-621UA User’s Manual... -
Page 33: Usb3.2 Gen1 Connector (Jusb1)
USB3.2 Gen1 connector (JUSB1) Signal PIN PIN Signal +5VSB +5VSB USB3_z_RN5 USB3_z_RN6 USB3_z_RP5 USB3_z_RP6 USB3_z_TN5 USB3_z_TN6 USB3_z_TP5 USB3_z_TP6 USB3_z_PN5 USB3_z_PN6 USB3_z_PP5 USB3_z_PP6 USB_a_OC2# 2.3.26 USB2.0 connector (JUSB2) Signal PIN PIN Signal USB3_z_PP8 USB3_z_PP7 USB3_z_PN8 USB3_z_PN7 +5VSB +5VSB HPM-621UA User’s Manual 33... -
Page 34: Front Panel Connector (Jfp1)
Front Panel connector (JFP1) Signal PIN PIN Signal LAN_LED_ACT# +3.3VSB FP_UID_BTN_N_R 15 FRONT_UID_LED_P SBPWRLED_P 13 FRONT_UID_LED_N LAN1_LED_ACT_n STATUS_LED_N LAN1_FRONT_LED_ACT_p 10 STATUS_LED_P FP_PWR_BTN_N_R FP_RST_BTN_N PWRLED_N HDD_LED_N +3.3VSB HDD_LED_P 2.3.28 Inlet Thermal Sensors connector (INLET_SER1) Signal SMB1_TEMPSENSOR_STBY_LVC3_SCL SMB1_TEMPSENSOR_STBY_LVC3_SDA +3.3VSB 34 HPM-621UA User’s Manual... -
Page 35: Outlet Thermal Sensors Connector (Outlet_Ser1)
User’s Manual 2.3.29 Outlet Thermal Sensors connector (OUTLET_SER1) Signal +3.3VSB SMB_TEMPSENSOR_STBY_LVC3_SDA SMB_TEMPSENSOR_STBY_LVC3_SCL 2.3.30 HDD Backplane thermal Sensors connector (HDD_SER1) Signal SSD_LED_N SMB2_TEMPSENSOR_STBY_LVC3_SCL SMB2_TEMPSENSOR_STBY_LVC3_SDA +3.3VSB HPM-621UA User’s Manual 35... -
Page 36: Vga Connector (Jvga1)
HPM-621UA User’s Manual 2.3.31 VGA connector (JVGA1) Signal PIN PIN Signal CRT_z_RED CRT_z_GREEN CRT_z_BLUE CRT_DDC_z_DATA CRT_z_HSYNC CRT_z_VSYNC CRT_DDC_z_CLK 2.3.32 For BMC debug message read (JBMC_UART1) Signal UART5_TX UART5_RX +3.3VSB 36 HPM-621UA User’s Manual... -
Page 37: Case Open Connector (Jcase_Open1)
User’s Manual 2.3.33 CASE OPEN connector (JCASE_OPEN1) Signal FP_CHASSIS_INTRUSION HPM-621UA User’s Manual 37... -
Page 38: Bios Setup
HPM-621UA User’s Manual 3.BIOS Setup 38 HPM-621UA User’s Manual... -
Page 39: Introduction
If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. HPM-621UA User’s Manual 39... -
Page 40: Using Setup
Note: Some of the navigation keys differ from one screen to another. To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus. 40 HPM-621UA User’s Manual... -
Page 41: Getting Help
BIOS Vendor and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. HPM-621UA User’s Manual 41... -
Page 42: Bios Setup
<Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. 42 HPM-621UA User’s Manual... -
Page 43: System Language
Note: The BIOS setup screens shown in this chapter are for reference purposes only, and may not exactly match what you see on your screen. 3.6.2 Advanced Menu This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. HPM-621UA User’s Manual 43... -
Page 44: Processor Configuration
Enables Hyper Threading (Software Method to Hyper-Threading (ALL) Enable Enable/Disable Logical Processor threads. Disable[Default] Enables the Vanderpool Technology, takes effect Intel Virtualization Technology Enable after reboot. Processor 0 Core Disable 0: Enable all cores. 3fff: Disable all cores. Bitmap 44 HPM-621UA User’s Manual... -
Page 45: Cpu P State Control
User’s Manual 3.6.2.1.1 CPU P State Control Item Option Description Enable[Default], Enable/Disable EIST (P-States) SpeedStep (Pstates) Disable Enable Enable/Disable processor Turbo Mode (requires Turbo Mode Disable[Default] EMTTM enabled too). 3.6.2.1.2 CPU C State Control HPM-621UA User’s Manual 45... -
Page 46: Package C State Control
Core C1E auto promotion Control. Takes effect after Enhanced Halt State (C1E) Enable[Default] reboot. 3.6.2.1.3 Package C State Control Item Option Description C0/C1 state C2 state C6(non Retention)state Package C State limit. Package C State C6(Retention)state No Limit Auto[Default], 46 HPM-621UA User’s Manual... -
Page 47: Memory Configuration
User’s Manual 3.6.2.2 Memory Configuration Item Option Description Auto[Default]/800/1000/1066/1200 /1333/1400/1600/1800/1866 /2000/2133/2200/2400/2600/2666 Maximum Memory Frequency /2800-OvrClk/2933/3000-OvrClk Selections in Mhz. Do not select Memory Frequency /3200-OvrClk/3400-OvrClk/3466-OvrClk Reserved. /3600-OvrClk/3733-OvrClk/3800-OvrClk /4000-OvrClk/4200-OvrClk/4266-OvrClk /4400-OvrClk HPM-621UA User’s Manual 47... -
Page 48: Memory Topology
HPM-621UA User’s Manual 3.6.2.2.1 Memory Topology 3.6.2.3 IIO Configuration 48 HPM-621UA User’s Manual... -
Page 49: Socket0 Configuration
Select PCIe port Bifurcation for selected slot(s). IOU0 (IIO PCIe Br1) Auto[Default] x8x8 Select PCIe port Bifurcation for selected slot(s). IOU1 (IIO PCIe Br2) Auto[Default] x8x8 Select PCIe port Bifurcation for selected slot(s). IOU2 (IIO PCIe Br3) Auto[Default] HPM-621UA User’s Manual 49... -
Page 50: Intel® Vt For Directed I/O (Vt-D)
3.6.2.3.2 Intel® VT for Directed I/O (VT-d) Item Options Description Enable/Disable Intel® Virtualization Technology for Enable[Default] Intel® VT for Directed I/O Directed I/O (VT-d) by reporting the I/O device Disable (VT-d) assignment to VMM through DMAR ACPI Tables. 3.6.2.4 PCI Express Configuration 50 HPM-621UA User’s Manual... -
Page 51: Ssata Configuration
Port Enable[Default] Disable[Default] Designates this port as Hot Pluggable. Hot Plug Enable Hard Disk Drive Identify the SATA port is connected to Solid State sSATA Device Type Solid State Drive[Default] Drive or Hard Disk Drive. HPM-621UA User’s Manual 51... -
Page 52: Sata Configuration
Otherwise all drives spin up at boot. Hard Disk Drive[Default] Identify the SATA port is connected to Solid State SATA Device Type Solid State Drive Drive or Hard Disk Drive. 52 HPM-621UA User’s Manual... -
Page 53: Sata Mode Options
User’s Manual 3.6.2.6.1 SATA Mode options Item Option Description Disable Enable: HDD password unlock is enabled in the SATA HDD Unlock Enable[Default] Disable If enabled LED/SGPIO hardware is attached. SATA Led locate Enable[Default] 3.6.2.7 Miscellaneous Configuration HPM-621UA User’s Manual 53... -
Page 54: Server Me Configuration
Onboard Select active Video type. Active Video Offboard Enable or disable System wake on alarm Disable[Default], event. When enabled, System will wake on Wake On RTC Support Enable the day ::hr::min::sec specified. 3.6.2.8 Server ME Configuration 54 HPM-621UA User’s Manual... -
Page 55: Trusted Computing
3.6.2.9 Trusted Computing Item Options Description Enables or Disables BIOS support for security device. Disable, O.S. will not show Security Device. TCG EFI protocol TPM Support Enable[Default] and INT1A interface will not be available. 3.6.2.10 ACPI Settings HPM-621UA User’s Manual 55... -
Page 56: Serial Port Console Redirection
Enables or Disables System ability to Hibernate Disabled[Default] (OS/S4 Sleep State). This option may not be effective Enable Hibernation Enabled with some operating systems. 3.6.2.11 Serial Port Console Redirection Item Options Description Disabled[Default], Console Redirection Enable or Disable. Console Redirection Enabled 56 HPM-621UA User’s Manual... -
Page 57: Legacy Console Redirection Settings
Console Redirection is disabled before booting to Always Enable[Default] legacy OS. When Always Enable is selected, Redirect After POST BootLoader then Legacy Console Redirection is enabled for legacy OS. Default setting for this option is set to Always Enable. HPM-621UA User’s Manual 57... -
Page 58: Super Io Configuration
HPM-621UA User’s Manual 3.6.2.12 Super IO Configuration Item Description Set Parameters of Serial Port 1 (COMA). Serial Port 1 Configuration Set Parameters of Serial Port 2 (COMB). Serial Port 2 Configuration 3.6.2.12.1 Serial Port 1 Configuration 58 HPM-621UA User’s Manual... -
Page 59: Serial Port 2 Configuration
User’s Manual Item Option Description Enabled[Default], Enable or Disable Serial Port (COM). Serial Port Disabled 3.6.2.12.2 Serial Port 2 Configuration Item Option Description Enabled[Default], Enable or Disable Serial Port (COM). Serial Port Disabled HPM-621UA User’s Manual 59... -
Page 60: Usb Configuration
Mass storage device emulation type. ‘AUTO’ Floppy enumerates devices according to their media Forced FDD format. Optical drives are emulated as Mass Storage Devices Hard Disk ‘CDROM’, drives with no media will be CD-ROM emulated according to a drive type. 60 HPM-621UA User’s Manual... -
Page 61: Nvme Configuration
User’s Manual 3.6.2.14 NVMe Configuration 3.6.2.15 Option ROM Dispatch Policy Item Options Description Onboard Device has: Enabled[Default], UEFI [X] Onboard Mass Storage Controller Disabled Legacy [X] HPM-621UA User’s Manual 61... - Page 62 Enable or Disable Option ROM execution Enabled[Default], Slot#5 Empty Disabled for selected Slot. Enable or Disable Option ROM execution Enabled[Default], Slot#6 Empty Disabled for selected Slot. Enable or Disable Option ROM execution Enabled[Default], Slot#7 Empty Disabled for selected Slot. 62 HPM-621UA User’s Manual...
-
Page 63: Network Stack Configuration
User’s Manual 3.6.2.16 Network Stack Configuration Item Options Description Enabled Enable/Disable UEFI Network Stack. Network Stack Disabled[Default] 3.6.3 Server Mgmt HPM-621UA User’s Manual 63... -
Page 64: System Event Log
Configure how the system should respond if AC Power Last Power State is lost, Reset not required as selected Power policy will Power Control Policy Power Restore Unspecified[Default] be set in BMC when policy is saved. 3.6.3.1 System Event Log 64 HPM-621UA User’s Manual... -
Page 65: Bmc Self Test Log
Bmc self test log Item Option Description Yes, On every reset[Default] Erase Log Options. Erase Log Clear Log[Default] Select the action to be taken when log is full. When log is full Do not log any more HPM-621UA User’s Manual 65... -
Page 66: Bmc Network Configuration
Enable or Disable LAN1 IPv6 Support. IPV6 Support Disabled Select to configure LAN channel parameters Unspecified[Default] statically or dynamically(by BIOS or BMC). Configuration Address Static Unspecified option will not modify any BMC source DynamicBmcDhcp network parameters during BIOS phase. 66 HPM-621UA User’s Manual... -
Page 67: Bmc User Settings
User’s Manual 3.6.3.4 BMC User Settings 3.6.4 Security HPM-621UA User’s Manual 67... -
Page 68: Secure Boot
Platform Key(PK) is enrolled and the System is in User Secure Boot Enable mode. The mode change requires platform reset. Secure Boot mode selector: Standard/Custom. In Standard Custom mode Secure Boot Variables can be configured Secure Boot Mode Custom[Default] without authentication. 68 HPM-621UA User’s Manual... -
Page 69: Key Management
User’s Manual 3.6.4.1.1 Key Management Item Option Description Install factory default Secure Boot keys after Disable[Default] the platform reset and while the System is in Factory Key Provision Enable Setup mode. HPM-621UA User’s Manual 69... -
Page 70: Boot
HPM-621UA User’s Manual 3.6.5 Boot Item Option Description Set the default timeout before system boot. A 1~ 65535 value of 65535 will disable the timeout Setup Prompt Timeout completely. 70 HPM-621UA User’s Manual... - Page 71 Bootup NumLock State Disabled[Default] Enables or disables Quiet Boot option Quiet Boot Enabled Disabled[Default] Enable/Disable CSM Support. CSM Support Enabled LEGACY Select boot mode LEGACY/UEFI. Boot mode select UEFI[Default] Set the system boot order. Boot Option #1/#2/#3/#4/#5 HPM-621UA User’s Manual 71...
-
Page 72: Save And Exit
HPM-621UA User’s Manual 3.6.6 Save and exit 3.6.6.1 Save Changes and Reset Reset the system after saving the changes. 72 HPM-621UA User’s Manual... -
Page 73: Discard Changes And Reset
BIOS setting. 3.6.6.4 Save the User Default Values Restore/Load Default values for all the setup options. 3.6.6.5 Restore the User Default Values Restore the User Defaults to all the setup options. HPM-621UA User’s Manual 73... -
Page 74: Drivers Installation
HPM-621UA User’s Manual 4. Drivers Installation Note: Installation procedures and screen shots in this section are for your reference and may not be exactly the same as shown on your screen. 74 HPM-621UA User’s Manual... -
Page 75: Install Chipset Driver
Windows 10 operation system. If the warning message appears while the installation process, click Continue to go on. Step 3. Click Install. Step1. Click Next. Step 4. Setup completed. Step 2. Click Accept. HPM-621UA User’s Manual 75... -
Page 76: Install Vga Driver
4.2 Install VGA Driver Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 3. Click Finish to complete setup. Step 1. Click Next to continue installation. Step 2. Click Install. 76 HPM-621UA User’s Manual... -
Page 77: Install Ethernet Driver
Windows 10 operation system. Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Install. Step 2. Click Next. Step 5. Click Finish to complete setup. HPM-621UA User’s Manual 77... -
Page 78: Install Vroc Driver
Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 3. Click Accept. Step 1. Click Next to continue installation. Step 4. Click Next. Step 2. Click Next. Step 5. Click Next. 78 HPM-621UA User’s Manual... - Page 79 User’s Manual Step 6. Click Install to complete setup. Step 7. Setup completed. HPM-621UA User’s Manual 79...
-
Page 80: Mechanical Drawing
HPM-621UA User’s Manual 5. Mechanical Drawing 80 HPM-621UA User’s Manual... - Page 81 User’s Manual Unit: mm HPM-621UA User’s Manual 81...
