KNX
25 633 03
Stand: Aug-07 3
Operation instructions
Facility-Panel
1. Safety warnings
Electrical equipment must be installed and fitted by qualified
electricians only and in strict observance of the relevant accident
prevention regulations. Cut out the circuit breaker before working
on the device – risk of electric shock. Do not touch the display with
sharp or pointed objects. The touch sensitive surface could be
damaged. Do not use sharp objects for cleaning. Do not use strong
cleaning agents, acids or organic solvents. Failure to observe the
instructions may cause damage to the device and result in fire and
other hazards. These instructions are part of the product and must
be left with the customer.

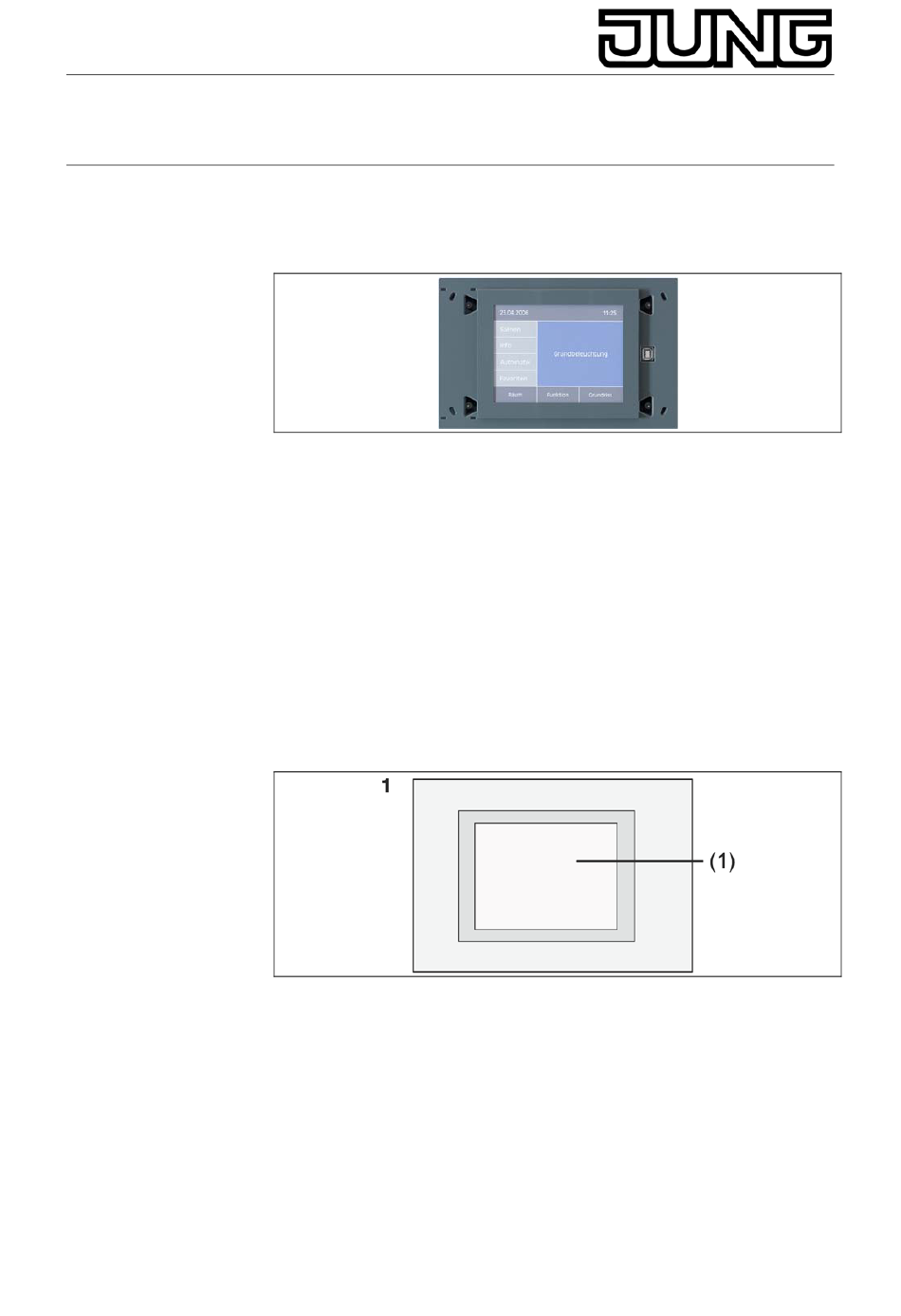

2. Technical overview
(1) Touch-Screen-surface
3. Function
3.1. System information
This device is a product of the KNX system and complies with KNX
directives. Technical knowledge obtained in KNX training is a necessary
prerequisite. The functionality of this device depends on the software.
Information on loadable software and attainable functionality as well as
the software itself can be obtained from the manufacturer's product
database. Planning, installation and startup of the device takes place via
KNX certified software. You will find the most current product database,
Facility-Panel
Ref.-no.: FP 701 CT

Advertisement

loading
Need help?

Need help?

Do you have a question about the FP 701 CT and is the answer not in the manual?

Questions and answers

Related Manuals for Jung FP 701 CT

Summary of Contents for Jung FP 701 CT

  • Page 1 Facility-Panel Ref.-no.: FP 701 CT Operation instructions Facility-Panel 1. Safety warnings Electrical equipment must be installed and fitted by qualified electricians only and in strict observance of the relevant accident prevention regulations. Cut out the circuit breaker before working on the device – risk of electric shock. Do not touch the display with sharp or pointed objects.

  • Page 2: Designated Use

    Facility-Panel Ref.-no.: FP 701 CT technical descriptions as well as conversion software and other tools on the Internet. 3.2. Designated use • Operating consumers and displaying the status of systems, e.g. lights on/off, dimming, blinds up/down, brightness values, temperatures etc.
  • Page 3 Facility-Panel Ref.-no.: FP 701 CT (3) Screen page (4) Control or display element (5) Scroll bar (6) Function keys Touch sensitive surface The display screen features a touch-sensitive surface, the so-called touch screen. The device is operated by touching the screen surface with the finger or by special touch screen pens (not included).
  • Page 4 Facility-Panel Ref.-no.: FP 701 CT Actuating functions or consumers The operation depends on the type of the respective function. The respective function must be selected and the function keys must be displayed. • Switching: Briefly actuate the respective function key.
  • Page 5 Facility-Panel Ref.-no.: FP 701 CT • Complete input and do not accept the settings: Press Cancel. Changing light scenes Light scene functions must have been created during programming of the device. • Open the Light scene page. • Select the desired light scene. The selected light scene is highlighted.
  • Page 6 Facility-Panel Ref.-no.: FP 701 CT Opening the service page Starting form the service page, pages for the screen and system settings as well as the cleaning function can be accessed. • Press the Service page function key. The Service page branches to the sub pages Display settings, System settings and Administrator.
  • Page 7 Facility-Panel Ref.-no.: FP 701 CT • Accept the entry by pressing Save. Invalid entries will not be accepted. Setting the time of day • Open the Service page. • Open System settings. • Select Time of day. • Enter the current time of day. Sequence: HH:MM.
  • Page 8 Facility-Panel Ref.-no.: FP 701 CT colour scheme and basic brightness will be reset. Fault messages will be deleted. Calibration data will be reset to the standard setting. The function will be logged in the past events memory. Project data and passwords are not affected when restoring the default setting.

  • Page 9: Installation And Electrical Connection

    Facility-Panel Ref.-no.: FP 701 CT 5. Information for qualified electricians 5.1. Installation and electrical connection DANGER Electric shock in case of accidental contact with live parts. Electric shocks may be fatal. Always clear power cables and cover active parts in the surroundings before working on the device.
  • Page 10 Facility-Panel Ref.-no.: FP 701 CT Figure 4, installation into a flush-mounting box Install the device in flush-mounting box (17). Use enclosed screws (15). Attach design frame (16) and press on. Connecting external pushbuttons There is the option to connect, for example, external pushbuttons.
  • Page 11 Facility-Panel Ref.-no.: FP 701 CT Press programming key (10). The programming LED is illuminated. Assign the physical address. The programming LED (9) ceases to be illuminated. Note the physical address on the bottom side of the device. Downloading the user software Recommendation: Due to large data volumes it is recommended to program the user software via the integrated USB interface (14).
  • Page 12 Our products are under guarantee within the scope of the statutory provisions. Please return the unit postage paid to our central service department giving a brief description of the fault: ALBRECHT JUNG GMBH & CO. KG Service-Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +(49) 23 55 .
