Smart Panel
Smart Panel
Art.-No.: SP 9 KNX
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect device before working on it. At the same
time, take into account all circuit breakers that supply dangerous voltage to the device.
Do not operate the device with sharp or pointed objects. The touch-sensitive surface
could be damaged.
Do not use any sharp objects, acids or organic solvents for cleaning. Device can be
damaged.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
82583103
J:0082583103

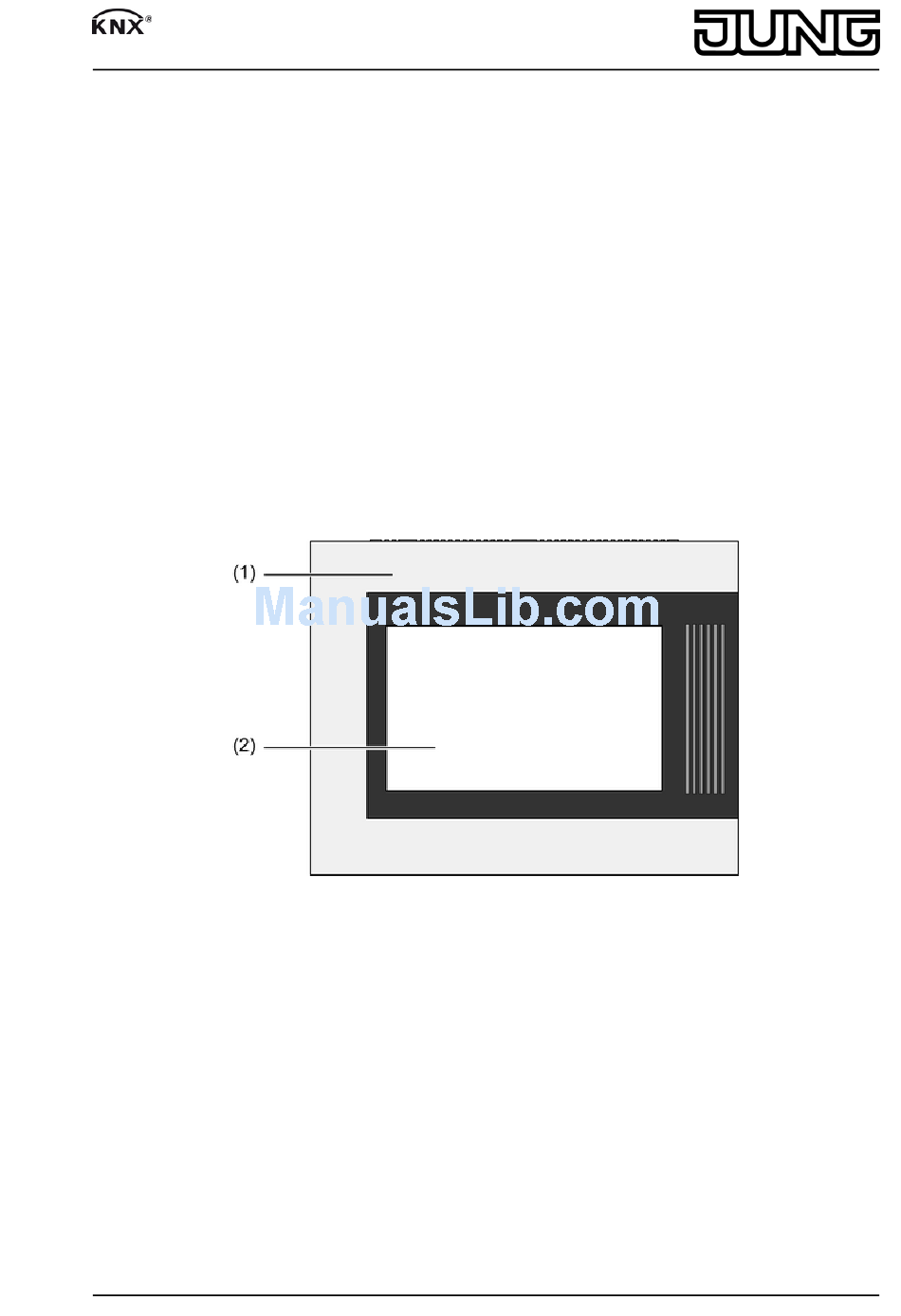

Figure 1: Front view with frame
1/10
22.06.2012

Advertisement

loading
Need help?

Need help?

Do you have a question about the SP 9 KNX and is the answer not in the manual?

Questions and answers

Related Manuals for Jung SP 9 KNX

Summary of Contents for Jung SP 9 KNX

  • Page 1 Smart Panel Smart Panel Art.-No.: SP 9 KNX Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. Danger of electric shock. Always disconnect device before working on it. At the same time, take into account all circuit breakers that supply dangerous voltage to the device.
  • Page 2 Smart Panel Figure 2: Front view without frame (1) Design frame (2) Touchscreen surface (3) Locks for Design frame (4) USB connection (5) Internal microphone (6) On/off push-button (7) Slot for SD memory card (8) Internal camera (9) Camera operating display (10) Internal loudspeaker (11) Bracket for Design frame (12) 4 brackets for wall fastening...

  • Page 3: Operation

    When delivered, the device logs in automatically with the username Smart Panel and the password jung . Carrying out a reset If the panel can no longer be operated, e.g. after a program has crashed, then the device can be reset and switched off.
  • Page 4 Smart Panel Graphical user interface i After switching on, the KNX device starts the KNX application immediately as a separate Windows task. The Windows user interface and system programs are available with connected USB keyboard. The display and operating elements are controlled via a graphic user interface: Figure 3: Graphical user interface, main screen Header: display of date, time, name of the current page or function, or –...
  • Page 5 Smart Panel Figure 4: Monitor elements (21) Windows desktop (22) Start menu (23) Microsoft Windows terms and conditions (24) On-screen keyboard (25) Mouse button switching (26) Windows taskbar (28) Preinstalled system programs In the information area of the taskbar, system programs are preinstalled using the symbol (28), e.g.
  • Page 6 Smart Panel Press the "Close" button. Shut down the panel and restart it. Install the program, e.g. from a USB stick. Activating write filters: select the icon (28) with the mouse pointer. Select the menu item "Write protection". Activate write protection. Press the "Apply"...
  • Page 7 Smart Panel Figure 6: Ventilation openings, front side Ensure sufficient cooling. Do not cover the ventilation openings on the front and rear side of the appliance box (figure 6). Install panel-mounted housing in the correct position in wall. OBEN TOP arrow points upwards.
  • Page 8 Smart Panel Labelling Function Audio R in Input, audio signal, right Audio L in Input, audio signal, left Audio GND Shared GND audio inputs Audio R out Output, audio signal, right Audio L out Output, audio signal, left Audio GND Shared GND audio outputs Video in Input, video signal...
  • Page 9 Smart Panel 5.2 Commissioning Load physical address Press the programming button (14). The programming LED lights up. Assign physical address. The programming LED goes out. Loading the application software i The configuration and commissioning are performed using external configuration and commissioning software.

  • Page 10: Warranty

    We provide a warranty as provided for by law. Please send the unit postage-free with a description of the defect to our central customer service office. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle Telefon: +49.23 55.8 06-0 Telefax: +49.23 55.8 06-2 04...
