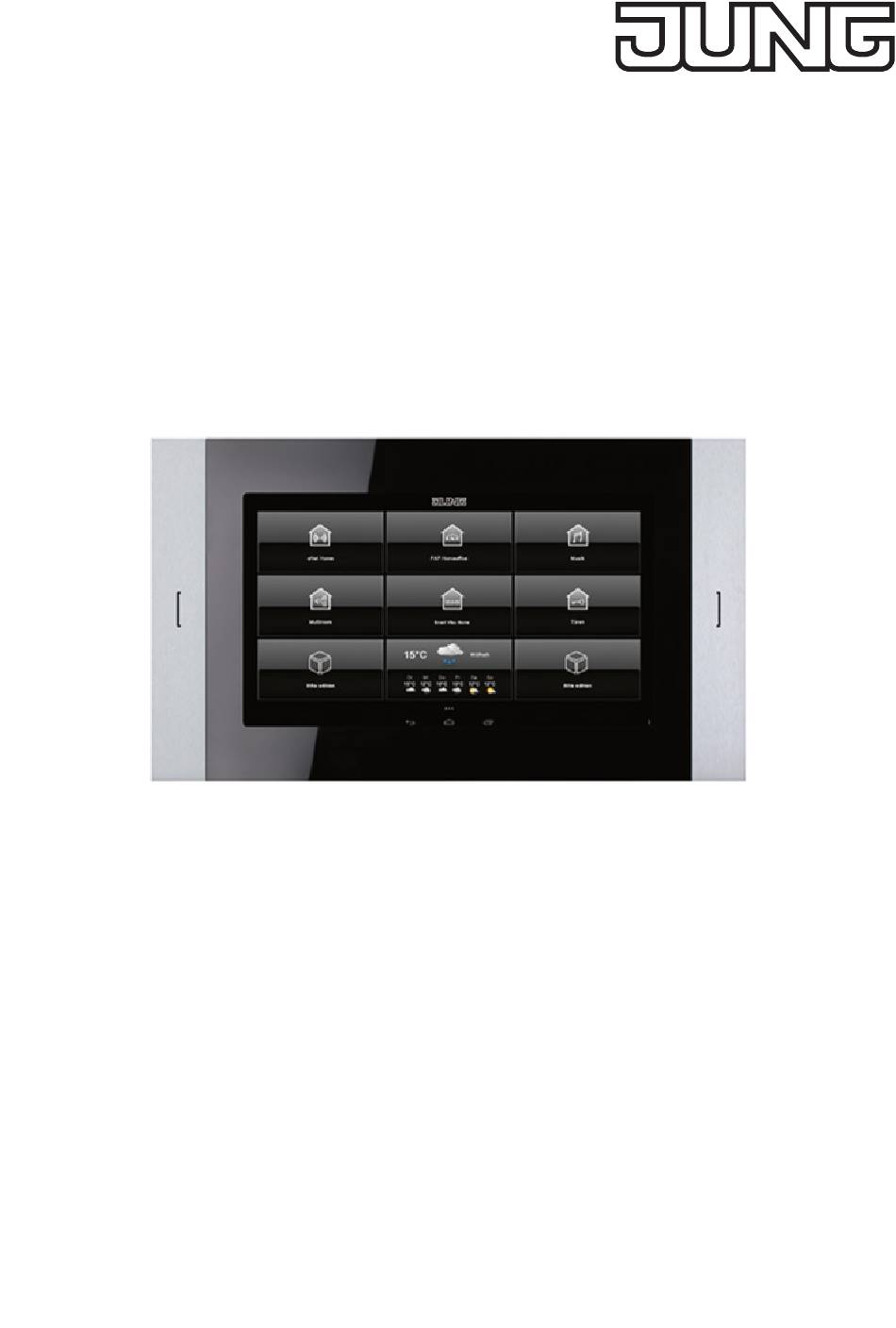

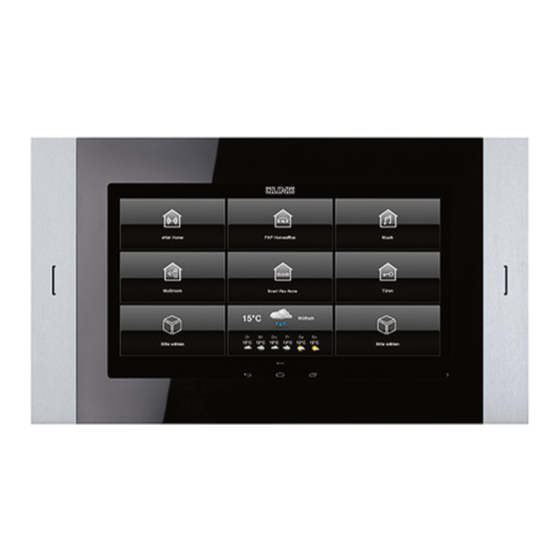

- Page 1 Product documentation Smart Control 10, 15, 19 ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 Ref.-no.: SC 10.1 58579 Schalksmühle SC 15.1 GERMANY SC 19.1 Tel. +49 2355 806-0 Fax +49 2355 806-204 kundencenter@jung.de www.jung.de 07/2020...
-
Page 2: Table Of Contents
3.3 Operation via apps in the main menu ..............3.4 Apps for building automation ................... 3.5 App configuration ...................... 3.5.1 App “JUNG Abfallkalender“ ......................3.5.2 App “System Update“ ........................3.6 Installation of extra apps from app store ..............4 Cleaning ......................24 5 Technical data ....................24... -
Page 3: Installation And Commissioning
Installation and commissioning Installation and commissioning 1.1 Safety instructions and structure of the device 1.1.1 Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. Danger of electric shock. Always disconnect before carrying out work on the devise or load. These instructions are an integral part of the product, and must remain with the end customer. 1.1.2 Structure of the device Fig. 1: Structure of the device Flush-mounted recessed box Smart Control Design cover left... -
Page 4: Installation
Installation and commissioning 1.3 Installation 1.3.1 Information for electrically skilled persons DANGER Electric shock from touching live parts in the installation environment. An electric shock can be fatal. Before working on the device, disconnect the power and cover live parts in the area. 1.3.2 Installation and electrical connection Depending on the Smart Control dimensions it must be installed in various flush-mounted recessed boxes: SC 10.1 SC 10 EBG SC 15.1 SC 15 EBG SC 19.1... -
Page 5: Commissioning
- Power / Lock screen settings - System / Access settings - Password protection 1.4.2 Opening the settings menu Fig. 3: Settings • Select JUNG-logo in main menu (JUNG Launcher). Password input opens. • Enter password. The default password is “0000“. Settings menu opens. -
Page 6: Changing The Default Language
Installation and commissioning 1.4.3 Changing the default language Fig. 4: General / Design settings – Select language i The default language is English. • Open settings menu. • Select menu “General / Design settings“. • Select submenu “Select language“. • Select “Select language”. Available languages are shown. -
Page 7: Changing The Default Password
Installation and commissioning 1.4.5 Changing the default password Fig. 6: System / Access settings – Password protection • Open settings menu. • Select menu “System / Access settings“. • Select submenu “Password protection“. Password input opens. • Enter current and new password. • Confirm passwords with “OK“. Default password is changed. -
Page 8: Updating The Firmware
Installation and commissioning 1.4.7 Updating the firmware Fig. 8: System Update – Update firmware via internet connection Requirements: - Internet connection - App “System Update“ in main menu • Select app “System Update“. App starts. • Select „Check online for updates“. Firmware is updating automatically. SC 10.1, 15.1, 19.1 Page 8 of 24... -
Page 9: Connections, Operating Controls And Indicator Lights
Connections, operating controls and indicator lights Connections, operating controls and indicator lights 2.1 Operating controls device front side Fig. 9: Operating controls device front side Name Function Speaker for playing signal tones SDHC card reader for reading memory cards Microphone for door communication Home button to get back to main menu... -
Page 10: Operation And Configuration
Fig. 11: Control elements Name Function Status bar display of time display of status messages from started apps Side bar list with app shortcuts from main menu (JUNG Launcher) Navigation bar contains basic control elements Off/Restart for restarting or switching off the device Quieter for increasing the volume... -
Page 11: Device Settings
3.2 Device settings Besides the settings for commissioning settings for the device can be made. The device settings are called up via the JUNG Launcher in the main menu. See “Opening the settings menu“ in the chapter commissioning. 3.2.1 Settings – Menu overview... - Page 12 Operation and configuration Selecting city for weather report and activating/deactivating weather report Fig. 13: General / Design settings – Select city • Open settings menu. • Select menu “General / Design settings“. • Select submenu “Select city“. Input window opens. • Enter city name. • Confirm input with “OK“. City for weather report is selected. The weather report can be activated/deactivated with the checkbox in the menu “General / Design settings“.
- Page 13 Operation and configuration Setting time for sidepanel and activating/deactivating sidepanel Fig. 15: General / Design settings – Auto-close side panel • Open settings menu. • Select menu “General / Design settings“. • Select submenu “Auto-close side panel“. Input window opens. • Enter time. •...
- Page 14 Operation and configuration Hiding/showing “Off/Restart” in navigation bar Fig. 17: General / Design settings – Show virtual power button • Open settings menu. • Select menu “General / Design settings“. • Check/uncheck “Show virtual power button“ with the checkbox. “Off/Restart” in the left area of the navigation bar is shown/hidden. Hiding/showing button description Fig. 18: General / Design settings – Empty button description •...
- Page 15 Operation and configuration Selecting number of pages for the main menu Fig. 19: General / Design settings – Set page amount • Open settings menu. • Select menu “General / Design settings“. • Select submenu “Set page amount“. Selection window opens. • Select number of pages for main menu. Number of pages in the main menu is adjusted.
-
Page 16: Menu Area „Power / Lock Screen Settings
Operation and configuration 3.2.3 Menu area „Power / Lock screen settings“ Setting display brightness Fig. 21: Power / Lock screen settings – Display brightness • Open settings menu. • Select menu “Power / Lock screen settings“. • Adjust display brightness with the slider. Display brightness is adjusted. Setting brightness range for brightness sensor Fig. - Page 17 Operation and configuration Setting wake-up behaviour for proximity sensor Fig. 23: Power / Lock screen settings – Proximity sensor – Wake-up behaviour • Open settings menu. • Select menu “Power / Lock screen settings“. • Select submenu “Proximity sensor“. The submenu “Proximity sensor“ can only be selected, if the lock screen “Display off” is selected. See chapter “Selecting and setting lock screen”. •...
-
Page 18: Menu Area „System / Access Settings
Operation and configuration Selecting and setting lock screen Fig. 25: Power / Lock screen settings – Lock screen • Open settings menu. • Select menu “Power / Lock screen settings“. • Select submenu “Lock screen“. Selection window opens. • Select or deactivate lock screen. Selected lock screen is applied. -
Page 19: Operation Via Apps In The Main Menu
3.3 Operation via apps in the main menu The device is operated by preinstalled apps. The apps must be started via main menu. Fig. 27: Main menu (JUNG Launcher) 3.4 Apps for building automation Software applications for building automation are already preinstalled on the device. -
Page 20: App Configuration
See “Creating app shortcut in main menu” in chapter commissioning. 3.5.1 App “JUNG Abfallkalender“ Setting scheduled garbage disposals Fig. 28: JUNG Abfallkalender – Empty list for scheduled garbage disposals • Select app “JUNG Abfallkalender“ in the main menu. App starts. - Page 21 Operation and configuration Changing scheduled garbage disposals Fig. 30: JUNG Abfallkalender – List with scheduled garbage disposals • Select app “JUNG Abfallkalender“ in the main menu. App starts. List with scheduled garbage disposals is shown. • Select “Calendar“. Calendar with scheduled garbage disposals is shown.
-
Page 22: App "System Update
Operation and configuration 3.5.2 App “System Update“ Restoring default settings Fig. 32: System Update – Restore default settings • Select app “System Update“ in the main menu. App starts. • Select “Reset device to factory settings“. Request about restoring the default settings opens. •... -
Page 23: Installation Of Extra Apps From App Store
- Cache of the app store: If no app download is possible, please empty the cache of the app store through the settings of the JUNG Launcher. (System / Access settings – Manage applications – All – Google app store) - Apps not shown: Please note that you will not be able to install all apps from the app store on your device. -
Page 24: Cleaning
Cleaning Cleaning i The cleaning mode must be started with „Screencleaner“ app. Suitable detergents: Water, degreaser, glass cleaner, alcohol and isopropyl Not suitable detergents: Abrasive wipes or aggressive detergents • Start cleaning mode or switch off device to lock touchscreen. • Apply detergent or water on a cleaning wipe. Don‘t apply it directly on device.
