Smart Panel 5.1 KNX
Smart Panel 5.1 KNX
Art. No. : SP 5.1 KNX
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect device before working on it. At the same
time, take into account all circuit breakers that supply dangerous voltage to the device.
Do not operate the device with sharp or pointed objects. The touch-sensitive surface
could be damaged.
Do not use any sharp objects, acids or organic solvents for cleaning. Device can be
damaged.
These instructions are an integral part of the product, and must remain with the end
customer.

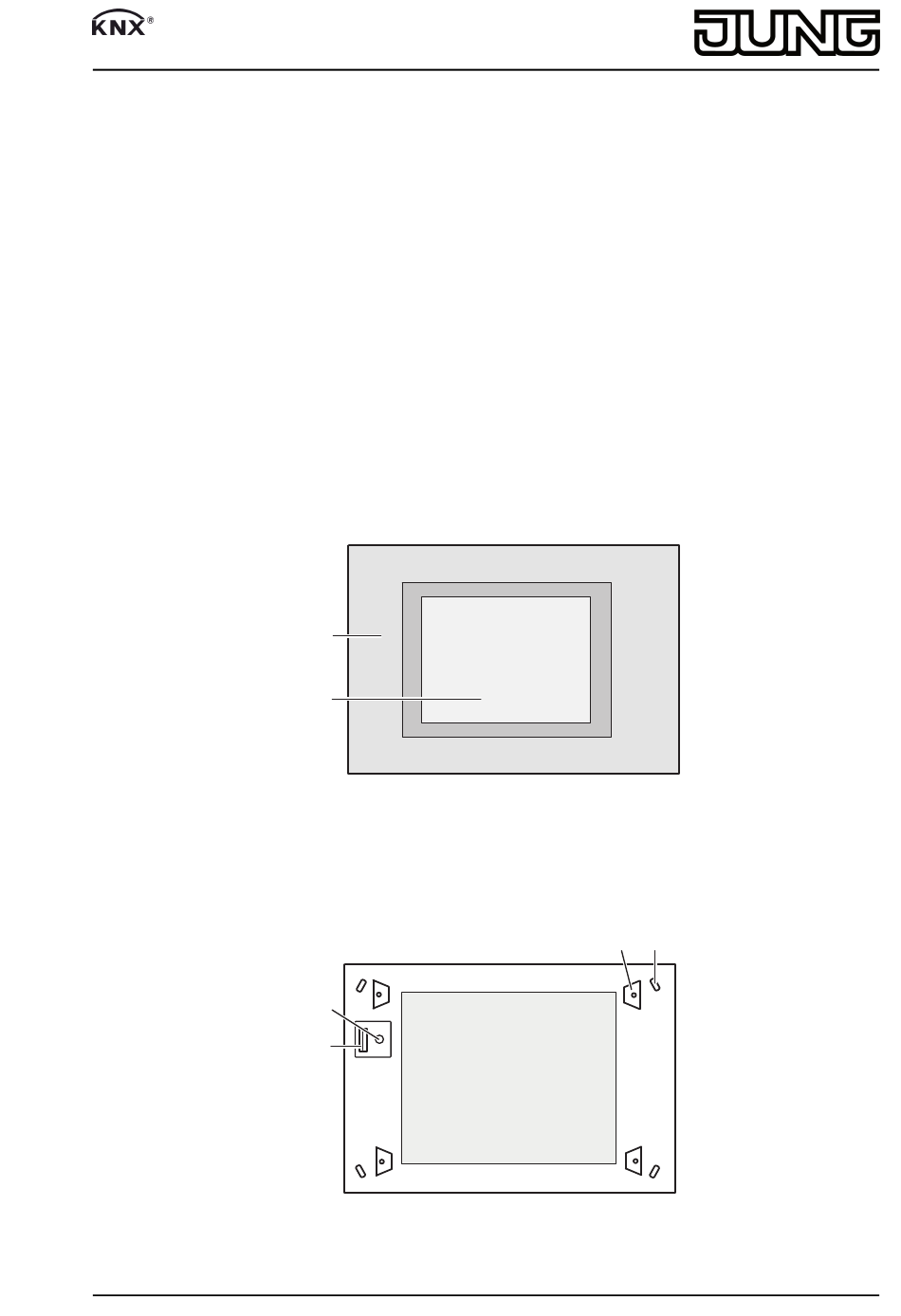

2 Device components
(1) Frame
(2) Touch screen surface
(3) USB 2.0 connection
82590203
J:0082590203
(1)
(2)
Figure 1: Front view with frame
TOP
(4)
(3)
Figure 2: Front view without frame
(5)
OBEN
1/6
(6)
24.11.2014

Advertisement

loading
Need help?

Need help?

Do you have a question about the Smart Panel 5.1 KNX and is the answer not in the manual?

Questions and answers

Related Manuals for Jung Smart Panel 5.1 KNX

Summary of Contents for Jung Smart Panel 5.1 KNX

  • Page 1 Smart Panel 5.1 KNX Smart Panel 5.1 KNX Art. No. : SP 5.1 KNX Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully.

  • Page 2: Operation

    Smart Panel 5.1 KNX (4) Reset button for restart (5) 4 Locks for Design frame (6) Openings for screws to fasten the device 3 Function System information This device is a product of the KNX system and complies with the KNX directives. Detailed technical knowledge obtained in KNX training courses is a prerequisite to proper understanding.
  • Page 3 Smart Panel 5.1 KNX 5 Information for electrically skilled persons 5.1 Fitting and electrical connection DANGER! Electrical shock when live parts are touched. Electrical shocks can be fatal. Before working on the device, disconnect all the corresponding miniature circuit breakers. Cover up live parts in the working environment.
  • Page 4 Smart Panel 5.1 KNX (16) (15) Figure 4: Installation in panel-mounted housing Install panel-mounted housing in the correct position in the wall. Pull the connecting cables through the designated bushings. DANGER! Electrical shock when live parts are touched. The mains voltage and low voltage are located in a shared appliance box.
  • Page 5 Smart Panel 5.1 KNX The programming LED (9) lights up. Assign physical address. The programming LED goes out. Loading the application software i The project design and commissioning are performed using external project design and commissioning software. i Preset IP address at delivery: 192.168.178.113 Establish connection to the commissioning PC via IP connection.

  • Page 6: Warranty

    We provide a warranty as provided for by law. Please send the device with a description of the defect to our central customer service office. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle Telefon: +49.23 55.8 06-0 Telefax: +49.23 55.8 06-2 04...
