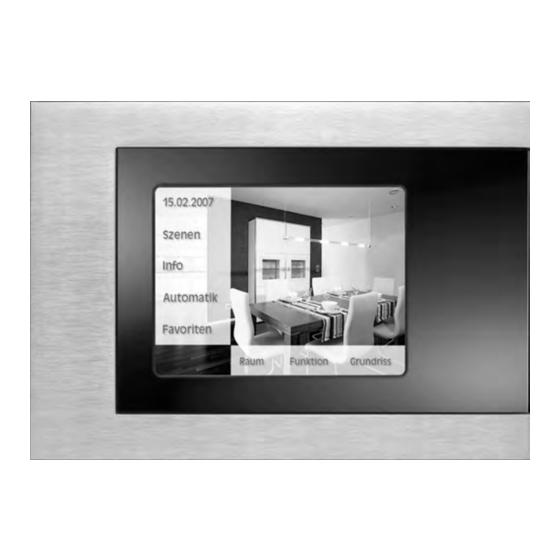

Facility Colour Touch Panel IP
Facility Colour Touch Panel IP
Art.-No.: FP 701 CT IP
Operationsmanual
1 Safety instructions
Electrical equipment must be installed and fitted by qualified electricians.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Always disconnect before working on the device. At the same time, take into account all
circuit breakers that supply dangerous voltage to the device.
Do not touch the screen with sharp or pointed objects.
Do not use sharp objects for cleaning. Do not use acids or organic solvents.
These instructions are an integral part of the product, and must remain with the end cus-
tomer.
2 Device components
(1) Touch screen surface
3 Function
System information
This device is a product of the KNX system and complies with the KNX directives. Detailed
technical knowledge obtained in KNX training courses is a prerequisite to proper understand-
ing.
The function of this device depends upon the software. Detailed information on loadable soft-
ware and attainable functionality as well as the software itself can be obtained from the
manufacturer´s product database. Planning, installation and commissioning of the device are
carried out with the aid of KNX-certified software. The latest product database and technical de-
scriptions are always available on the homepage.
Intended purpose
-
Operating consumers and displaying the status of systems and information e.g. light
switching, dimming, controlling curtains, temperature and consumption values, emails or
messages etc.
-
Flush-mounted installation in hollow or solid walls in the interior
Product characteristics
-
Illuminated programmable graphic colour screen TFT 5.7", 320x240 pixel, 4096 colours
-
Touch screen, operation via touch directly on the screen screen, operation via touch dir-
ectly on the screen
82563313
J:0082563313

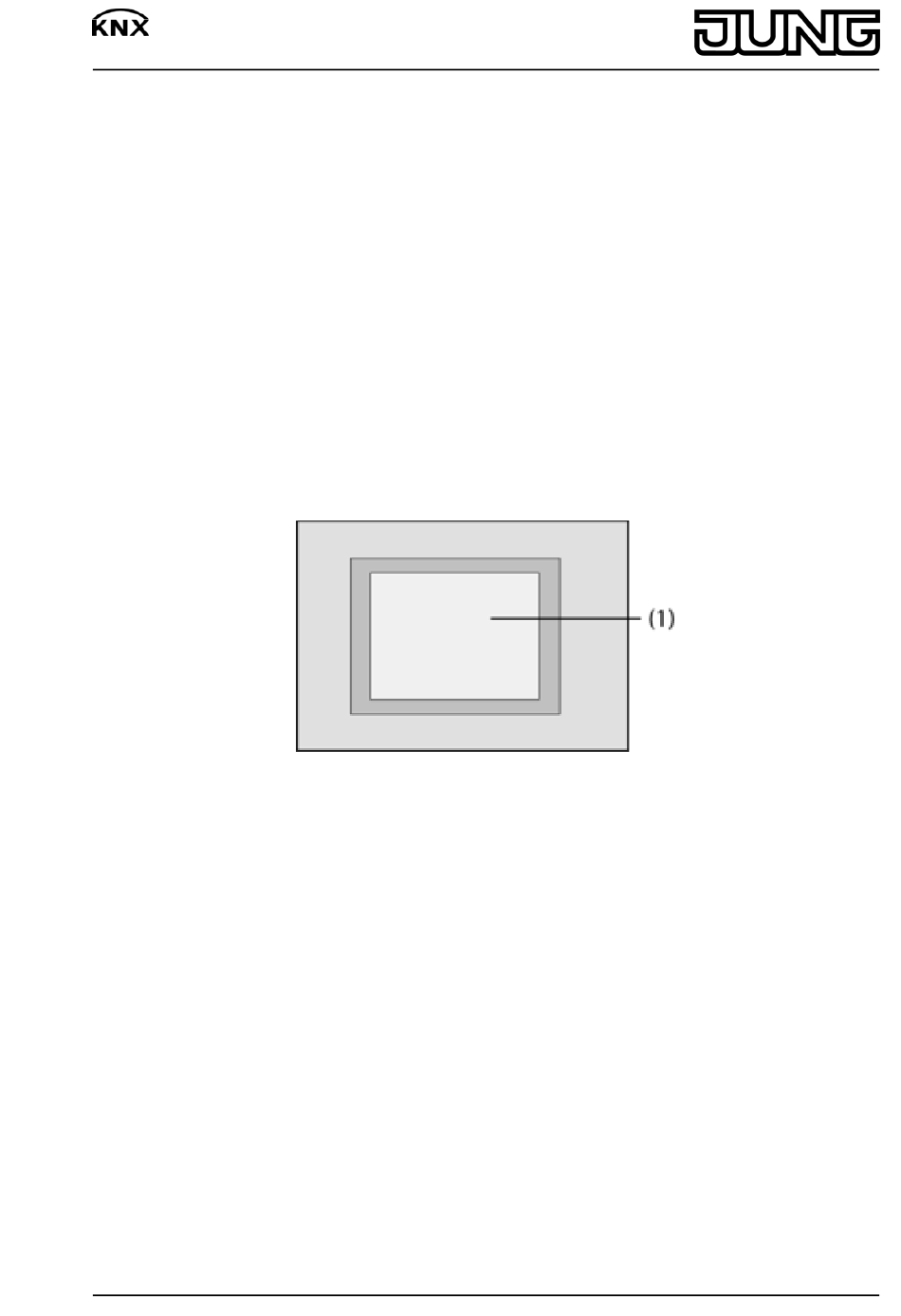

picture 1: Front side
1/15
15.08.2008
Advertisement
Related Manuals for Jung FP 701 CT IP
Summary of Contents for Jung FP 701 CT IP
- Page 1 Facility Colour Touch Panel IP Facility Colour Touch Panel IP Art.-No.: FP 701 CT IP Operationsmanual 1 Safety instructions Electrical equipment must be installed and fitted by qualified electricians. Failure to observe the instructions may cause damage to the device and result in fire and other hazards.
-
Page 2: Operation
Facility Colour Touch Panel IP Fitting position horizontal or vertical USB port for fast programming by means of PC Max. of 1600 operating functions, 400 display functions Max. of 50 pages Max. of 24 light scenes with 32 actuator groups Week time switch with 16 time programs, 8 switching times for each (optional Astro or ran- dom function) Max. - Page 3 Facility Colour Touch Panel IP Status line If programmed, the status line (2) will be visible at the upper screen edge. The status line dis- plays up to ten elements: Event display Centralized fault message Value display Date, time of day, ASCII texts Screen page Control and display elements (4) or images are displayed on screen pages (3).
- Page 4 Facility Colour Touch Panel IP The switching times for the selected timer function will be displayed. Select the switching time to be changed. The page showing the selected switching time will be displayed. Select Time of day and enter the desired switching time via the keypad. Accept input by pressing Save.
- Page 5 Facility Colour Touch Panel IP Complete the entry and reject the settings by pressing Cancel. Quit the Light scenes page by pressing Return. i As an alternative, a light scene can be adjusted manually on the KNX operating devices. After that, highlight the desired scene on the Light scenes page and press Call memory for >...
- Page 6 Facility Colour Touch Panel IP Press Display settings Press Brightness settings Select basic brightness: Bright, Dim or Off. The new setting will be visible as soon as the device switches back into the basic bright- ness. Setting the date Open the Service page Open System settings Select Date Enter the current date.
- Page 7 Facility Colour Touch Panel IP Select Default settings A confirmation request appears on the screen asking whether the default setting is to be restored and whether all user data is to be deleted. If the user data is not to be deleted: Press No. If the default setting is to be restored: Press Yes.
- Page 8 Facility Colour Touch Panel IP Opening email box. The email function is set up and activated. Open Email page. The available mailboxes are displayed. Press the desired mailbox. The desired mailbox is opened and the available emails are listed. Updating email box The email boxes are updated cyclically or manually depending on programming.
- Page 9 Facility Colour Touch Panel IP Press the desired news service longer than 5 s. Alarm system i The instructions described below concern the alarm system integrated in the device and the operation solely from the device. If other operating devices are installed in the KNX system, the operational steps must be carried out accordingly.
- Page 10 Facility Colour Touch Panel IP Resetting fault If a warning device does not respond to an automatic request, the system switches to the status Fault. The display indicates the status Fault. Remove fault. Press Confirm on the device. When all faults have been removed, the system switches to the status deactivated. i If the system does not switch to the status deactivated, there are still faults that have to be removed.
- Page 11 Facility Colour Touch Panel IP The start of the presence simulation can be delayed for up to 24 hours: Press Start delay, enter the desired time period in hours and press Save. i If the presence simulation should start without delay, enter the value 0 as start delay. Activate in section Playback:Start .
- Page 12 Facility Colour Touch Panel IP Install the panel-mounted housing in the correct position - horizontally or vertically aligned in the wall. Horizontal installation: Arrow OBEN TOP points upwards. Vertical installation: Arrow OBEN TOP points to the left. Pull bus and 230 V lines through the designated bush- ings.
- Page 13 Facility Colour Touch Panel IP Connect external keyboard. Alternatively, external keyboards can be connected, for example. Use suitable cable e.g. B.J-Y(St)Y 4x2x0.6. Max. cable length 1.20 m. Connect keyboard. Pay attention to correct allocation. Insert the keyboard cable into connection Ext. (11). Pay attention to pin allocation . picture 6 Pin-No.
- Page 14 Facility Colour Touch Panel IP i During the initialisation (when the device is connected for the first time to the PC), some PC operating systems perform a check as to whether or not the USB drivers have been certified. The corresponding messages can be ignored and the installation continued. i Connect one device to the PC only.
-
Page 15: Warranty
We provide a warranty as provided for by law. Please send the unit postage-free with a description of the defect to our central customer ser- vice office: ALBRECHT JUNG GMBH & CO. KG Service Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +49 (0) 23 55 .
