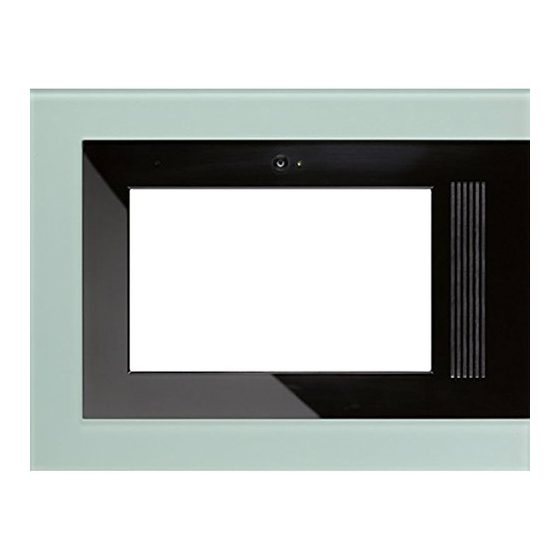

Smart Pilot
Smart Pilot
Art.-No.: SP 9 FAPVE
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Always disconnect device before working on it. At the same
time, take into account all circuit breakers that supply dangerous voltage to the device.
Do not operate the device with sharp or pointed objects. The touch-sensitive surface
could be damaged.
Do not use any sharp objects, acids or organic solvents for cleaning. Device can be
damaged.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
82576703
J:0082576703

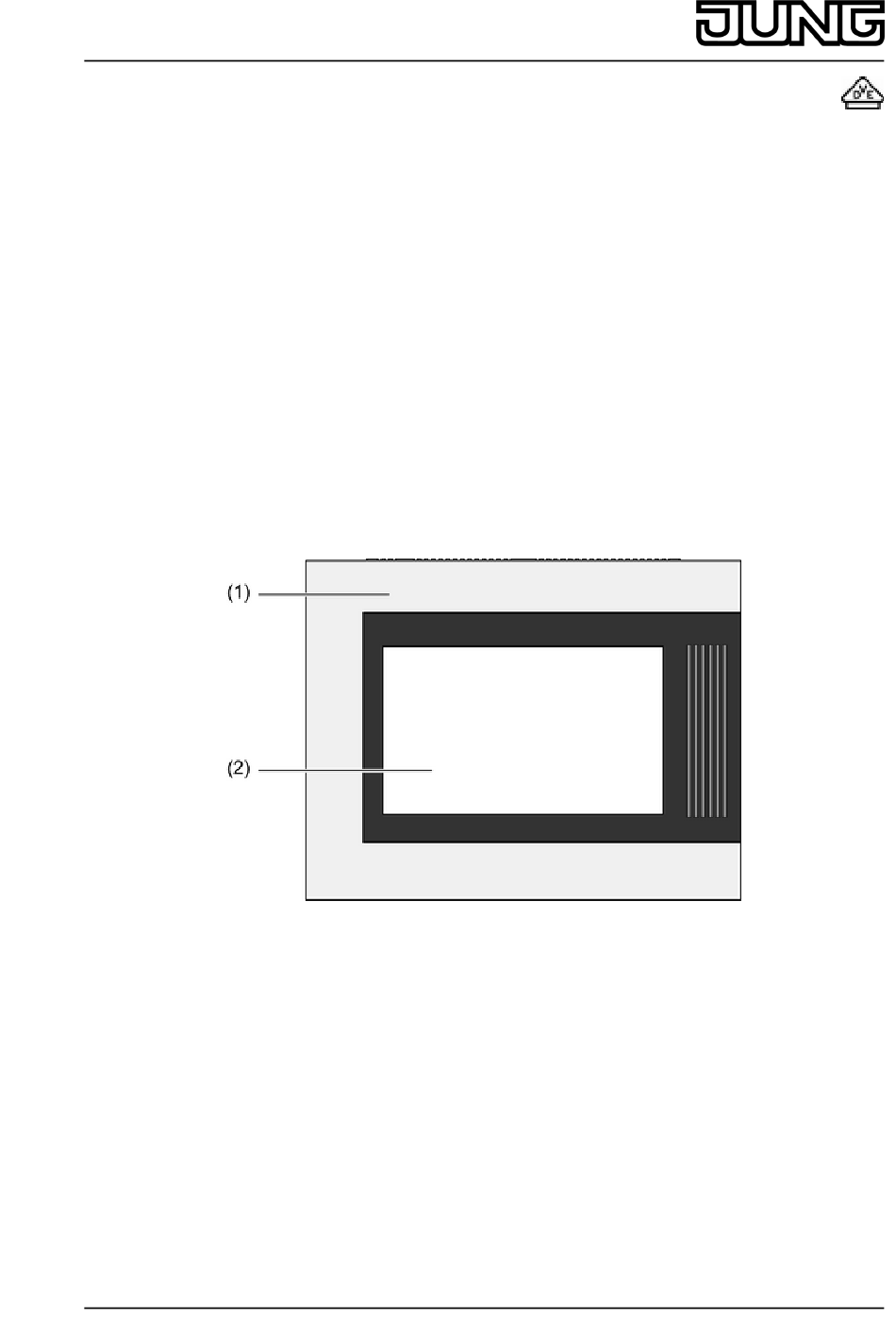

Figure 1: Front view
1/9
06.05.2011

Advertisement

loading
Need help?

Need help?

Do you have a question about the SP 9 FAPVE and is the answer not in the manual?

Questions and answers

Related Manuals for Jung SP 9 FAPVE

Summary of Contents for Jung SP 9 FAPVE

  • Page 1 Smart Pilot Smart Pilot Art.-No.: SP 9 FAPVE Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Failure to observe the instructions may cause damage to the device and result in fire and other hazards.
  • Page 2 Fitting position horizontal or vertical – depending on application Integrated camera Integrated loudspeaker Integrated microphone Interfaces – accessible from front: 1x USB, 1x SD memory card Interfaces – accessible from rear: 2x USB, Ethernet, Stereo Audio-In, Stereo Audio-Out, Video-In Jung Facility Pilot Full version preinstalled 82576703 06.05.2011 J:0082576703...

  • Page 3: Operation

    When delivered, the device logs in automatically with the username Smart Pilot and the password jung . Additional users can be added to the system and the settings changed. Carrying out a reset If the panel can no longer be operated, e.g. after a program has crashed, then the device can be reset and switched off.
  • Page 4 Smart Pilot Graphical user interface Figure 3: Monitor elements (21) Windows desktop (22) Start menu (23) Microsoft Windows terms and conditions (24) On-screen keyboard (25) Mouse button switching (26) Windows taskbar (28) Preinstalled system programs Operation is carried out using a mouse pointer, which follows the operations of the touchscreen. Brief touches of the screen are interpreted as actuation of the mouse buttons.
  • Page 5 Smart Pilot Installing programs Before installing additional programs, take the system requirements of the programs into account. Deactivating write filters: select the icon (28) with the mouse pointer. Select the menu item "Write protection". The window for the write filter settings opens. Deactivate write protection.
  • Page 6 Smart Pilot (35) Ventilation openings (36) Audio input and output (37) Analogue Video input (38) 2x USB-2.0 i Recommendation: Install at eye-level, for optimal reading. Installation in panel-mounted housing. Figure 5: Ventilation openings, front side Ensure sufficient cooling. Do not cover the ventilation openings on the front and rear side of the appliance box (figure 5).
  • Page 7 Smart Pilot Figure 6: Connection assignment, audio and video connections Labelling Function Audio R in Input, audio signal, right Audio L in Input, audio signal, left Audio GND Shared GND audio inputs Audio R out Output, audio signal, right Audio L out Output, audio signal, left Audio GND Shared GND audio outputs...
  • Page 8 Smart Pilot Remove protective film from the touchscreen surface (2). Insert the Design frame into the bottom of the designated brackets in the right position and push up lightly to engage it. Removing the Design frame To remove the Design frame, actuate the locks (5) on the left and right of the top edge of the panel.

  • Page 9: Warranty

    We provide a warranty as provided for by law. Please send the unit postage-free with a description of the defect to our central customer service office: ALBRECHT JUNG GMBH & CO. KG Service Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +49 (0) 23 55 .
