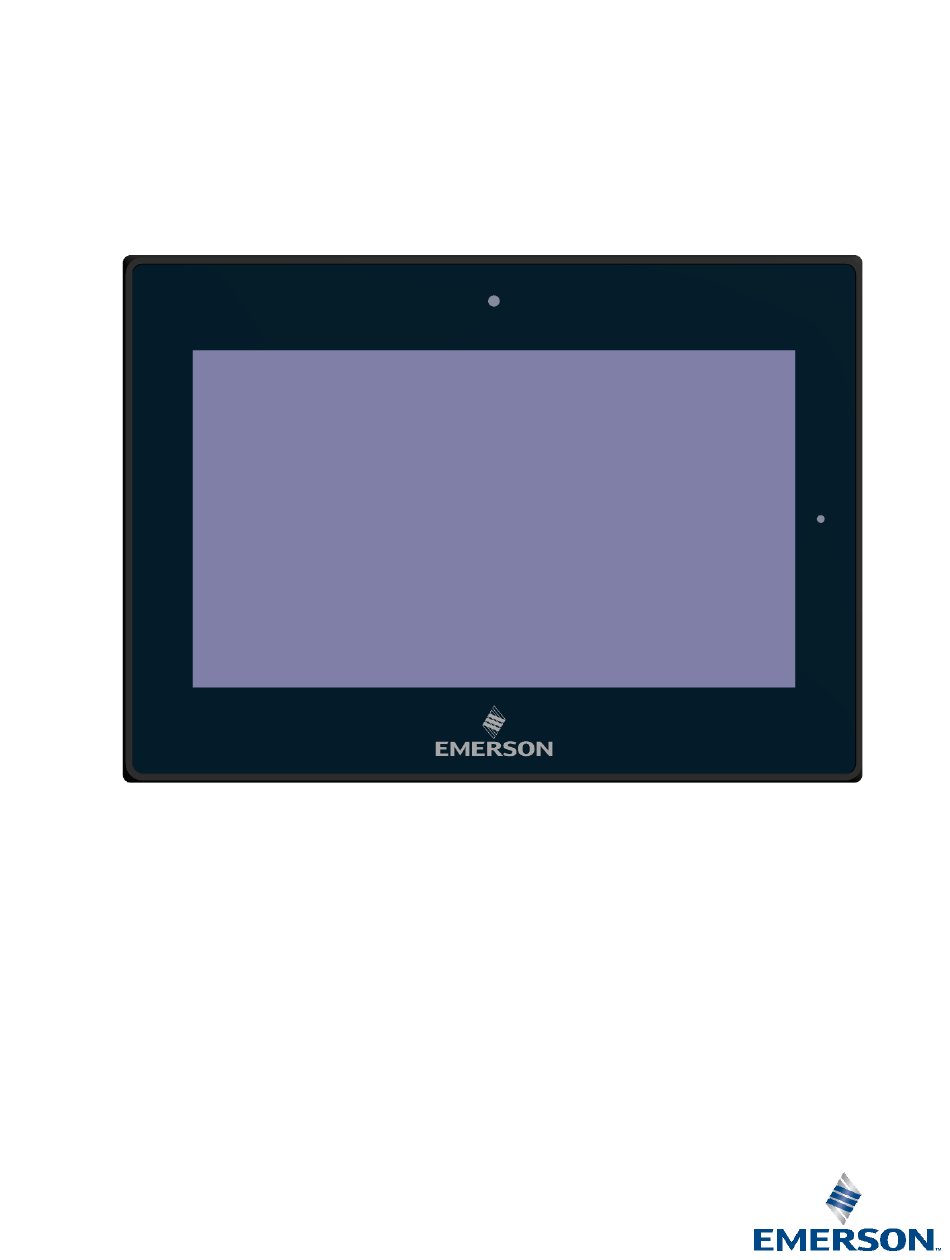

Quick Start Guide
GFK-3073C
May 2020
RXi – Web Panel
QUICK START GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RXi and is the answer not in the manual?

Questions and answers

Related Manuals for Emerson RXi

Summary of Contents for Emerson RXi

  • Page 1 Quick Start Guide GFK-3073C May 2020 RXi – Web Panel QUICK START GUIDE...
  • Page 2 It is understood that Emerson may make changes, modifications, or improvements to the equipment referenced herein or to the document itself at any time. This document is intended for trained personnel familiar with the Emerson products referenced herein.

  • Page 3: Table Of Contents

    Chromium Password Settings ..................16 Mounting Information .............. 18 Panel Mount ....................... 18 Mounting to Modular Display ..................20 VESA Mount ....................... 23 Product Revision History ............27 Technical Support & Contact Information ......... 28 RXi Web Panel Quick Start Guide GFK-3073C...

  • Page 4: Specifications And Physical Characteristics

    1.5mm²) wire rated 90C, 1.7 in-lbs (0.19Nm) torque) Front-Side IP66 Type 4/Type 4X (when mounted to flat surface of a Protection- suitably rated enclosure) Class/ Installation Back-Side IP20/Open Type product for mounting in an ultimate enclosure Pollution Degree 2 environment RXi Web Panel Quick Start Guide GFK-3073C...
  • Page 5 329.1 x 226.8 410.2 x 257.6 500 x 315 x 600 x 382 x (W x H x D) 65 mm 65 mm x 66 mm x 65 mm 70 mm 71 mm RXi Web Panel Quick Start Guide GFK-3073C...

  • Page 6: Technical Drawings & Dimensions

    Technical Drawings & Dimensions Figure 1: Dimensions of 7" RXi Web Panel Quick Start Guide GFK-3073C...
  • Page 7 Figure 2: Dimensions of 10" RXi Web Panel Quick Start Guide GFK-3073C...
  • Page 8 Figure 3: Dimensions of 12" RXi Web Panel Quick Start Guide GFK-3073C...
  • Page 9 Figure 4: Dimensions of 15" RXi Web Panel Quick Start Guide GFK-3073C...
  • Page 10 Figure 5: Dimensions of 19" RXi Web Panel Quick Start Guide GFK-3073C...
  • Page 11 Figure 6: Dimensions of 24" RXi Web Panel Quick Start Guide GFK-3073C...

  • Page 12: Regulatory Information

    Environmental conditions as identified in Section 1.1 shall be followed during installation and operation. Intended Use The RXi Web Panel is intended for use in industrial environments only. Adherence to supplied documentation is part of the intended use. Installation, commissioning, and maintenance shall be carried out by qualified personnel.

  • Page 13: Socket Description

    5. Apply dc power to the unit. During normal startup and operation, the LED status indicator displays as follows: • Solid amber while the RXi - Industrial Display unit is starting up • Solid green during normal operation 6. Once power is applied, the unit begins initializing. The first thing to display is the splash screen.
  • Page 14 USB_OTG1: Conn. Micro-USB, B-Type Female, SMD-5P With DIP 4pin, used to load system firmware Figure 9: USB, LAN, and COM Ports USB_OTG1 Pin# Signal Name 5V_USB_OTG USB_OTG_DN USB_OTG_DP USB0_ID USB1: Type A connector, supports USB Host. USB1 Pin# Signal Name 5V_USB_HOST1 USBDN_DM1 USBDN_DP1 RXi Web Panel Quick Start Guide GFK-3073C...
  • Page 15 Figure 10: LED Status Lights 1. Connecting Socket (COM1) COM1: Conn. I/O Port, DB9, Male. Standard DB9 port, provide 1 route for RS232/422/485. COM1 Pin# RS232 RS422 RS485 TXD- DATA- TXD+ DATA+ RXD+ RXD- RXi Web Panel Quick Start Guide GFK-3073C...

  • Page 16: Led Indicators Operation Status Leds (Screen)

    BTB_MAIN_TB-572B_1: Conn. Female, WCON, 2243-225M3CUT, 2 x 25P, 2.00mm, 180°, H=4.35, 10u”, SMD-50P, TB-572B Backlight Board Socket. LED Indicators Operation Status LEDs (Screen) All RXi Industrial Displays have a tri-color LED built into the screen that provides visual indication of the operation status. LED State System State...

  • Page 17: Ethernet Port Operation Leds

    Ethernet Port Operation LEDs Figure 11:Ethernet Port LEDs Software Installation Installation Pictures The following images show typical screens during software installation. The operating system for the RXi – Web Panel is Linux. RXi Web Panel Quick Start Guide GFK-3073C...
  • Page 18 Figure 12: Linux The web browsers Chromium, and Firefox are both compatible with the RXi – Web Panel. Figure 13: Chromium Browser RXi Web Panel Quick Start Guide GFK-3073C...

  • Page 19: Chromium Password Settings

    Figure 14: Firefox Browser Chromium Password Settings The user/root default password is EMrootroot. Here are instructions to change the password. 1. Click the user password icon Figure 15: User Password Icon RXi Web Panel Quick Start Guide GFK-3073C...
  • Page 20 2. Enter the default (old) and new password then click the Set user password or Set root password button to submit the new password. Figure 16: Set User Password RXi Web Panel Quick Start Guide GFK-3073C...

  • Page 21: Mounting Information

    Mounting Information Panel Mount The RXi Web Panel can be panel-mounted as presented in the section entitled Mounting to Modular Display. A Type 4, Type 4X, or IP 66 rating is achieved when mounted to the flat surface of a sufficiently rated enclosure.
  • Page 22 5. In a cross pattern around the monitor tighten all mounting clip screws to a torque of 13-13.9 in-lbs (15-16 kgf-cm) making sure not to overtighten the bracket. Figure 19: Mounting Bracket Insertion Figure 20: Tighten Mounting Bracket RXi Web Panel Quick Start Guide GFK-3073C...

  • Page 23: Mounting To Modular Display

    Mounting to Modular Display Figure 21: 7" Mount Figure 22: 10" Mount RXi Web Panel Quick Start Guide GFK-3073C...
  • Page 24 Figure 23: 12" Mount Figure 24: 15" Mount RXi Web Panel Quick Start Guide GFK-3073C...
  • Page 25 Figure 25: 19"/24" Mount RXi Web Panel Quick Start Guide GFK-3073C...

  • Page 26: Vesa Mount

    VESA Mount The RXi Web Panel can also be VESA mounted as shown in figures below. All 7” through 24” units include VESA mount dimensions of 100mm x 100mm. All units fastened with four M4x8 screws. Figure 26: 7” VESA Mount...
  • Page 27 Figure 27: 10" VESA Mount RXi Web Panel Quick Start Guide GFK-3073C...
  • Page 28 Figure 28: 12"/15" VESA Mount RXi Web Panel Quick Start Guide GFK-3073C...
  • Page 29 Figure 29: 19"/24" VESA Mount RXi Web Panel Quick Start Guide GFK-3073C...

  • Page 30: Product Revision History

    Product Revision History Revision Description 20191031 • Change user/root default password from GErootroot to EMrootroot (Firmware) • Fixed Chromium browser => settings => home button & on startup can’t save home page issue. RXi Web Panel Quick Start Guide GFK-3073C...

  • Page 31: Technical Support & Contact Information

    Note: If the product is purchased through an Authorized Channel Partner, please contact the seller directly for any support. Emerson reserves the right to modify or improve the designs or specifications of the products mentioned in this manual at any time without notice. Emerson does not assume responsibility for the selection, use or maintenance of any product.
