User Manual Section 1 GFK-3067 Rev. A May 2019 Section 1: Getting Started Features Primary technical features: • Industrial Web Panel • Flat front panel touch screen • IP66 compliant front panel • Fanless design • 24V DC power input •...

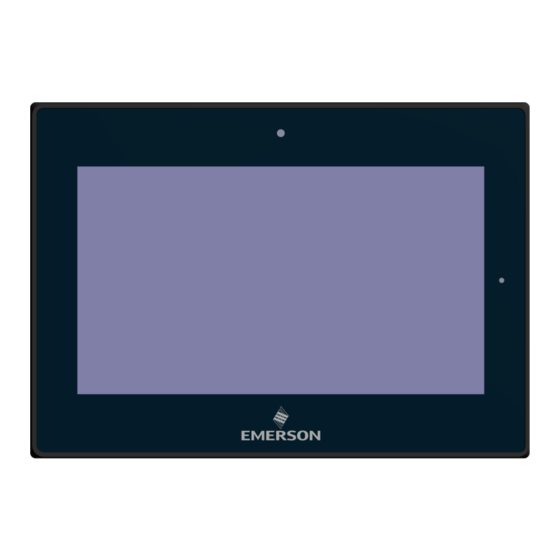

Brief Description of RXi – Web Panel The RXi - Web Panel is powered by a Freescale i.MX 6 DualLite 1.0Ghz SoC which is coupled with 2GB of onboard DDR3L memory. The Web Panel series comes in 7”, 10”, 12”, 15”, 19”, and 24” sizes, and feature a high-resolution TFT LCD, 1 x USB 2.0 type A, 1 x USB OTG (micro USB), 1 x RS-232/422/485...
Page 14
User Manual Section 1 GFK-3067 Rev. A May 2019 Figure 1.8 Front View of 10” Figure 1.9 Front View of 12” Getting Started...
Page 15
User Manual Section 1 GFK-3067 Rev. A May 2019 Figure 1.10 Front View of 15” Figure 1.11 Front View of 19” Getting Started...
Page 16
User Manual Section 1 GFK-3067 Rev. A May 2019 Figure 1.12 Front View of 24” Figure 1.13 Rear View of 7” Getting Started...
Page 17
User Manual Section 1 GFK-3067 Rev. A May 2019 Figure 1.14 Rear View of 10” Figure 1.15 Rear View of 12” Getting Started...
Page 18
User Manual Section 1 GFK-3067 Rev. A May 2019 Figure 1.16 Rear View of 15” Figure 1.17 Rear View of 19”/24” Getting Started...
User Manual Section 2 GFK-3067 Rev. A May 2019 Jumpers and Connectors Locations 2.3.1 Setting Jumper Functions Before installing the Web Panel, please set the necessary functions following the chart below. Note: To determine Pin 1 of the jumper and port, please observe the marking beside the plug. it will be marked as “1”, a bolded line or a “△”;...
Page 22
5. Apply dc power to the unit. During normal startup and operation, the LED status indicator displays as follows: • Solid amber while the RXi - Industrial Display unit is starting up • Solid green during normal operation 6. Once power is applied, the unit begins initializing. The first thing to display is the splash screen.
Page 23
User Manual Section 2 GFK-3067 Rev. A May 2019 Figure 2.6 USB, LAN, and COM Ports USB_OTG1 Pin# Signal Name 5V_USB_OTG USB_OTG_DN USB_OTG_DP USB0_ID USB1: Type A connector, supports USB devices. USB_OTG1 Pin# Signal Name 5V_USB_HOST1 USBDN_DM1 USBDN_DP1 LAN Socket (LAN1) LAN 1: Conn.
Page 24
User Manual Section 2 GFK-3067 Rev. A May 2019 Connecting Socket (COM1) COM1: Conn. I/O Port, RS232, DB9, Male. Standard DB9 port, provide 1 route for RS232/422/485. COM1 Pin# Signal Name DCD1-_422TX-_485- RXD1_422TX+_485+ TXD1_422RX+ DTR1-_422RX- Debug Socket (DEBUG1) DEBUG1: Conn. 1.25mm, (DF14 with pointing) SMD-4P, use for debugging information. DEBUG Pin# Signal Name 3P3V_S0_IO...
GFK-3067 Rev. A May 2019 LED Indicators 2.4.1 Operation Status LEDs (Screen) All RXi Industrial Displays have a tri-color LED built into the screen that provides visual indication of the operation status. LED State System State Amber, Solid Operating system starting...
The following images show typical screens during software installation. The operating system for the RXi – Web Panel is Linux. Figure 3.1 Linux The web browsers Chromium, and Firefox are both compatible with the RXi – Web Panel. Figure 3.2 Chromium Browser Software Installation...
Page 27
User Manual Section 3 GFK-3067 Rev. A May 2019 Figure 3.3 Firefox Browser Software Installation...
User Manual Section 4 GFK-3067 Rev. A May 2019 4.1.1 Panel Mount Installation Steps Verify that the gasket is present and properly seated in the bezel channel located on the sides of the unit Insert the Web Panel into the mounting panel cutout Figure 4.2 Panel Install View Insert the hook of the mounting bracket into the mounting hole as displayed in the following figure.
User Manual Section 4 GFK-3067 Rev. A May 2019 4. Tighten the screws on the mounting bracket in a clock-wise direction. Figure 4.4 Tighten Mounting Bracket Mounting to Modular Display Figure 4.5 7” Mount Mounting Information...
Page 31
User Manual Section 4 GFK-3067 Rev. A May 2019 Figure 4.6 10” Mount Figure 4.7 12” Mount Mounting Information...
Page 32
User Manual Section 4 GFK-3067 Rev. A May 2019 Figure 4.8 15” Mount Figure 4.9 19”/24” Mount Mounting Information...
