Quick Start Guide
GFK-3072F
Mar 2021

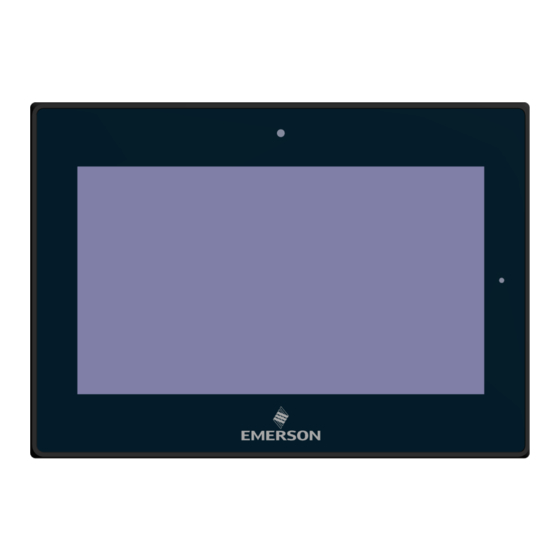

RXi – Panel PC
QUICK START GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RXi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Emerson RXi

Summary of Contents for Emerson RXi

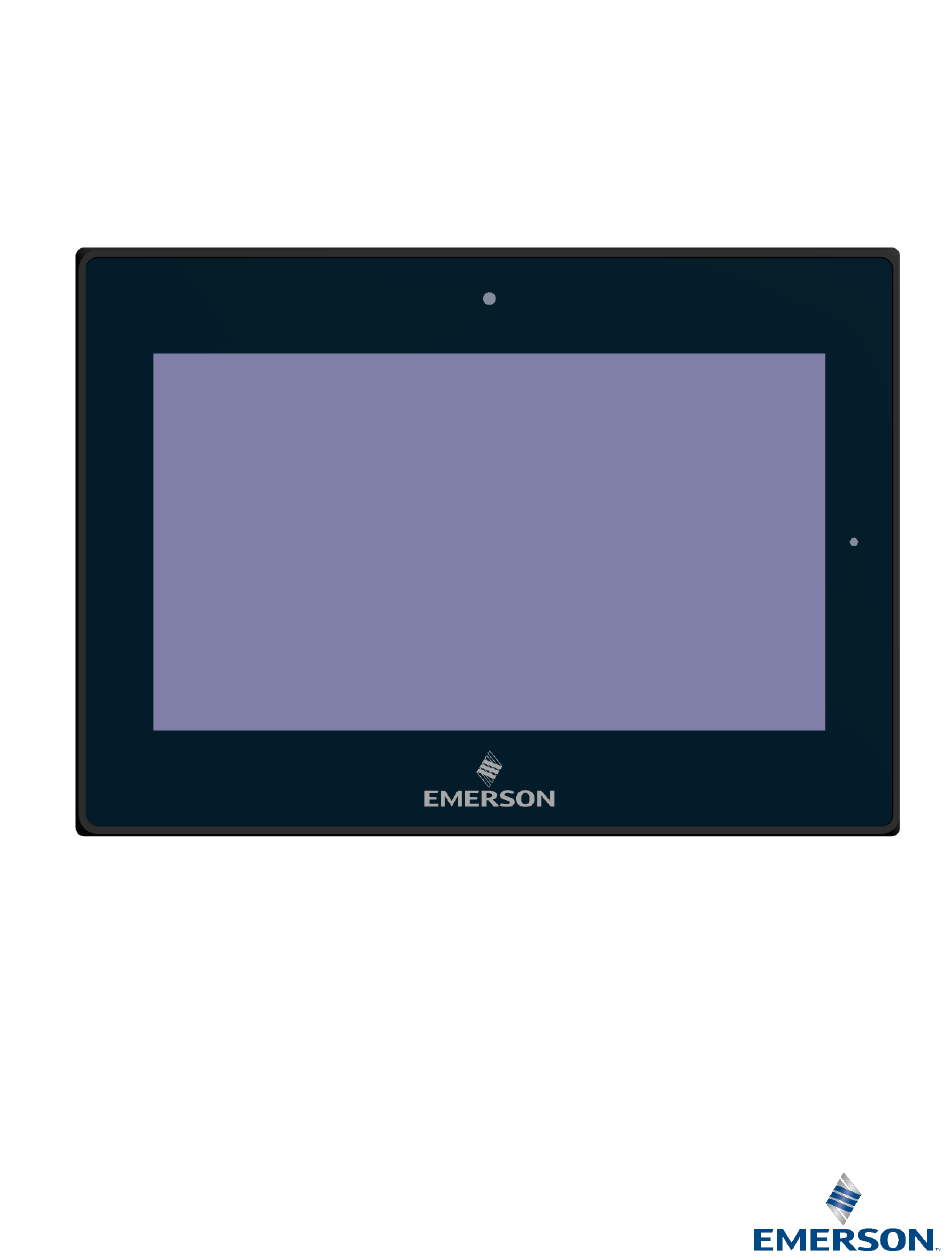

  • Page 1 Quick Start Guide GFK-3072F Mar 2021 RXi – Panel PC QUICK START GUIDE...
  • Page 2 It is understood that Emerson may make changes, modifications, or improvements to the equipment referenced herein or to the document itself at any time. This document is intended for trained personnel familiar with the Emerson products referenced herein.

  • Page 3: Table Of Contents

    Regulatory Information .............. 1 Intended Use ........................ 1 RXi Panel PC Windows Activation Procedure ......2 Activate a Windows 10 IoT Enterprise LTSC device Using an Internet Connection ..2 Activate a Windows 10 IoT Enterprise LTSC Device Using a Telephone ....4 I/O and Connectors ..............

  • Page 4: Regulatory Information

    Industry Canada requires the following to be published: CAN ICES-3 (A)/NMB-3 (A) Intended Use The RXi Panel PC is intended for use in industrial environments only. Adherence to supplied documentation is part of the intended use. Installation, commissioning, and maintenance shall be carried out by qualified personnel. For more information, please consult GFK-3163, RXi2 LP/ RXI Display Installation and Maintenance Requirements.

  • Page 5: Rxi Panel Pc Windows Activation Procedure

    The preloaded Windows 10 IOT Enterprise image on Panel PC is not activated by default. The product key is present on the rear of the Panel PC backing module to activate Windows 10 IOT Enterprise. Note: The user should write down the product key before installing the RXi Panel PC. The product key may not be accessible after installation.
  • Page 6 Figure 3: Removing the Scratch Layer 5. Enter the retrieved Product Key into the popup box and press Next (Figure 4). Figure 4: Enter the Product Key 6. The Windows 10 product key is now active. RXi – Panel PC Quick Start Guide GFK-3072F...

  • Page 7: Activate A Windows 10 Iot Enterprise Ltsc Device Using A Telephone

    4. The part of the Product Key is covered by the scratch layer as highlighted below. The user needs to retrieve this by removing the scratch layer (scratch-off Microsoft labeled layer) as highlighted below. Figure 6: Revealing the Product Key RXi – Panel PC Quick Start Guide GFK-3072F...
  • Page 8 6. Press the Win+R keys to open Run, then type: SLUI 4 and click on OK. Figure 8: Run the SLUI 4 Command Note: There is a space between SLUI and 4. The 4 option instructs SLUI to launch the telephone activation UI. RXi – Panel PC Quick Start Guide GFK-3072F...
  • Page 9 9. At the end of the automated menu, the user will need to confirm the 63-digit Installation ID number. Enter the Installation ID number as shown in Figure 10. The Installation ID number will be grouped into sets of nine (seven digits per set). Figure 10: Technical Support RXi – Panel PC Quick Start Guide GFK-3072F...
  • Page 10 12. To verify the licensing status, open the command prompt as the Administrator on the device. 13. Navigate to the <system drive >:\Windows\System32 folder, type cscript slmgr.vbs /dlv, and verify that the License Status now displays Licensed. Example: c:\Windows\System32>cscript slmgr.vbs /dlv Figure 12: Command Prompt RXi – Panel PC Quick Start Guide GFK-3072F...

  • Page 11: I/O And Connectors

    5. Apply dc power to the unit. During normal startup and operation, the LED status indicator displays as follows: • Solid amber while the RXi - Industrial Display unit is starting up • Solid green during normal operation 6. Once power is applied, the unit begins initializing. The first thing to display is the splash screen.

  • Page 12: Graphics Interface

    The USB ports allow for data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals. The RXi – Panel PC is equipped with 2 onboard USB 3.0 ports (USB 0-1) in the small configuration with an additional 2 USB 2.0 ports (USB 4-5) in the large box configuration.

  • Page 13: Serial Ports (Uart)

    SATA connector on the other end to your Serial ATA device. BIOS Setting Configure the Serial ATA drive in the Chipset menu (“SB SATA Configuration” submenu) of the BIOS. Refer to chapter 3 for more information. RXi – Panel PC Quick Start Guide GFK-3072F...

  • Page 14: Expansion Slots

    Configure the LCD panel in the Chipset menu (“DISPLAY control” submenu) of the BIOS. Refer to Chapter 3 for more information. AIO/DIO Connector AIO/DIO connector provides functionality to external devices that are connected to the connector. (FOR FUTURE USE) RXi – Panel PC Quick Start Guide GFK-3072F...

  • Page 15: Battery (Base Models)

    Use of Another Battery May Present a Risk of Fire or Explosion. Replace Battery with Panasonic Model CR2032 only. CAUTION Battery May Explode if Mistreated. Do not Recharge, Disassemble, or Dispose of In Fire. RXi – Panel PC Quick Start Guide GFK-3072F...

  • Page 16: Battery (Ryzen Models)

    Use of Another Battery May Present a Risk Of Fire or Explosion. Replace Battery With Tohoku Murata Manufacturing Co. LTD. Model CR2032 or CR2032W Only. CAUTION Battery May Explode if Mistreated. Do not Recharge, Disassemble, or Dispose of In Fire. RXi – Panel PC Quick Start Guide GFK-3072F...

  • Page 17: Led Indicators

    LED Indicators Operation Status LEDs (Screen) All RXi Industrial Displays have a tri-color LED built into the screen that provides visual indication of the operation status. LED State System State Amber, Solid Operating system starting Green, Solid Normal operating state...

  • Page 18: Mounting Information

    Panel Mount The RXi Panel PC can be panel-mounted as presented in the section entitled Mounting to Modular Display. A Type 4, Type 4X, or IP 66 rating is achieved when mounted to the flat surface of a sufficiently rated enclosure. Please follow the instructions in the section entitled Installation Steps.

  • Page 19: Installation Steps

    5. In a cross pattern around the monitor tighten all mounting clip screws to a torque of 13 to 13.9 in-lbs. (15 to 16kgf-cm) making sure not to overtighten the bracket. Figure 20: Tighten Mounting Bracket RXi – Panel PC Quick Start Guide GFK-3072F...

  • Page 20: Mounting To Modular Display

    Mounting to Modular Display Figure 21: 7" Mount Figure 22: 10" mount RXi – Panel PC Quick Start Guide GFK-3072F...
  • Page 21 Figure 23: 12" Mount Figure 24: 15" Mount RXi – Panel PC Quick Start Guide GFK-3072F...
  • Page 22 Figure 25: 19/24" Mount Figure 26: Panel PC with AMD Ryzen Mount RXi – Panel PC Quick Start Guide GFK-3072F...

  • Page 23: Vesa Mount

    VESA Mount VESA Mount Dimensions The RXi Panel PC can also be VESA mounted as shown in the figures below. All 7” through 24” units include VESA Mount Dimensions of 100 mm x 100 mm. All units are fastened with four M4x8 screws.
  • Page 24 Figure 28: 10" VESA Mount RXi – Panel PC Quick Start Guide GFK-3072F...
  • Page 25 Figure 29: 12" VESA Mount RXi – Panel PC Quick Start Guide GFK-3072F...
  • Page 26 Figure 30: 15" VESA Mount RXi – Panel PC Quick Start Guide GFK-3072F...
  • Page 27 Figure 31: 19"/24" VESA Mount RXi – Panel PC Quick Start Guide GFK-3072F...
  • Page 28 Figure 32: Panel PC with AMD Ryzen VESA Mount...
  • Page 29 Note: If the product is purchased through an Authorized Channel Partner, please contact the seller directly for any support. Emerson reserves the right to modify or improve the designs or specifications of the products mentioned in this manual at any time without notice. Emerson does not assume responsibility for the selection, use or maintenance of any product.
