Quick Start Guide
GFK-3073D
December 2020

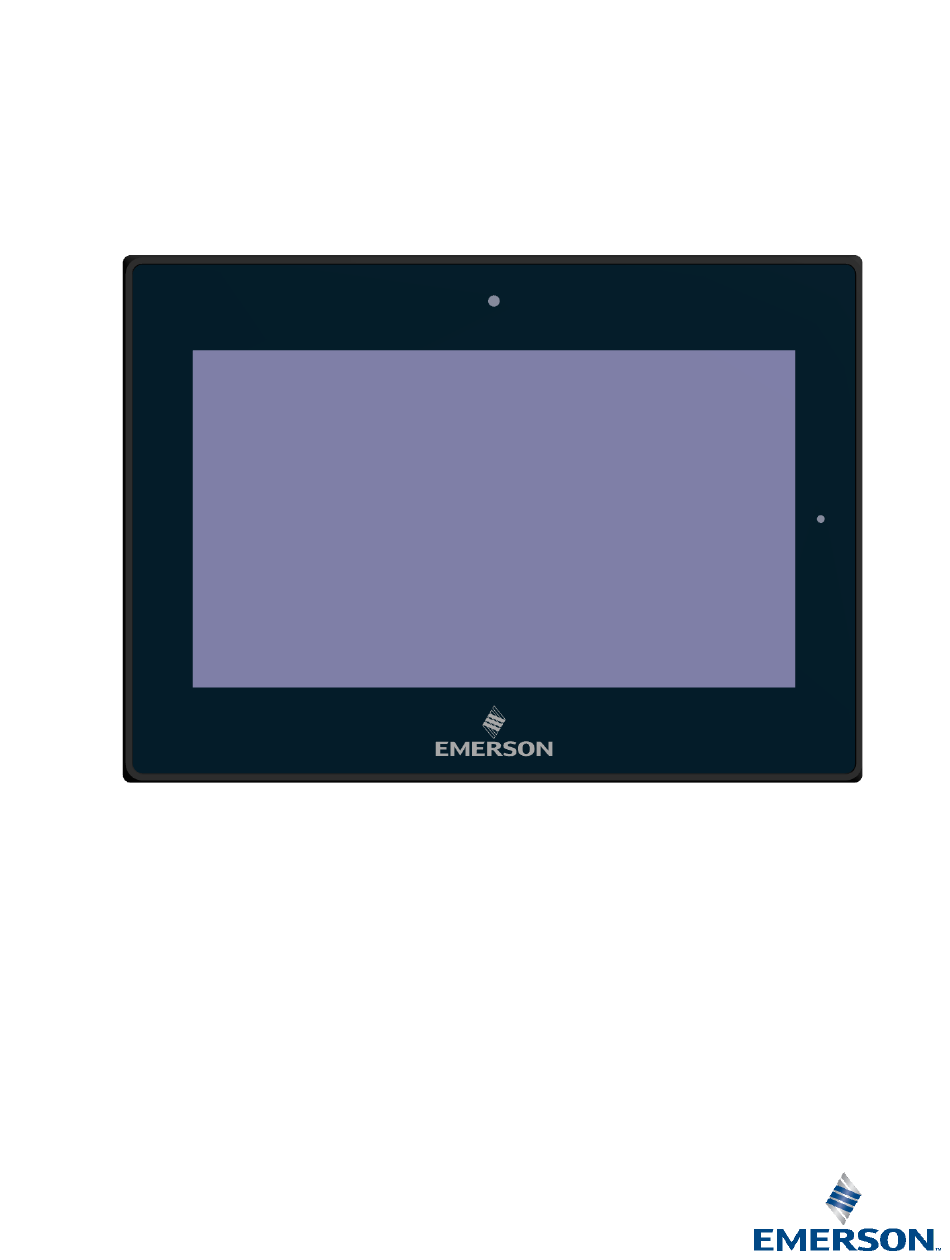

RXi – Web Panel
QUICK START GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RXi Web Panel and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Emerson RXi Web Panel

Summary of Contents for Emerson RXi Web Panel

  • Page 1 Quick Start Guide GFK-3073D December 2020 RXi – Web Panel QUICK START GUIDE...
  • Page 2 It is understood that Emerson may make changes, modifications, or improvements to the equipment referenced herein or to the document itself at any time. This document is intended for trained personnel familiar with the Emerson products referenced herein.

  • Page 3: Table Of Contents

    Mounting Information ..............7 Panel Mount ......................... 7 Installation Steps ......................8 Mounting to Web Panel ....................9 Mounting to Modular Display ..................9 VESA Mount ....................... 12 Technical Support & Contact Information ......... 16 RXi Web Panel Quick Start Guide GFK-3073D...

  • Page 4: Regulatory Information

    Environmental conditions as identified in Section 1.1 shall be followed during installation and operation. Intended Use The RXi Web Panel is intended for use in industrial environments only. Adherence to supplied documentation is part of the intended use. Installation, commissioning, and maintenance shall be carried out by qualified personnel.

  • Page 5: Jumpers And Connectors Locations

    Be sure to connect a DC power cord to this 3-pin power connector. Using a voltage out of the range may fail to boot the system or cause damage to the system board. Before connecting the Web Panel to other devices, please read this manual carefully first to prevent damage to the Motherboard. RXi Web Panel Quick Start Guide GFK-3073D...
  • Page 6 USB_OTG1: Conn. Micro-USB, B-Type Female, SMD-5P With DIP 4pin, used to load system firmware Figure 3: USB, LAN, and COM Ports USB_OTG1 Pin# Signal Name 5V_USB_OTG USB_OTG_DN USB_OTG_DP USB0_ID USB1: Type A connector, supports USB Host. USB1 Pin# Signal Name 5V_USB_HOST1 USBDN_DM1 USBDN_DP1 RXi Web Panel Quick Start Guide GFK-3073D...
  • Page 7 Figure 4: LED Status Lights 1. Connecting Socket (COM1) COM1: Conn. I/O Port, DB9, Male. Standard DB9 port, provide 1 route for RS232/422/485. COM1 Pin# RS232 RS422 RS485 TXD- DATA- TXD+ DATA+ RXD+ RXD- RXi Web Panel Quick Start Guide GFK-3073D...

  • Page 8: Led Indicators Operation Status Leds (Screen)

    LED State System State Amber, Solid Operating system starting Green, Solid Normal operating state Red, Blinking CPU over temperature 90C Power not applied to the unit Ethernet Port Operation LEDs Figure 5:Ethernet Port LEDs RXi Web Panel Quick Start Guide GFK-3073D...

  • Page 9: Configuration And Setup

    Figure 6: User Password Icon 2. Enter the default (old) and new password then click the Set user password or Set root password button to submit the new password. Figure 7: Set User Password RXi Web Panel Quick Start Guide GFK-3073D...

  • Page 10: Mounting Information

    Panel Mount The RXi Web Panel can be panel-mounted as presented in the section entitled Installation Steps. A Type 4, Type 4X, or IP 66 rating is achieved when mounted to the flat surface of a sufficiently rated enclosure. Please follow the instructions in the section entitled Installation Steps.

  • Page 11: Installation Steps

    5. In a cross pattern around the monitor tighten all mounting clip screws to a torque of 13-13.9 in-lbs (15-16 kgf-cm) making sure not to overtighten the bracket. Figure 10: Mounting Bracket Insertion Figure 11: Tighten Mounting Bracket RXi Web Panel Quick Start Guide GFK-3073D...

  • Page 12: Mounting To Web Panel

    Mounting to Web Panel All units are fastened with two M3x6 pan-head screws. Mounting to Modular Display Figure 12: 7" Mount Figure 13: 10" Mount RXi Web Panel Quick Start Guide GFK-3073D...
  • Page 13 Figure 14: 12" Panel Mount Figure 15: 15" Panel Mount RXi Web Panel Quick Start Guide GFK-3073D...
  • Page 14 Figure 16: 19"/24" Panel Mount RXi Web Panel Quick Start Guide GFK-3073D...

  • Page 15: Vesa Mount

    VESA Mount The RXi Web Panel can also be VESA mounted as shown in the figures below. All 7” through 24” units include VESA mount dimensions of 100mm x 100mm. All units fastened with four M4x8 screws. Figure 17: 7” VESA Mount...
  • Page 16 Figure 18: 10" VESA Mount RXi Web Panel Quick Start Guide GFK-3073D...
  • Page 17 Figure 19: 12"/15" VESA Mount RXi Web Panel Quick Start Guide GFK-3073D...
  • Page 18 Figure 20: 19"/24" VESA Mount RXi Web Panel Quick Start Guide GFK-3073D...

  • Page 19: Technical Support & Contact Information

    Note: If the product is purchased through an Authorized Channel Partner, please contact the seller directly for any support. Emerson reserves the right to modify or improve the designs or specifications of the products mentioned in this manual at any time without notice. Emerson does not assume responsibility for the selection, use or maintenance of any product.
