Knight Winder Single Assembly Instructions Manual

Agile desk

Hide thumbs

page of 77

/ 77
Bookmarks

Quick Links

Download this manual

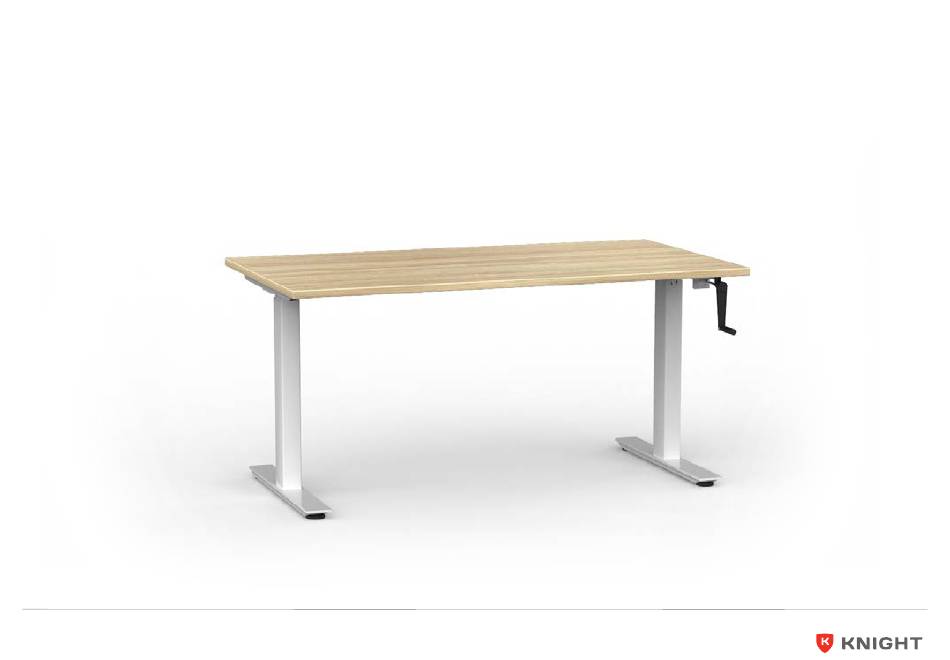

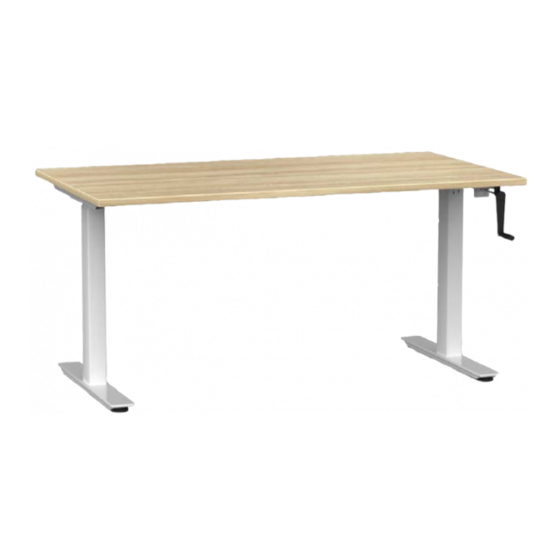

Agile Desk - Winder

Assembly Instructions - Single Sided, Double Sided, Returns

Tools Required:

Powered Screwdriver

knightgroup.co.nz

Need help?

Do you have a question about the Winder Single and is the answer not in the manual?

Questions and answers

Summary of Contents for Knight Winder Single

Page 1 Agile Desk - Winder Assembly Instructions - Single Sided, Double Sided, Returns Tools Required: Powered Screwdriver knightgroup.co.nz...
Page 2 Page 2 Assembly Instructions Assembly Instructions Contents Winder Single Sided Desk Page 4 Winder Single Sided Desk with Desk Hung Screen Page 16 Winder Single Sided Desk with Cable Tray Page 24 Winder Double Sided Desk Page 29 Winder Double Sided Desk with Screen...
Page 3 Agile Desk - Winder Page 3 Assembly Instructions Assembly Instructions IMPORTANT SET UP AND INSTALLATION Please carefully read the assembly instructions and direction for use prior to instalment, use and maintenance of the table frame to gain a complete Assemble the table frame according to the following pages in this assembly understanding of its contents.
Page 4 Agile Desk - Winder Single Sided Page 4 Assembly Instructions Assembly Instructions Parts 1 x Left & Right Leg Pair 2 x Foot 2 x Leg Rail 1 x Cross Rail 1 x Drive Shaft 1 x L&R Support Bar Pair...
Page 5 Agile Desk - Winder Single Sided Page 5 Assembly Instructions Assembly Instructions Step 1 2 x M8x10 2 x M8x10 2 x Washer knightgroup.co.nz...
Page 6 Agile Desk - Winder Single Sided Page 6 Assembly Instructions Assembly Instructions Step 2 4 x M8x10 knightgroup.co.nz...
Page 7 Agile Desk - Winder Single Sided Page 7 Assembly Instructions Assembly Instructions Step 3 4 x Levelling Foot 8 x M8x25 IMPORTANT! REFER TO PAGE 16 FOR INSTALL OF SCREEN knightgroup.co.nz...
Page 8 Agile Desk - Winder Single Sided Page 8 Assembly Instructions Assembly Instructions Step 4 Worktop Length 1200mm 1125mm 1500mm 1425mm 1800mm 1725mm 2100mm 2025mm knightgroup.co.nz...
Page 9 Agile Desk - Winder Single Sided Page 9 Assembly Instructions Assembly Instructions Step 5 1 x Drive Shaft knightgroup.co.nz...
Page 10 Agile Desk - Winder Single Sided Page 10 Assembly Instructions Assembly Instructions Step 6 6 x ST5.0x23 knightgroup.co.nz...
Page 11 Agile Desk - Winder Single Sided Page 11 Assembly Instructions Assembly Instructions Step 7 1 x Winder 2 x ST3.9x12 FOR DEEP WORKTOPS REF PAGE 12 FOR WINDER POSITIONING DETAILS knightgroup.co.nz...
Page 12 Agile Desk - Winder Single Sided Page 12 Assembly Instructions Assembly Instructions Positioning of Winder Handle 40mm RELEASE GRUBSCREW knightgroup.co.nz...
Page 13 Agile Desk - Winder Handle from Right to Left Operation Page 13 Assembly Instructions Assembly Instructions Step 1 knightgroup.co.nz...
Page 14 Agile Desk - Winder Handle from Right to Left Operation Page 14 Assembly Instructions Assembly Instructions Step 2 knightgroup.co.nz...
Page 15 Agile Desk - Winder Single Sided Page 15 Assembly Instructions Assembly Instructions Completed knightgroup.co.nz...
Page 16 Agile Desk - Winder Single Sided with Hung Screen Page 16 Assembly Instructions Assembly Instructions Parts SSD Screen Brackets 2 x M8x25 4 x ST5.0x23 2 x Stabilizing Bracket L/R Pair knightgroup.co.nz...
Page 17 Agile Desk - Winder Single Sided with Hung Screen Page 17 Assembly Instructions Assembly Instructions Step 1 knightgroup.co.nz...
Page 18 Agile Desk - Winder Single Sided with Hung Screen Page 18 Assembly Instructions Assembly Instructions Step 2 90.0° knightgroup.co.nz...
Page 19 Agile Desk - Winder Single Sided with Hung Screen Page 19 Assembly Instructions Assembly Instructions Step 3 knightgroup.co.nz...
Page 20 Agile Desk - Winder Single Sided with Hung Screen Page 20 Assembly Instructions Assembly Instructions Step 4 2 x M8x25 knightgroup.co.nz...
Page 21 Agile Desk - Winder Single Sided with Hung Screen Page 21 Assembly Instructions Assembly Instructions Step 5 4 x ST5.0x23 2 x Stabilizing Bracket knightgroup.co.nz...
Page 22 Agile Desk - Winder Single Sided with Hung Screen Page 22 Assembly Instructions Assembly Instructions Step 6 90.0° knightgroup.co.nz...
Page 23 Agile Desk - Winder Single Sided with Hung Screen Page 23 Assembly Instructions Assembly Instructions Completed knightgroup.co.nz...
Page 24 Agile Desk - Winder Single Sided with Cable Tray Page 24 Assembly Instructions Assembly Instructions Parts 4 x M6x10 4 x M5x6 2 x SSD Tray Mounts 1 x SSD Tray knightgroup.co.nz...
Page 25 Agile Desk - Winder Single Sided with Cable Tray Page 25 Assembly Instructions Assembly Instructions Step 1 4 x M6x10 knightgroup.co.nz...
Page 26 Agile Desk - Winder Single Sided with Cable Tray Page 26 Assembly Instructions Assembly Instructions Step 2 4 x M5x6 knightgroup.co.nz...
Page 27 Agile Desk - Winder Single Sided with Cable Tray Page 27 Assembly Instructions Assembly Instructions Step 1 - Power & Data Plate 1 x Power Plate 1 x Data Plate 5 x Screws knightgroup.co.nz...
Page 28 Agile Desk - Winder Single Sided with Cable Tray Page 28 Assembly Instructions Assembly Instructions Step 2 - Power & Data Plate knightgroup.co.nz...
Page 29 Agile Desk - Winder Double Sided Page 29 Assembly Instructions Assembly Instructions Parts 2 x L&R Leg Pair 2 x L&R Leg Rail Pair 2 x Cross Rail 2 x Drive Shaft 1 x Cross Beam 1 x Cross Beam Cover 2 x Leg Beam 2 x Leg Beam Cover 2 x L&R Support Bar Pair...
Page 30 Agile Desk - Winder Page 30 Assembly Instructions Assembly Instructions Parts 2 x Winder 4 x Levelling Foot 16 x M8x10 4 x M8x10 4 x Washer 20 x M5x10 12 x ST5.0x23 knightgroup.co.nz...
Page 31 Agile Desk - Winder Double Sided Page 31 Assembly Instructions Assembly Instructions Step 1 8 x M8x10 4 x M8x10 4 x Washer knightgroup.co.nz...
Page 32 Agile Desk - Winder Double Sided Page 32 Assembly Instructions Assembly Instructions Step 2 8 x M8x10 knightgroup.co.nz...
Page 33 Agile Desk - Winder Double Sided Page 33 Assembly Instructions Assembly Instructions Step 3 4 x Levelling Foot knightgroup.co.nz...
Page 34 Agile Desk - Winder Double Sided Page 34 Assembly Instructions Assembly Instructions Step 4 16 x M5x10 knightgroup.co.nz...
Page 35 Agile Desk - Winder Double Sided Page 35 Assembly Instructions Assembly Instructions Step 5 4 x M5x10 IMPORTANT! REFER TO PAGE 50 FOR INSTALL OF CABLE TRAY knightgroup.co.nz...
Page 36 Agile Desk - Winder Double Sided Page 36 Assembly Instructions Assembly Instructions Step 6 knightgroup.co.nz...
Page 37 Agile Desk - Winder Double Sided Page 37 Assembly Instructions Assembly Instructions Step 7 knightgroup.co.nz...
Page 38 Agile Desk - Winder Double Sided Page 38 Assembly Instructions Assembly Instructions Step 8 knightgroup.co.nz...
Page 39 Agile Desk - Winder Double Sided Page 39 Assembly Instructions Assembly Instructions Step 9 knightgroup.co.nz...
Page 40 Agile Desk - Winder Double Sided Page 40 Assembly Instructions Assembly Instructions Step 10 12 x ST5.0x23 * Minimum 20mm wider than screen knightgroup.co.nz...
Page 41 Agile Desk - Winder Double Sided Page 41 Assembly Instructions Assembly Instructions Step 11 FOR DEEP WORKTOPS REF PAGE 42 FOR WINDER POSITIONING DETAILS knightgroup.co.nz...
Page 42 Agile Desk - Winder Double Sided Page 42 Assembly Instructions Assembly Instructions Positioning of Winder Handle 40mm RELEASE GRUBSCREW knightgroup.co.nz...
Page 43 Agile Desk - Winder Handle from Right to Left Operation Page 43 Assembly Instructions Assembly Instructions Step 1 knightgroup.co.nz...
Page 44 Agile Desk - Winder Handle from Right to Left Operation Page 44 Assembly Instructions Assembly Instructions Step 2 knightgroup.co.nz...
Page 45 Agile Desk - Winder Double Sided Page 45 Assembly Instructions Assembly Instructions knightgroup.co.nz...
Page 46 Agile Desk - Winder Double Sided with Screen Page 46 Assembly Instructions Assembly Instructions Parts 2 x M8x20 4 x M5x15 2 x Screen Bracket 8 x ST5.0x23 4 x Stabilizing Bracket 2 x M8x35 supplied if screen contains ducting knightgroup.co.nz...
Page 47 Agile Desk - Winder Double Sided with Screen Page 47 Assembly Instructions Assembly Instructions Step 1 2 x M8x20 2 x Screen Bracket knightgroup.co.nz...
Page 48 Agile Desk - Winder Double Sided with Screen Page 48 Assembly Instructions Assembly Instructions Step 2 4 x M5x15 knightgroup.co.nz...
Page 49 Agile Desk - Winder Double Sided with Screen Page 49 Assembly Instructions Assembly Instructions Step 3 8 x ST5.0x23 4 x Stabilizing Bracket knightgroup.co.nz...
Page 50 Agile Desk - Winder Double Sided with Screen Page 50 Assembly Instructions Assembly Instructions Completed knightgroup.co.nz...
Page 51 Agile Desk - Winder Double Sided with Cable Tray Page 51 Assembly Instructions Assembly Instructions Parts knightgroup.co.nz...
Page 52 Agile Desk - Winder Double Sided with Cable Tray Page 52 Assembly Instructions Assembly Instructions Step 1 knightgroup.co.nz...
Page 53 Agile Desk - Winder Double Sided with Cable Tray Page 53 Assembly Instructions Assembly Instructions Step 2 knightgroup.co.nz...
Page 54 Agile Desk - Winder Double Sided with Cable Tray Page 54 Assembly Instructions Assembly Instructions Step 3 knightgroup.co.nz...
Page 55 Agile Desk - Winder Double Sided with Cable Tray Page 55 Assembly Instructions Assembly Instructions Step 4 knightgroup.co.nz...
Page 56 Agile Desk - Winder Double Sided with Cable Tray Page 56 Assembly Instructions Assembly Instructions Step 1 - Power & Data Plate 2 x Power Plate 2 x Data Plate 10 x Screws knightgroup.co.nz...
Page 57 Agile Desk - Winder Double Sided with Cable Tray Page 57 Assembly Instructions Assembly Instructions Step 2 - Power & Data Plate knightgroup.co.nz...
Page 58 Agile Desk - Winder Return Right Hand Page 58 Assembly Instructions Assembly Instructions Parts x Foot 1 x Support Bar 1 x Drive Bar 1 x Return Leg 2 x Levelling Foot 4 x M8x25 5 x ST5x23 4 x M8x10 knightgroup.co.nz...
Page 59 Agile Desk - Winder Return Right Hand Page 59 Assembly Instructions Assembly Instructions Step 1 2 x M8x10 knightgroup.co.nz...
Page 60 Agile Desk - Winder Return Right Hand Page 60 Assembly Instructions Assembly Instructions Step 2 2 x M8x10 knightgroup.co.nz...
Page 61 Agile Desk - Winder Return Right Hand Page 61 Assembly Instructions Assembly Instructions Step 3 2 x Levelling Foot 4 x M8x25 knightgroup.co.nz...
Page 62 Agile Desk - Winder Return RH Single Sided Desk Page 62 Assembly Instructions Assembly Instructions IMPORTANT! Step 1 REFER TO PAGE 4 OF THE INSTRUCTIONS TO ASSEMBLE THE WINDER SINGLE SIDE DESK FRAME AND TOP. 5 x ST5x23 knightgroup.co.nz...
Page 63 Agile Desk - Winder Return RH Single Sided Desk Page 63 Assembly Instructions Assembly Instructions Step 2 Shown with 1 piece workstation top option knightgroup.co.nz...
Page 64 Agile Desk - Winder Return RH Single Sided Desk Page 64 Assembly Instructions Assembly Instructions Completed knightgroup.co.nz...
Page 65 Agile Desk - Winder Return RH Double Sided Desk Page 65 Assembly Instructions Assembly Instructions IMPORTANT! Step 1 REFER TO PAGE 29 OF THE INSTRUCTIONS TO ASSEMBLE THE WINDER DOUBLE SIDE DESK FRAME AND TOPS. 5 x ST5x23 knightgroup.co.nz...
Page 66 Agile Desk - Winder Return RH Double Sided Desk Page 66 Assembly Instructions Assembly Instructions IMPORTANT! Step 2 REPEAT & MIRROR INSTRUCTIONS ON PAGE 65-66 TO ADD A RIGHT RETURN TO THE OPPOSITE WORKTOP. Shown with 1 piece workstation top option knightgroup.co.nz...
Page 67 Agile Desk - Winder Return RH Double Sided Desk Page 67 Assembly Instructions Assembly Instructions Completed knightgroup.co.nz...
Page 68 Agile Desk - Winder Return Left Hand Page 68 Assembly Instructions Assembly Instructions Parts x Foot 1 x Support Bar 1 x Drive Bar 1 x Return Leg 2 x Levelling Foot 4 x M8x25 5 x ST5x23 4 x M8x10 knightgroup.co.nz...
Page 69 Agile Desk - Winder Return Left Hand Page 69 Assembly Instructions Assembly Instructions Step 1 2 x M8x10 knightgroup.co.nz...
Page 70 Agile Desk - Winder Return Left Hand Page 70 Assembly Instructions Assembly Instructions Step 2 2 x M8x10 knightgroup.co.nz...
Page 71 Agile Desk - Winder Return Left Hand Page 71 Assembly Instructions Assembly Instructions Step 3 2 x Levelling Foot 4 x M8x25 knightgroup.co.nz...
Page 72 Agile Desk - Winder Return LH Single Sided Desk Page 72 Assembly Instructions Assembly Instructions IMPORTANT! Step 1 REFER TO PAGE 4 OF THE INSTRUCTIONS TO ASSEMBLE THE WINDER SINGLE SIDE DESK FRAME AND TOP. 5 x ST5x23 knightgroup.co.nz...
Page 73 Agile Desk - Winder Return LH Single Sided Desk Page 73 Assembly Instructions Assembly Instructions Step 2 Shown with 1 piece workstation top option knightgroup.co.nz...
Page 74 Agile Desk - Winder Return LH Single Sided Desk Page 74 Assembly Instructions Assembly Instructions Completed knightgroup.co.nz...
Page 75 Agile Desk - Winder Return LH Double Sided Desk Page 75 Assembly Instructions Assembly Instructions IMPORTANT! Step 1 REFER TO PAGE 29 OF THE INSTRUCTIONS TO ASSEMBLE THE WINDER DOUBLE SIDE DESK FRAME AND TOPS. 5 x ST5x23 knightgroup.co.nz...
Page 76 Agile Desk - Winder Return LH Double Sided Desk Page 76 Assembly Instructions Assembly Instructions IMPORTANT! Step 2 REPEAT & MIRROR INSTRUCTIONS ON PAGE 75-76 TO ADD A LEFT RETURN TO THE OPPOSITE WORKTOP. Shown with 1 piece workstation top option knightgroup.co.nz...
Page 77 Agile Desk - Winder Return LH Double Sided Desk Page 77 Assembly Instructions Assembly Instructions Completed knightgroup.co.nz...
