Summary of Contents for Knight Anvil Eclipse Workstation

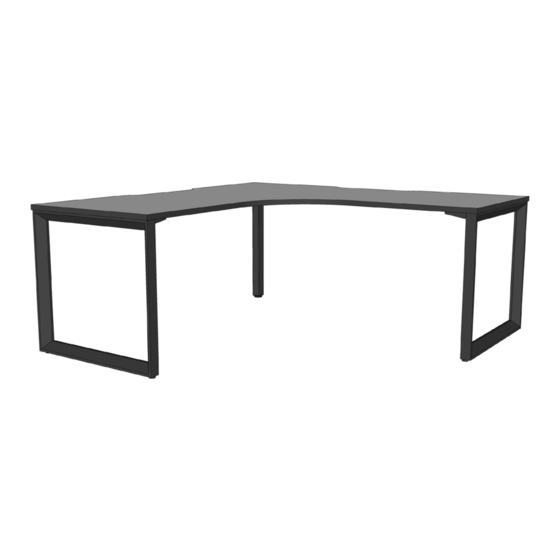

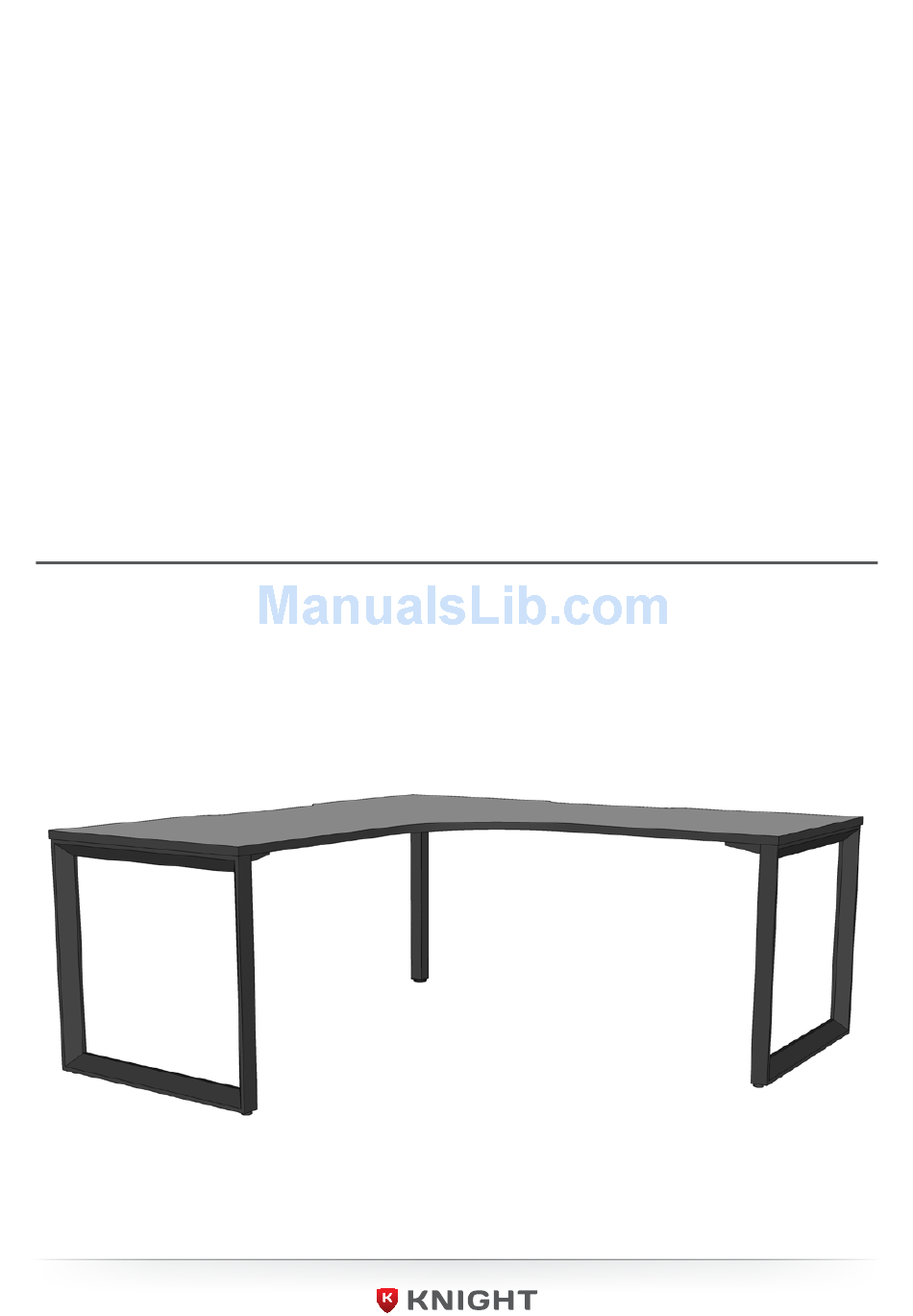

- Page 1 Anvil Eclipse Workstation Assembly Instructions Tools Required: Powered screwdriver.
- Page 2 Anvil Eclipse Workstation Page 2 Assembly Instructions · To prevent possible scratches or damage, assemble the desk upside down on a soft surface such as a blanket, carpet or packaging. · Attach Leg to the top assembly by using bolts, spring washer, flat washer.
- Page 3 Anvil Eclipse Workstation Page 3 Assembly Instructions Step 1 Losely assembly frames and rails together. Step 2 Tighten frames and rails with provided screws. knightgroup.co.nz...
- Page 4 Anvil Eclipse Workstation Page 4 Assembly Instructions Step 3 Fix desk frame to worktop, allowing for a 5mm overhang on all sides. Fully tighten worktop and frame with provided screws. Desk Top Desk Top Self-tapping Desk Screw Frame Back Rail...
- Page 5 Anvil Eclipse Workstation Page 5 with Modesty Panel (Optional) Assembly Instructions Step 1 Lay modesty panels on flat surface, fasten brackets to modesty panles with provided screws. Step 2 Position the modesty panels in front of the rails, fully tighten the modesty panels to the worktop with provided self-tapping screws.
- Page 6 Anvil Eclipse Workstation Page 6 with e-Panel Screen Optional Assembly Instructions Step 1 Clamp the e-Panel screen brackets onto worktop, tighten with provided self-tapping screws. Step 2 Slide the e-Panel screens into brackets and tighten brackets by using allen key.
- Page 7 Anvil Eclipse Workstation with Basket Cable Trays (Optional) Assembly Instructions Step 1 Hold the basket cable trays perpendicular to the worktop, tighten cable trays to worktop using the provided self-tapping screws. Completed knightgroup.co.nz...
