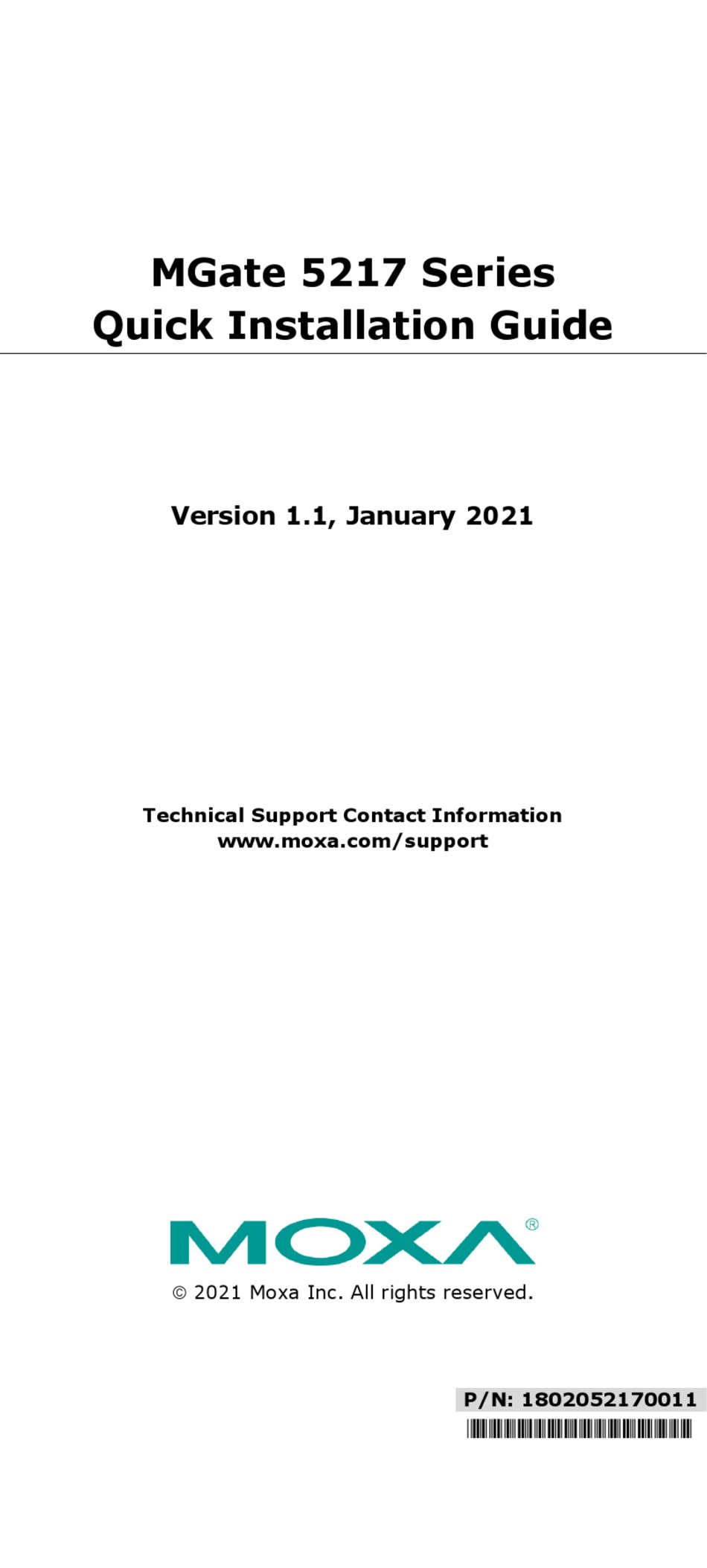

- Page 1 MGate 5217 Series Quick Installation Guide Version 1.1, January 2021 Technical Support Contact Information www.moxa.com/support 2021 Moxa Inc. All rights reserved. P/N: 1802052170011 *1802052170011*...

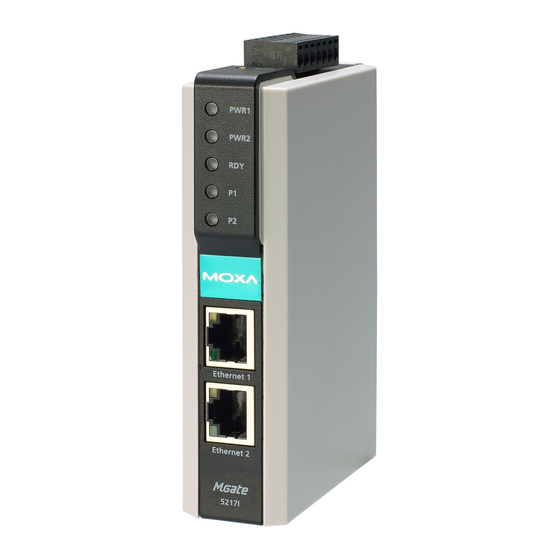

- Page 2 Overview The MGate 5217 is an industrial Ethernet gateway to bring Modbus RTU/ASCII/TCP devices to BACnet/IP network. Package Checklist Before installing the MGate 5217, verify that the package contains the following items: • 1 MGate 5217 gateway • Quick installation guide (printed) •...
- Page 3 Panel Layouts The MGate 5217 has two RJ45 Ethernet ports and two DB9 serial ports for connecting to devices. - 3 -...
- Page 4 Class II construction. Wall or Cabinet Mounting Mounting the MGate 5217 Series on to a wall requires two screws. The heads of the screws should be 5 to 7 mm in diameter, the shafts should be 3 to 4 mm in diameter, and the length of the screws should be more than 10.5 mm.
- Page 5 Wallmount DIN Rail WARNING The MGate 5217 shall be mounted at a height less than 2 meters. Pull-high, Pull-low, and Terminator for RS-485 When you remove the MGate 5217’s top cover, you will find the DIP switches to adjust each serial port’s pull-high resistor, pull-low resistor, and terminator.
- Page 6 Pin Assignments Ethernet Port (RJ45) Signal Serial Port (DB9 Male) RS-422/ RS-232 RS-485 (2W) RS-485 (4W) TxD- – TxD+ – RxD+ Data+ RxD- Data- – – – – – – – – – Power Input and Relay Output Pinouts V2+L V2-N V1+L V1-N...
- Page 7 WARNING If the battery is replaced with the wrong type, the risk of an explosion is highly likely. - 7 -...
