HYPERVSN MS Operating Manual

High-definition 3d holographic emulating device
Hide thumbs Also See for MS:
Table of Contents

Advertisement

Quick Links

See Extraordinary
OPERATING MANUAL
Integrated 3D Holographic Display System
© Copyright 2019 HYPERVSN. All rights reserved
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS and is the answer not in the manual?

Questions and answers

Related Manuals for HYPERVSN MS

Summary of Contents for HYPERVSN MS

  • Page 1 See Extraordinary OPERATING MANUAL Integrated 3D Holographic Display System © Copyright 2019 HYPERVSN. All rights reserved...

  • Page 2: Table Of Contents

    9. TECHNICAL MAINTENANCE ............34 10. SAFETY PROVISIONS ............... 36 11. MAINTENANCE, WARRANTY AND DISPOSAL ......38 11.1 MAINTENANCE ................38 11.2 WARRANTY ..................38 11.3 DISPOSAL ..................38 12. SPECIAL REQUIREMENTS ............... 39 M01MS06 © Copyright 2019 HYPERVSN. All rights reserved...
  • Page 3 WARNING! This Operating Manual must be thoroughly read and understood before installation, operation and use of HYPERVSN Device. This Operating Manual is designed as a general guide for HYPERVSN Models MS and MS-L (product marketing name: High-definition 3D holographic emulating device, hereinafter referred to as, the “Device”).

  • Page 4: Device Overview

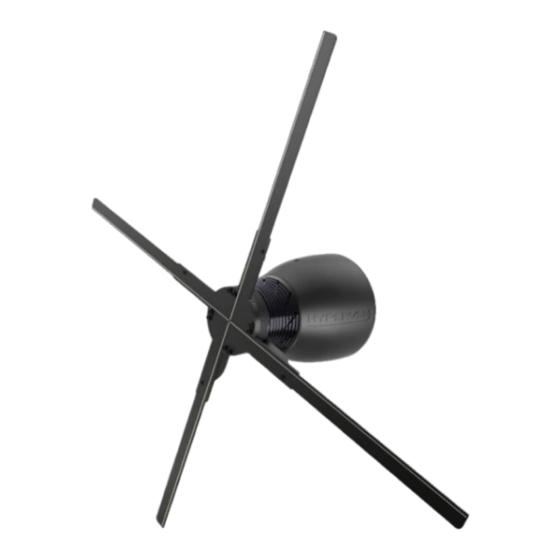

    The Device’s spinning rays create a surface on which 3D video content can be • displayed. The Device displays holographic visuals up to 56cm in size (model MS - with 56cm • rays) or up to 75cm in size (model MS-L - with 75cm rays).
  • Page 5 Key components • Rotor (with four rays), • Stator, Wall bracket, • • Remote control (if included). ROTOR rays shaft STATOR indicators WALL BRACKET Picture 2. Device components Picture 3. Remote control (if included) © Copyright 2019 HYPERVSN. All rights reserved...
  • Page 6 Note. The HYPERVSN Dome is an optional Device accessory (Picture 4). It is designed to prevent possible damage to the Device and to provide safety to viewers. This add-on is particularly important in instances, where the Device is going to be mounted lower than the specified precautionary height.

  • Page 7: Technical Specifications

    Input AC frequency 50/60Hz 50/60Hz Net weight 2.8kg 2.9kg Noise figure on the Device axis 45Db 50Db (1m from the Device) ceramic 4A ceramic 4A Fuse 250VAC 5X20mm 250VAC 5X20mm Power cable length © Copyright 2019 HYPERVSN. All rights reserved...
  • Page 8 CR2032, 3V The Device has Class B electromagnetic compatibility. The Device is to be connected to single-phase alternating current mains (with 100-240V voltage and 50/60Hz frequency) and can be operated continuously while plugged in. © Copyright 2019 HYPERVSN. All rights reserved...

  • Page 9: Package Contents

    This set of tools and fittings listed above are intended for the mounting of the Device onto the wall bracket supplied with the Device. In the event that the Device will be installed with another HYPERVSN accessory, see the Operating Manual for these instructions.

  • Page 10: Device Installation Areas

    Please carefully read the requirements below to achieve optimal holographic effects from the Device, ensuring that your visuals appear to be floating in mid-air: It is not recommended to install the Device under direct sunlight or light from lighting fixtures. © Copyright 2019 HYPERVSN. All rights reserved...
  • Page 11 Devices side by side; and in premises over 200 square meters and with ceilings 5m high it is recommended to install at least three Devices side by side. The recommended Device installation angle is 90° to the mounting surface. © Copyright 2019 HYPERVSN. All rights reserved...

  • Page 12: Device Assembly

    The rays should not have any cracks or other visual damage. The stator should not have any dents in it. • Contact your supplier if you notice any irregularities during the visual check. © Copyright 2019 HYPERVSN. All rights reserved...
  • Page 13 There are two types of the rays – A and B. The appropriate markings (A or B) are located on the rotor and on the rays. Match them respectively. Attention. Do not tighten the M2,5x5 screws too much, to avoid deforming the rays. © Copyright 2019 HYPERVSN. All rights reserved...

  • Page 14: Device Installation

    6. DEVICE INSTALLATION Note. The following procedure describes the installation of the Device with the HYPERVSN wall bracket (supplied with the Device). In the event that the Device will be installed with another HYPERVSN accessory, see the Operating Manual for these instructions.
  • Page 15 PH2 screwdriver (Picture 8, step 4). Attention. The proper Device installation angle is 90° to the mounting surface. When the Device is mounted, the shaft axis should be parallel to the ground. © Copyright 2019 HYPERVSN. All rights reserved...

  • Page 16: Overview Of Device Operating Modes

    Setup (Hotspot) mode In the Setup (Hotspot) mode the Device creates a wireless network in close proximity to the Device. The network name is hypervsn-YYXXXXX, where YYXXXXX is a 7-digit serial number located on the base of the rotor. In this mode the Device displays the “BEGIN BY UPLOADING YOUR 3D MEDIA” message (Picture 10), if there is no content uploaded onto the Device or if media playback has stopped.

  • Page 17: Switching The Device On And Off

    The Device must always be switched off and the rays completely • stationary before you change the Device operation mode (by moving the mode switches). Important. When moving the Device, do not hold onto the rays. If mishandled, they can be easily broken. © Copyright 2019 HYPERVSN. All rights reserved...

  • Page 18: Status Indicators Of The Device

    7.3 STATUS INDICATORS OF THE DEVICE The Device’s status can be determined based off of the activity displayed on the three indicators on the base of the stator. Picture 13. Device status indicators © Copyright 2019 HYPERVSN. All rights reserved...
  • Page 19 Emergency stop. The rays have been touched during their rotation. The red and 1. The rotor or the stator is out of order. the green 2. The rotor of model M is attached to the stator of model MS/ indicators MS-L. are blinking Attention.

  • Page 20: Device Initial Activation

    Upon purchase, each customer receives a personal email invitation. If you have not received this, kindly contact your dealer or HYPERVSN customer service. Click Set my password in the email invitation you received or open your browser and paste the specified link into the address bar.
  • Page 21 Enter your password, confirm it, acknowledge that you have read the Privacy Notice (check I’ve read the Privacy Notice) and click Log in. The next page will open: Picture 16. CMS login page © Copyright 2019 HYPERVSN. All rights reserved...
  • Page 22 The first seven fields contain information about your company. If any of the information is incorrect, click Edit profile and edit the data, then go to the next step. This can also be done after completing the Device installation. © Copyright 2019 HYPERVSN. All rights reserved...
  • Page 23 (move the mode switches). Turn the Device on again. The Device will start to display the “HYPERVSN” logo. After a few seconds the “BEGIN BY UPLOADING YOUR 3D MEDIA” and “PLEASE ACTIVATE THE DEVICE” messages will start to alternate on the Device.
  • Page 24 Picture 21. Messages that you should see before activation Navigate to the Wi-Fi settings on your laptop or any other device. The Wi-Fi network “hypervsn-YYXXXXX” will appear in 1-2 minutes in the list of available networks. Picture 22. Example of a list of available networks Connect to the “hypervsn-YYXXXXX”...
  • Page 25 Picture 26. Form for the Device calibration If you have already mounted the Device on a wall, the calibration procedure may be performed at this step. Otherwise it should be performed later, after completing the initial activation procedure. © Copyright 2019 HYPERVSN. All rights reserved...
  • Page 26 Picture 28. Step of the activation procedure Enter the required information for the Wi-Fi network that you plan to use with the Device. Click Save Network. Any number of networks may be used. © Copyright 2019 HYPERVSN. All rights reserved...
  • Page 27 Login: example login example * * * * * login * * * * * Distance to the router: up to 3m. >3 m Wi-Fi frequency: 2.4GHz. 2.4 GHz 5.0 GHz © Copyright 2019 HYPERVSN. All rights reserved...
  • Page 28 Hotspot. Please note that your service provider may charge a fee for using the Hotspot. Click Activate (Picture 29) and look at the Device. The Device will start the booting animation. Picture 30. Booting animation on the Device © Copyright 2019 HYPERVSN. All rights reserved...
  • Page 29 SSID that you have entered at step 15. Picture 32. Activation error message If Wi-Fi network or Internet connection is not available, the following message will be displayed on the Device. Picture 33. “No internet” message © Copyright 2019 HYPERVSN. All rights reserved...
  • Page 30 11). If the Device is successfully connected to an Internet-enabled Wi-Fi network (set up at step 15), it is ready to be used and will be displayed in your personal account at https://hypervsn.com/platform/devices. © Copyright 2019 HYPERVSN. All rights reserved...
  • Page 31 Picture 36. “My Devices” button You will see the Device that you have just activated, along with a list of your activated previously Devices (if any). “i” button LIST OF DEVICES Picture 37. “My Devices” tab © Copyright 2019 HYPERVSN. All rights reserved...
  • Page 32 If any of the data is incorrect, choose Edit information in the open window (Picture 39), edit the data, click Save. After all of these steps have been completed you will be able to create a media campaign and upload your content. © Copyright 2019 HYPERVSN. All rights reserved...
  • Page 33 Go to the Dashboard and select the suitable guides to receive detailed instructions on how to manage the Device and the CMS. Picture 40. HYPERVSN tutorials © Copyright 2019 HYPERVSN. All rights reserved...

  • Page 34: Technical Maintenance

    (the binding screw is spring-loaded). Picture 41. Unscrewing the binding screw and removing the rotor from the shaft Remove the rotor from the shaft carefully, avoiding any damage to the rays. © Copyright 2019 HYPERVSN. All rights reserved...
  • Page 35 Tighten the binding screw until it stops by turning it to the right. Attention. If the assembly steps are performed correctly, there will not be any backlash of the stator or rotor elements. © Copyright 2019 HYPERVSN. All rights reserved...

  • Page 36: Safety Provisions

    Do not touch the Device while the rays are rotating under ANY circumstances. rays on the rotor become effectively invisible, which could pose a danger and cause injury. Since the HYPERVSN Display relates to TYPE A pluggable equipment it is • necessary to have an easy-to-reach socket nearby.
  • Page 37 The user shall bear full responsibility for ensuring that the Device is utilized in a safe manner and compliant with all specified safety measures as well as local laws and requirements. © Copyright 2019 HYPERVSN. All rights reserved...

  • Page 38: Maintenance, Warranty And Disposal

    Instead, please transfer it to an electric equipment recycling center for proper disposal. By adhering to disposal regulations, one can prevent causing potential damage to the environment resulting from mishandling this type of waste disposal. © Copyright 2019 HYPERVSN. All rights reserved...

  • Page 39: Special Requirements

    Attention. No changes shall be made to the Device without the manufacturer’s permission as it may void the user’s authority to operate the Device. © Copyright 2019 HYPERVSN. All rights reserved...
  • Page 40 2nd Floor Soho Wharf 1 Clink Street London SE1 9DG United Kingdom + 44 208 0685 328 info@hypervsn.com...

This manual is also suitable for:

Ms-l
