Technical Data - Stern Engineering QUADRAT Series Installation And Maintenance Manual

INDEX
1

TECHNICAL DATA

2 -4 PACK CONTENTS
5 PRE-INSTALLATION INFORMATION
6-17 FAUCET INSTALLATION
18-20 SETTINGS ADJUSTMENT
21 BATTERY REPLACEMENT INSTRUCTIONS
22 MAINTENANCE
23 SPARE PARTS
24 LIMITED WARRANTY
25 TROUBLESHOOTING
The information in this document reflects products at the date of printing. Stern Engineering Ltd reserves the right, subject to all applicable laws, at any time, at its sole discretion,
and without notice, to discontinue or change the features, designs, materials and other specifications of its products, and to either permanently or temporarily withdraw any of the
forgoing from the market. All information in this document is provided "as is" without warranty of any kind, either expressed or implied, including but not limited to any implied
warranties of merchantability, fitness for a particular purpose, or non-infringement. Stern Engineering Ltd assumes no responsibility for errors or omissions in the information
presented in this document. In no event shall Stern Engineering Ltd be liable for any special, incidental, indirect or consequential damages of any kind, or any damages whatsoever
arising out of or in connection with the use or performance of this information. The tradenames, trademarks, logos and service marks presented in this document, including their
design, are the property of Stern Engineering Ltd or other third parties and you are not permitted to use them without the prior written consent of Stern Engineering Ltd or such third
party as may own them.

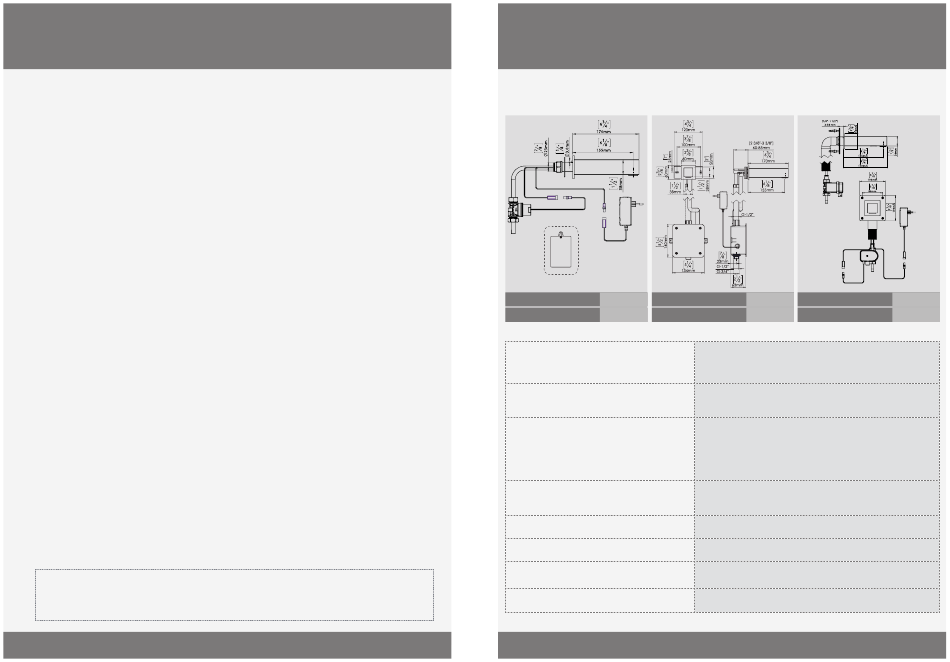

TECHNICAL DATA
QUADRAT B QUADRAT B 351100 QUADRAT QUADRAT 2030
351200
QUADRAT E QUADRAT E QUADRAT 2030 QUADRAT
Power supply for battery versions:
Power supply for electricity versions:
Recommended water pressure:
Sensor range:
Minimum sensor range:
Maximum sensor range:
Security time:
Hot water temperature:
2030 B B 351300 QUADRAT DPB QUADRAT DPB
351400
2030 E E QUADRAT DPE QUADRAT DPE
6x1.5V AA battery (Quadrat B)
1X9V battery (Quadrat 2030B, Quadrat DPB)
9V transformer (Quadrat E, DPE, 2030 E models)
0.5-8.0 bar (7-116 PSI)
With water pressure of more than 8 bars, use
a pressure reducing valve for reduction
Self-adjusting sensor
Adjustable with remote control
35mm / 1.38"
300mm / 11.81"
90 seconds. Can be reduced with optional remote
control
Max. 70ºC
351120
351220
1
