- Page 1 INSTALLATION AND MAINTENANCE GUIDE EXTREME BRE / TRENDY BRE E L E C T R O N I C A L LY O P E R AT E D S E L F- C L O S I N G FA U C E T EXTREME BRE TRENDY BRE...
- Page 2 I N DEX TECHNICAL DATA PACK CONTENTS PRE-INSTALLATION INFO FAUCET INSTALLATION SETTINGS ADJUSTMENT Adjusting the sensor settings with a remote control MAINTENANCE Filters cleaning instructions Care and cleaning of chrome and special finishes SPARE PARTS LIST LIMITED WARRANTY TROUBLE SHOOTING 12-13 9V transformer Power supply:...
-
Page 3: Technical Data

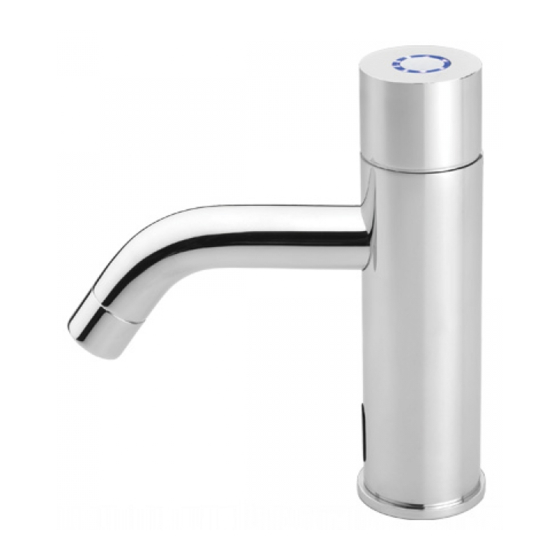

TE CHN ICAL DATA Trendy BRE 239105 Extreme BRE 237305 Extreme 1000 BRE 237005 Trendy 1000 BRE 239305 OPERATION BRE Versions feature permanent ring illumination. When a user places his hands within the sensor range the faucet is activated automatically. The water will flow until the user removes his hands from the sensor range. -
Page 4: Pack Contents
PACK CO NTENT S Familiarize yourself with the part names and confirm that the parts are included. 1x Faucet and attachments Trendy 1000 BRE Trendy BRE 1 x Filter 2 x Filters 1 x Transformer Optional: IP68 Encapsulated Transformer... - Page 5 PACK CO NTENT S 1x Faucet and attachments Extreme 1000 BRE Extreme BRE 1 x Filter 2 x Filters 1 x Transformer Optional: IP68 Encapsulated Transformer...
-
Page 6: Pre-Installation Info
PRE-INSTALLATION INFO Check contents Separate all parts from the packaging and check each part with the “Pack contents” section. Pay attention to the different models variations. Make sure all parts are accounted for before discarding any packaging material. If any parts are missing, do not attempt to install your electronic faucet until you obtain the missing parts. -
Page 7: Faucet Installation
FAUC ET IN STALL AT I O N Step 1 – Preparation for mounting the faucet Shut off the water supply and remove the hexagonal nut, the disk and the gasket. Do not remove the O-ring from the base of the faucet. Step 2 –... - Page 8 FAUC ET IN STALL AT I O N Step 3 – Connecting the water supply 1. a. Connect the flexible pipe to the water supply. b. For models with temperature control connect the red flexible pipe to the hot water supply and the blue flexible pipe to the cold water supply.
-
Page 9: Settings Adjustment
SETTINGS ADJUSTMENT DELAY OUT TIME DETECTION RANGE TEMPORARY OFF FUNCTION SECURITY TIME R E S E T Adjusting the settings with the remote control If necessary, the sensor settings can be adjusted as following: Shut off the water supply. In order to adjust the sensor with the remote control, hold the remote control straight in front of the sensor in a distance of about 6-8”... - Page 10 SETTINGS ADJUSTMENT DETECTION RANGE: The sensor range is the greatest distance that an object can be away from the sensor to activate the faucet. The sensor is factory preset. To adjust the sensor range press + to increase detection range and –...
-
Page 11: Maintenance
M A INTEN ANCE Filter cleaning instructions This faucet is provided with one / two stainless steel filter(s) preventing foreign particles to enter the lines. If the water flow has decreased, this can be because the filter(s) is/are clogged. The filter(s) can be cleaned as follows: 1. -
Page 12: Spare Parts List
S PA RE PARTS LIST Seals and screws kit Trendy BRE Cat.No. 07210007 Seals and screws kit Extreme BRE Cat.No. 07210019 Sensor kit Cat.No. 07220152 Solenoid valve kit Cat.No. 07230003 Cover Kit Cat.No. 07270084 Transformer Cat.No. 06522047 Optional accessories: Back Up Device Cat.No. -
Page 13: Limited Warranty
If a defect is found in normal use, Y. Stern Engineering Ltd. will, at its discretion, repair, provide a replacement part or product, or make appropriate adjustments. Damage caused by accident, misuse, or abuse is not covered by this warranty. -
Page 14: Troubleshooting
TR O UBLE SHOOTI N G PROBLEM INDICATOR CAUSE SOLUTION Range is too short. Increase the range. Range is too long. Decrease the range. Unit is in “Security Red light in the Mode”* sensor does not flash once when user’s Sensor is picking up hands are within the reflections from the... - Page 15 TR O UBLE SHOOTI N G PROBLEM INDICATOR CAUSE SOLUTION Sensor flashes Clean the orifice or Debris or scale in once when user’s replace diaphragm. diaphragm. hands are within the sensor’s range Water flow from Sensor is dirty or Clean or eliminate case spout does not covered.** of interference.
- Page 16 15 Gan Rave Blvd., 81222 Gan Rave, Yavne, Israel Tel: 972-8-9326000, Fax: 972-8-9326025, export@sternfaucets.com www.sternfaucets.com...
