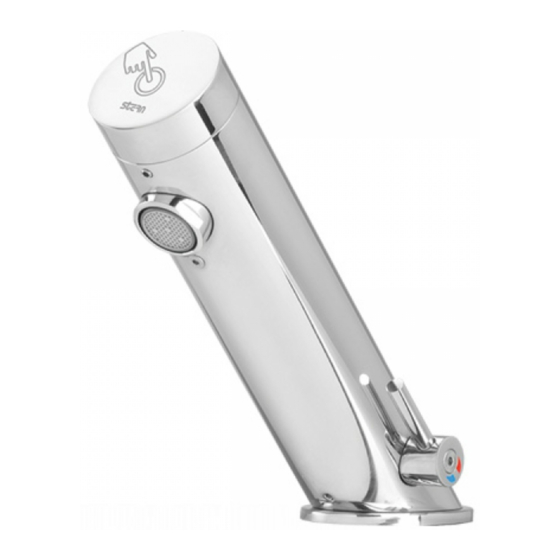

- Page 1 InstallatIon and MaIntenance GuIde GREEN timE & GREEN timE 1000 E L E C T R O N I C L A V A T O R Y F A U C E T...
- Page 2 I N DEX tecHnIcal data PacK contents PRe InstallatIon InFoRMatIon Faucet InstallatIon FloW tIMe adJustMent loW BatteRY IndIcatoR BatteRY RePlaceMent InstRuctIons MaIntenance Filter cleaning instructions care and cleaning of chrome and special finishes seRVIce cHecK lIst sPaRe PaRts lIst lIMIted WaRRantY TECHNICAL DATA Product control: touch using Piezo technology...
-
Page 3: Technical Data
TE chN Ical DaTa Green time B 225910 Green time 225910 Green time e 225970 Green time 1000 225810 Green time 1000 B 225880 Green time 1000 e 225830... - Page 4 Pack co NTENT s Familiarize yourself with the part names and confirm that the parts are included. G r e e n time 1x allen key 1x tap and attachments with internal battery 1x Filter Green time B / e 1x allen key b V E R S I O N S E V E R S I O N S...
- Page 5 Pack co NTENT s G r e e n time 10 0 0 1x allen key 1x tap and attachments with internal battery 2 x Filters Green time 1000 B / e 1x allen key 1x tap and b V E R S I O N S E V E R S I O N S attachments 9V Battery box...
-
Page 6: Pre Installation Info
PRE INsTallaTIoN INFo Check contents separate all parts from the packaging and check each part with the Pack contents section. Pay attention to the different models variations. Make sure all parts are accounted for before discarding any packaging material. If any parts are missing, do not attempt to install this electronic faucet until you obtain the missing parts. -
Page 7: Faucet Installation
Fauc E T INsTa ll aTI o N Step 1 – Remove all mounting hardware shut off water supply and remove the hexagonal nut, the disk and the gasket. do not remove the o-ring from the base of the faucet. Step 2 –... - Page 8 F loW T IME aD Ju sT ME NT Adjustment levels the flow time is programmable on site. If necessary, the default flow time of 8 seconds can be adjusted to any value between 1 to 60 seconds. the Green time adjustment mechanism is composed of 3 adjustment levels for changing the flow time.
- Page 9 FloW TIME aDJusTMENT How to adjust the flow time at Green Time 1) open the piezo cup using the provided 2 mm allen key. 2) disconnect the internal battery. 3) touch the piezo cap twice. 4) then, reconnect the battery. 5) the indicator light (led) on the back of the Piezo cap will start blinking.
-
Page 10: Low Battery Indicator
loW BaTTERY INDIcaToR the Green time faucet has an advanced battery level management system consisting of two steps: Step 1 the battery still has enough power to open and close the solenoid valve. at this first step the battery level management system allows the solenoid valve to open and close but will activate a warning indicator light. -
Page 11: Battery Replacement
BaTTERY REPlacEMENT To replace the battery in Green Time: 1) turn off the shut off valve. 2) Remove the faucet cover with the supplied allen key. 3) Release the screw and remove the cover. 4) disconnect the connector coming from the faucet cover to the battery. 5) Replace the used battery with a new 9V battery. -
Page 12: Maintenance
MaINTENaNcE Filter cleaning instructions this faucet is provided with one or two stainless steel filter/s preventing foreign particles to enter the lines. If the water flow has decreased, this may be because the filter is clogged. the filter can be cleaned as follows: 1. - Page 13 s ERvIcE chEck l IsT check the batteries. low or used up batteries. Replace the batteries. see page 9. check the flow time. see page 6. check the connection between the piezo cap connector and the solenoid connector. check that the battery box is correctly connected. check the solenoid valve.
- Page 14 s Pa R E PaRTs lIsT GREEN TIME, GREEN TIME b, GREEN TIME E: PA R T N A M E PART CODE Interoperable solenoid Valve 07500065 seals and screws Kit 07210082 cover Kit for Green time 07270085 cover Kit for Green time B \ e 07270110 9V Battery box 06520008...
-
Page 15: I Mi Ted Warrant Y
If a defect is found in normal use, Y. stern engineering ltd. will, at its discretion, repair, provide a replacement part or product, or make appropriate adjustments. damage caused by accident, misuse, or abuse is not covered by this warranty. - Page 16 15 Gan Rave Blvd., 81222 Gan Rave, Yavne, Israel 15 Gan Rave Blvd., 81222 Gan Rave, Yavne, Israel tel: 972-8-9326000, Fax: 972-8-9326025, export@sternfaucets.com tel: 972-8-9326000, Fax: 972-8-9326025, export@sternfaucets.com www.sternfaucets.com www.sternfaucets.com...
