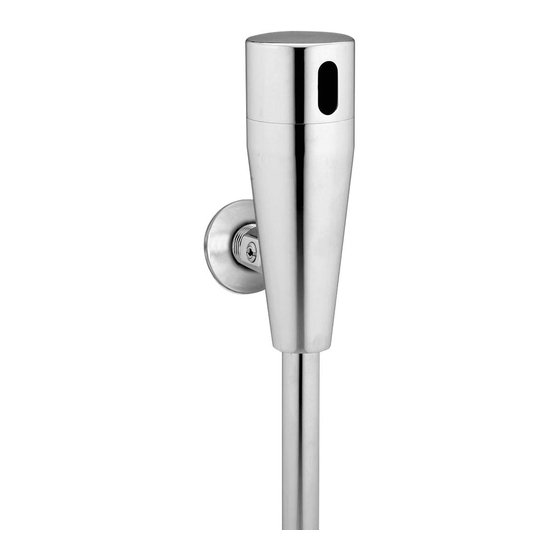

- Page 1 free eLeCTrONIC fLUSH VALVe fOr UrINAL INSTALLATION AND MAINTENANCE GUIDE...
-
Page 2: Technical Data
INDeX TeCHNICAL DATA TECHNICAL DATA PACK CONTENTS PRE- INSTALLATION INFORMATION FLUSH VALVE INSTALLATION SETTINGS ADJUSTMENT BATTERY REPLACEMENT MAINTENANCE Filter cleaning instructions FREE 113100 FREE E 113200 Care and cleaning of chrome and special finishes Power Supply Internal 9V battery or 9V transformer SPARE PARTS LIST Recommended water pressure 1-8 bar (14.5-116.0 PSI) -
Page 3: Pack Contents
PACK CONTeNTS Pre-INSTALLATION INfO Familiarize yourself with the parts names and confirm that all parts are included. Check contents Separate all parts from the packaging and check each part with the “Pack contents” section. Pay attention to the different models variations. Make sure all parts are accounted for before discarding any packaging material. - Page 4 fLUSH VALVe INSTALLATION fLUSH VALVe INSTALLATION Ensure that the central water supply has been turned off at the corner valve. Ensure that the regulating valve is fully open by turning it anti- clockwise. WALL FLANGE Install the flush valve on the wall connected to the mains water supply.
-
Page 5: Settings Adjustment
SeTTINgS ADJUSTmeNT SeTTINgS ADJUSTmeNT DETECTION RANGE: The sensor range is the greatest distance that an object can be away from the sensor to activate the flush valve. The DETECTION RANGE DELAY OUT TIME sensor is factory preset. To adjust the sensor range press + to increase detection range and – to decrease the detection range of the sensor. -
Page 6: Maintenance
bATTery rePLACemeNT mAINTeNANCe FIlteR CleANINg INStRuCtIoNS Turn off the regulating valve This flush valve is provided with a steel filter preventing foreign particles to enter the lines. If the water flow has decreased, this can be because the filter is clogged. the filter can be cleaned as follows: Unscrew the cover of the electronics 1. -
Page 7: Spare Parts List
Seals and Screws Kit Free E 07210026 If a defect is found in normal use, Y. Stern Engineering Ltd. will, at its discretion, repair, provide a replacement part or product, or make appropriate adjustments. Damage caused by accident, misuse, or abuse is not covered by this warranty. Improper care... -
Page 8: Troubleshooting
TrOUbLeSHOOTINg PRoBleM INdICAtoR CAuSe SolutIoN Valve does not 1. Sensor flashes flush: continuously when Low battery. Replace battery. the user is within the sensor’s range. 1. Range is too short. Increase the range. 2. Range is too long. Decrease the range. 2. - Page 9 777 Passaic Avenue, Clifton NJ,07012, USA 777 Passaic Avenue, Clifton NJ,07012, USA 777 Passaic Avenue, Clifton NJ,07012, USA 777 Passaic Avenue, Clifton NJ,07012, USA Tel: +1-973 773 8011 | Fax: +1-973-779-8768 Tel: +1-973 773 8011 | Fax: +1-973-779-8768 Tel: +1-973 773 8011 | Fax: +1-973-779-8768 Tel: +1-973 773 8011 | Fax: +1-973-779-8768 Toll Free: 1-800-4364410 Toll Free: 1-800-4364410...
