Page 1: Table Of Contents
POWX225 APPLICATION .................. 3 DESCRIPTION (FIG. A) ..............3 PACKAGE CONTENT LIST ............. 3 SYMBOLS ..................4 GENERAL POWER TOOL SAFETY WARNINGS ......4 Working area ......................4 Electrical safety ....................... 4 Personal safety ....................... 4 Power tool use and care ..................5 Service ........................ - Page 2 POWX225 9.5.2 Setting the cutting width (Fig. 9) ................11 Using the table width extension (Fig. 10) ............11 Ripping ........................11 Bevel ripping ......................11 Ripping small pieces .................... 11 9.10 Crosscutting ......................12 9.11 Bevel crosscutting 0° - 45° blade bevel & 90° miter angle ........12 9.12...
-
Page 3: Application

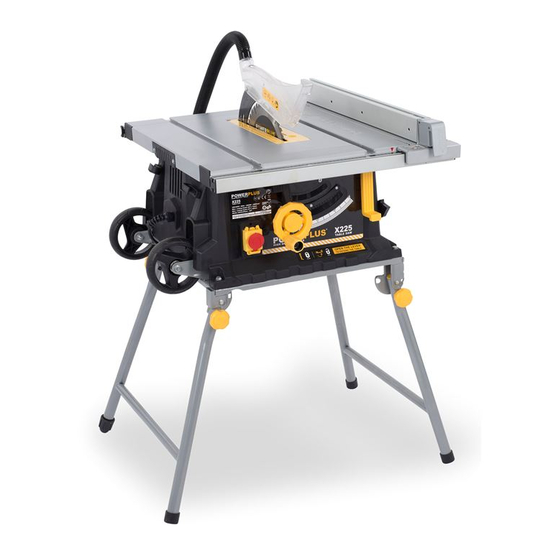

POWX225 TABLE SAW 2200W POWX225 1 APPLICATION The power tool is intended as a stationary machine for making straight lengthways and crossways cuts in wood. Horizontal miter angles as well as vertical bevel angles are possible. The machine is designed with sufficient capacity for sawing hard and softwood as well as press and particle board. -
Page 4: Symbols
POWX225 4 SYMBOLS In this manual and/or on the machine the following symbols are used: Warning / Danger! Wear gloves Wear ear guards and Read manual before use. goggles In accordance with essential applicable safety standards of European directives. 5 GENERAL POWER TOOL SAFETY WARNINGS Read all safety warnings and instructions. -
Page 5: Power Tool Use And Care
POWX225 ▪ Use safety equipment. Always wear eye protection. Using safety equipment such as a dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury. ▪ Avoid accidental starts. Ensure the switch is in the off position before inserting the plug. -
Page 6: Additional Safety Guidelines For Circular Table Saws
POWX225 ▪ Check the extension cables regularly and replace them when they are damaged. ▪ Keep the handles dry, clean and free of oil and grease. ▪ Remove the plug from the socket when the power tool is not in use, before maintenance and when changing tools such as saw blades, drill bits, cutters. - Page 7 POWX225 ▪ Cut work pieces may have sharp edges, ridges or wooden splinters! Danger of cutting injuries! ▪ Always switch the machine off and remove the power plug when your leave the machine. ▪ Never expose the device to rain or extreme moisture! ▪...
-
Page 8: Guidelines For Using Extension Cords
POWX225 Warning! Do not use saw blades made of high-speed steel. ▪ Put the push stick or push block into its storage when not in use. ▪ Use a push stick or push block to feed the workpiece past the saw blade. -
Page 9: Assembling The Blade Guard (Fig 3)
POWX225 ▪ Remove the outer flange and pull the old saw blade from the inner flange, with a diagonally downwards movement. ▪ Carefully clean the saw blade flange with a wire brush before fixing the new saw blade. ▪ Insert the new saw blade in reverse order and tighten it. -
Page 10: Installing The Vacuum Cleaner
POWX225 Installing the vacuum cleaner Please use the dust pipe to attach the vacuum cleaner. 9 OPERATING THE MACHINE ON/OFF paddle switch (fig 6) 9.1.1 Switching On ▪ Push the red EMERGENCY OFF button (a) upward and open the yellow safety flap (b). -
Page 11: Setting The Cutting Width (Fig. 9)
POWX225 ▪ Depending on the thickness of the material to be cut, the higher side of the fence rail (a) has to be used for thick material (work piece thickness above 25 mm) and the lower side of the fence rail for thin material (work piece thickness below 25 mm). -
Page 12: Crosscutting
POWX225 ▪ When ripping a small work piece, it is not safe to place the hand between the blade and the rip fence. Use one or more push sticks to push the work piece completely past the blade. 9.10 Crosscutting ▪... -
Page 13: Cleaning And Maintenance
POWX225 11 CLEANING AND MAINTENANCE Before performing any work on the equipment, pull the power plug. 11.1 Cleaning ▪ Keep the ventilation slots of the machine clean to prevent overheating of the engine. ▪ Regularly clean the machine housing with a soft cloth, preferably after each use. -
Page 14: Technical Data
POWX225 Sympton Possible causes Corrective action Clean the table with turpentine There is gum or pitch on the and coarse steel wool and apply a table causing erratic feeding. coat of automotive polishing wax. The rip fence is out of Align the rip fence with the miter alignment. -
Page 15: Noise
We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool. ▪ Repairs may only be carried out by an authorised customer service centre for Powerplus tools. ▪ You can always obtain more information at the number 00 32 3 292 92 90. -
Page 16: Declaration Of Conformity
POWX225 17 DECLARATION OF CONFORMITY VARO N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that, product: Table saw 2000W trade mark: POWERplus model: POWX225 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards.
