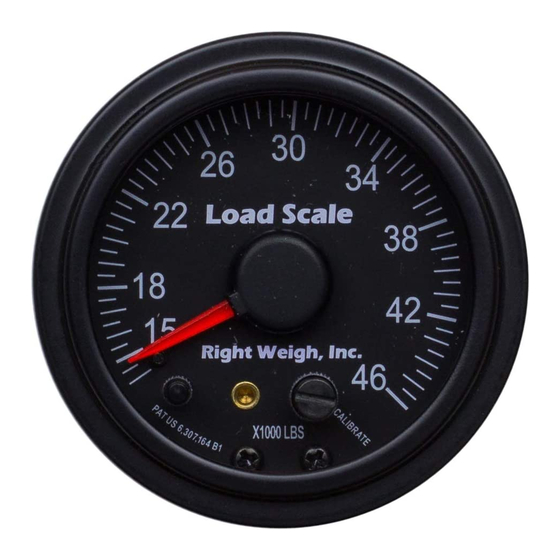

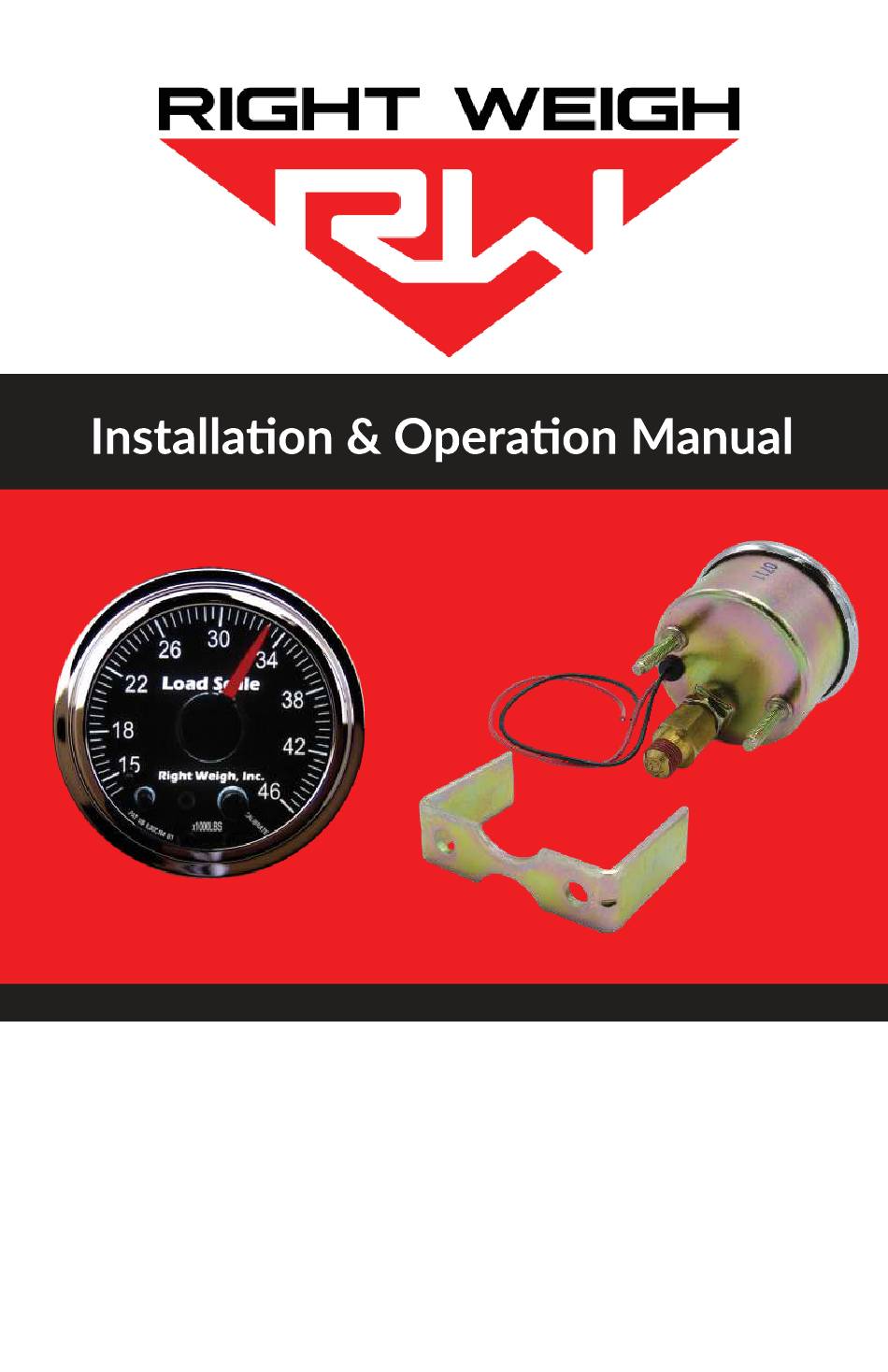

- Page 1 ONBOARD LOAD SCALE INTERIOR ANALOG 510 Series...
- Page 2 IMPORTANT! Please read instructions COMPLETELY and thoroughly before installation. Right Weigh, Inc. is not responsible or liable for product failure or vehicle damage due to improper installation. The installation requirements are outlined in this manual and should be followed thoroughly to avoid inaccuracy or damage to the product.
-
Page 3: Table Of Contents
CONTENTS Parts Requried Specifications & Overview Scale Installation Calibration and Operation Troubleshooting Warranty Statement Return Policy & Repairs... -
Page 4: Parts Requried
PARTS REQUIRED These parts are included in the 510-RK (Retail Kit) products and are sold separately in the 101-SK kit: 1/8” Female NPT to 1/4” Tube Fitting Stright or elbow configuration, to connect the air line to the back of the gauge Street Tee Fitting The thread size and type should match... -
Page 5: Specifications & Overview
2.06” 1.49” 0.26” The 510 series is designed for use on an air suspension axle group with one height control valve. Within this series, there are different products designed for different axle group configurations. Before installation, make sure you have... -
Page 6: Scale Installation
SCALE INSTALLATION The 510 series scale is designed to be mounted inside the vehicle cabin, it is not for outdoor use. The following steps will walk you through how to correctly install the gauge. CHOOSE MOUNTING LOCATION The gauge can be mounted in the dash panel either using an existing factory gauge hole or by creating one. - Page 7 SCALE INSTALLATION ROUTE NEW AIR LINE TO SUSPENSION INSTALL TEE FITTING IN AIR BAG Remove the suspension air line fitting from the top of one of the air bags. Air Bag Insert a street tee fitting into the top of the air bag that Street tee fitting matches the thread size.
-
Page 8: Calibration And Operation
CALIBRATION AND OPERATION CALIBRATING 1: The vehicle must be fully loaded. For best results, calibrate with a loaded weight within 1500lbs or 750kgs of your typical axle group weight (DO NOT calibrate empty!) 2: Using a certified in-ground scale, obtain a loaded weight for the axle group attached to the gauge. -
Page 9: Troubleshooting
If the HCV is not functioning correctly, the air pressure applied to the suspension system could be inconsistent and/or erratic. To test for an HCV problem, acquire a weight reading from the Right Weigh gauge and write it down (refer to gauge operating instructions for proper procedure). Drive the vehicle around the block and return to the same location. -
Page 10: Warranty Statement
Products manufactured or sold by Right Weigh, Inc. are warrantied to be free from significant defects in material and workmanship 3 years from date of purchase. During this time, and within the boundaries set forth in this warranty statement, Right Weigh, Inc. -
Page 11: Return Policy & Repairs
Right Weigh, Inc. will return the product at its expense via a shipping method (carrier to be at sole discretion of Right Weigh, Inc.) equal to or faster than the method used by the customer. Products or parts thereof not covered by warranty will be repaired or replaced at customer expense upon authorization by the customer. - Page 12 For additional support contact: United States and Canada: Right Weigh, Inc. (503) 628-0838 (888) 818-2058 - Toll Free (USA ONLY) www.rwls.com support@rwls.com Australia and New Zealand: Smart Truck Solutions +61 418 622840 rightweigh.com.au ©2015-2020 Right Weigh, Inc. All rights reserved.
