Summary of Contents for Navman REPEAT 100

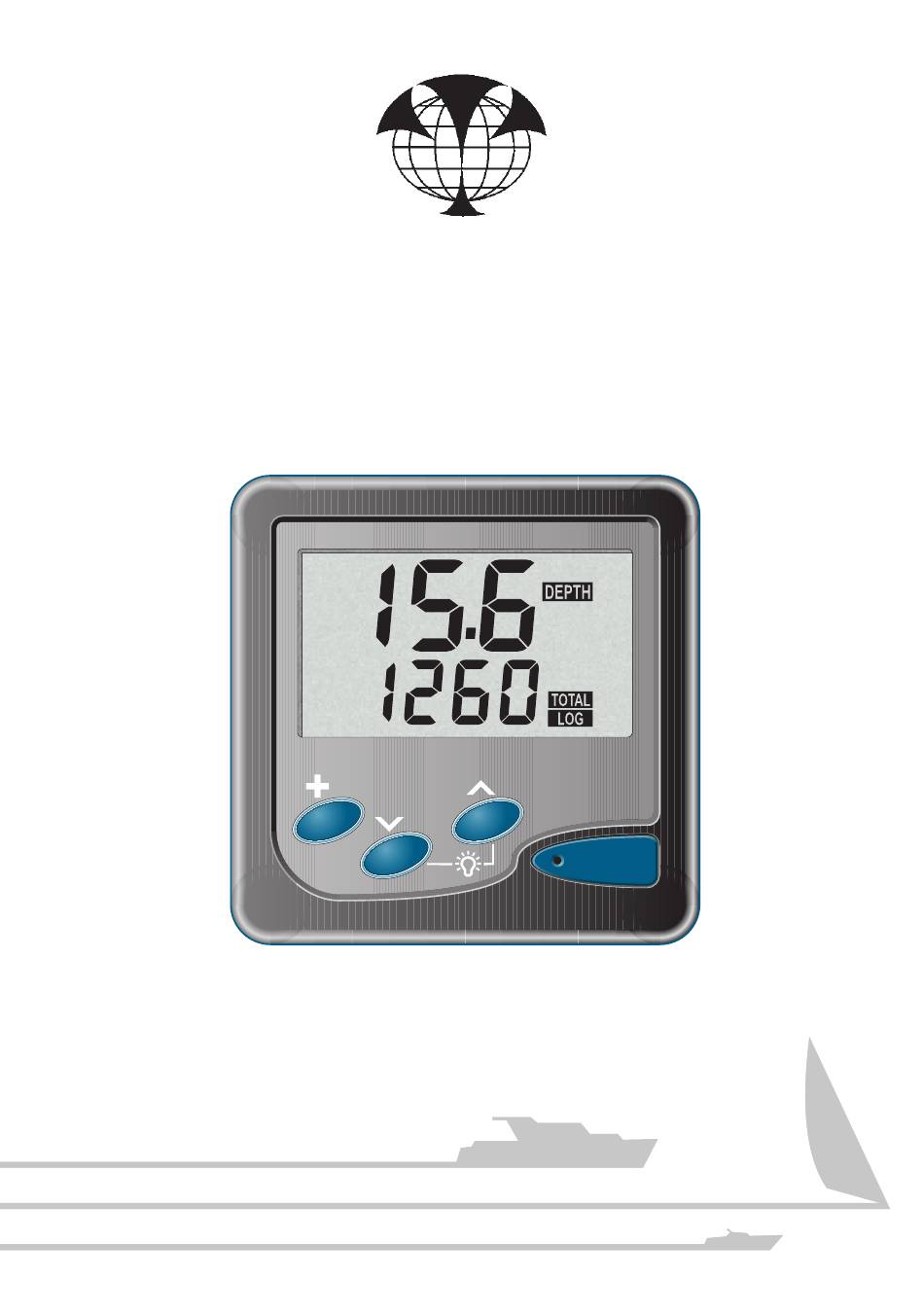

- Page 1 NAVMAN REPEAT NAVMAN...
-
Page 2: Table Of Contents
NMEA Functions ........... 10 R100/ENG/1C NAVMAN R100 User Manual... -
Page 3: Specification
Specification Introduction • Power Supply The NAVMAN R100 is a high quality digital data repeater. 10.7 to 16.6 VDC, 10mA nominal, 30 mA with backlight on. Features include: • Operating temperature • Up to 4 seperate NMEA instruments can 0°C to 45°C. -
Page 4: Installation
Installation Location Mounting The NAVMAN R100 is designed for above or The mounting surface must be flat. Use the below deck installation. Select a position that is: template to set the centre of the fixing hole. • At least 300mm from a compass •... -
Page 5: Wiring Connection
A 1 amp fuse will provide protection for up to five 100 series instruments. Black Ground • The NAVMAN R100 repeater is intended to be connected with a number of other 100 Yellow NMEA Input series instruments or to other instruments... -
Page 6: Connecting Multiple Instruments
Blue Black Green Blue Yellow Blue Spare NMEA Input Note: for GPS, etc. Wire colours refer to White solid wires only Output wires from Wind, Speed & Depth can connect to Repeater inputs in any order NAVMAN R100 User Manual... -
Page 7: Setup
Setup Operation Data Search Mode Changing Functions The NAVMAN R100 has four individual data The upper and lower display sections can be inputs. After making the initial connection to the configured to display depth or speed readings. NAVMAN R100, or after making any additional... -
Page 8: Backlighting On / Off
DEPTH TOTAL DEPTH AVERAGE Simulation Mode SPEED The NAVMAN R100 has a simulation mode. TOTAL DISTANCE To enter this mode hold down the key and then switch on the power. The instrument will remain in this mode even when power is switched off. -
Page 9: Nmea Functions
NMEA Functions Data can be displayed from other NMEA instruments. COMPASS VELOCITY DATA MADE GOOD BEARING TO WIND WAYPOINT DIRECTION DISTANCE TO WIND SPEED WAYPOINT SPEED OVER TEMPERATURE GROUND COURSE OVER CROSS TRACK GROUND ERROR NAVMAN R100 User Manual... - Page 10 Extra Functies Funciones suplementarias The NAVMAN R100 can display wind and Le répétiteur Navman peut afficher les données de De R100 kan wind en temperatuur gegevens van de El repetitor Navman puede indicar datos de temperature information from 100 series instruments, température et de vent des appareils de la série 100...
- Page 11 R100 NMEA Setup Table NMEA-tabell Fonctions NMEA disponibles Funciones NMEA disponibles Erhältliche NMEA Funktionen é Ç – – – Ñ L – ó i ü...
