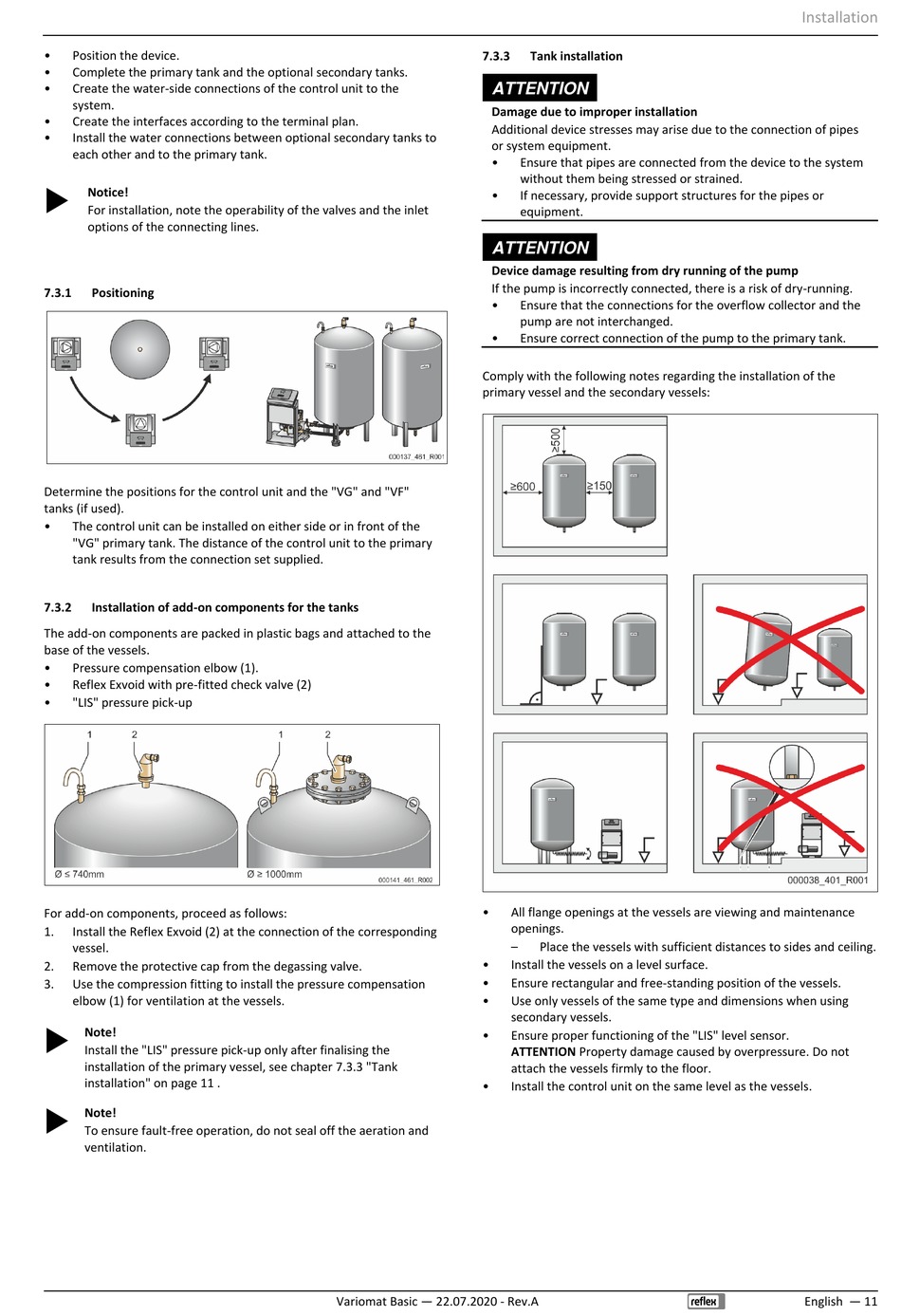

Positioning; Installation Of Add-On Components For The Tanks; Tank Installation - Reflex Variomat Basic Original Operating Manual

• Position the device.
• Complete the primary tank and the optional secondary tanks.
• Create the water-side connections of the control unit to the
system.
• Create the interfaces according to the terminal plan.
• Install the water connections between optional secondary tanks to
each other and to the primary tank.

Notice!
For installation, note the operability of the valves and the inlet
options of the connecting lines.
7.3.1

Positioning

Determine the positions for the control unit and the "VG" and "VF"
tanks (if used).
• The control unit can be installed on either side or in front of the
"VG" primary tank. The distance of the control unit to the primary
tank results from the connection set supplied.
7.3.2

Installation of add-on components for the tanks

The add-on components are packed in plastic bags and attached to the
base of the vessels.
• Pressure compensation elbow (1).
• Reflex Exvoid with pre-fitted check valve (2)
• "LIS" pressure pick-up
For add-on components, proceed as follows:
1. Install the Reflex Exvoid (2) at the connection of the corresponding
vessel.
2. Remove the protective cap from the degassing valve.
3. Use the compression fitting to install the pressure compensation
elbow (1) for ventilation at the vessels.

Note!
Install the "LIS" pressure pick-up only after finalising the
installation of the primary vessel, see chapter 7.3.3 "Tank
installation" on page 11 .

Note!
To ensure fault-free operation, do not seal off the aeration and
ventilation.
7.3.3
ATTENTION
Damage due to improper installation
Additional device stresses may arise due to the connection of pipes
or system equipment.
•
•
ATTENTION
Device damage resulting from dry running of the pump
If the pump is incorrectly connected, there is a risk of dry-running.
•
•
Comply with the following notes regarding the installation of the
primary vessel and the secondary vessels:
•
•
•
•
•
•
Variomat Basic — 22.07.2020 - Rev.A

Tank installation

Ensure that pipes are connected from the device to the system
without them being stressed or strained.
If necessary, provide support structures for the pipes or
equipment.
Ensure that the connections for the overflow collector and the
pump are not interchanged.
Ensure correct connection of the pump to the primary tank.
All flange openings at the vessels are viewing and maintenance
openings.
– Place the vessels with sufficient distances to sides and ceiling.
Install the vessels on a level surface.
Ensure rectangular and free-standing position of the vessels.
Use only vessels of the same type and dimensions when using
secondary vessels.
Ensure proper functioning of the "LIS" level sensor.
ATTENTION Property damage caused by overpressure. Do not
attach the vessels firmly to the floor.
Install the control unit on the same level as the vessels.
Installation
English — 11
