Summary of Contents for Titan TTL530GBC
- Page 1 V110920 / BX220IM...
- Page 2 Kingfisher International Products Limited or email cs@b-gr8.co.uk...
- Page 3 personal injury.
- Page 4 7. Do not use the product if the cutting blade still run when the product is in idling condition.
- Page 5 4. When not in use store the product out of the reach of children. 5. Use only manufacturers recommended replacement parts and accessories. 6. When transporting or storing the product, always fit the transportation guards. 43CC PETROL BRUSH CUTTER TTL530GBC...
- Page 6 7. Correctly secure your product when transporting in a vehicle to prevent turnover, fuel spillage and damage to the product. 8. For longer periods of storage or transportation the fuel and oil tanks must be emptied. Dispose of waste fuel and oil at a local petrol station, local authority centre or where facilities exist.
- Page 7 To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product! 43CC PETROL BRUSH CUTTER TTL530GBC...
- Page 8 VIBRATION The European Physical Agents (Vibration) Directive has been brought in to help reduce hand arm vibration syndrome injuries to power tool users. The directive requires power tool manufacturers and suppliers to provide indicative vibration test results to enable users to make informed decisions as to the period of time a power tool can be used safely on a daily basis and the choice of tool.
- Page 9 Be sure the supply is the same as the voltage given on the rating plate. The tool is fitted with a two-core cable and plug. Remove the mains plug from socket before carrying out any adjustment or servicing. 43CC PETROL BRUSH CUTTER TTL530GBC...
- Page 10 SYMBOLS Warning Read the instruction manual The product complies with the applicable European directives and an evaluation method of conformity for these directives was done. Wear eye protection Wear ear protection Wear safety helmet! Wear respiratory protection Wear face protection! Gloves with saw protection Wear safety footwear Wear protective clothing...
- Page 11 Risk of long hair being drawn into air inlet. Risk of loose clothing being drawn into air intake. Keep other people out of working area during operation. A distance of at least 15 m must be observed. 43CC PETROL BRUSH CUTTER TTL530GBC...
- Page 12 Beware of blade thrust: Continued movement of saw blade after cutting through log.
- Page 13 43CC PETROL BRUSH CUTTER TTL530GBC...
- Page 15 31. Fixed plate 32. Line cutter 33. Cutting spool 34. Cutting line 35. Hip protection 36. Securing clip 37. Harness 38. 5mm hex key Multi tool II(cross screwdriver/spark plug wrench) Torx Screwdriver(T25) 41. Locking flange 43CC PETROL BRUSH CUTTER TTL530GBC...
- Page 16 The conformity assessment followed was according to Annex III of the directive for equipment listed in schedule 1 / article 13 the chosen conformity assessment route Internal cintrol of production (schedule 10 / Annex V) - Guaranteed Sound Power Leel 115 dB (A).
- Page 17 ACCESSORIES Torx s crew driver (T25) Multi tool II(cross screwdriver/spark plug wrench) Harness Hex k ey (5mm) 43CC PETROL BRUSH CUTTER TTL530GBC...
- Page 18 1). Loosen the two bolts and remove the cover from the connecting handle (6). Tighten the two bolts with the 5mm hex...
- Page 19 Place the safety guard onto the plate(31)and tigthen the two bolts with the 5mm hex key (38). Pay attention to the alignment of the guard(Fig.4). Note: For using the trimmer head, make sure the trimming guard (25b) has been attached to the cutting guard (25a). For using the blade, remove the trimming guard (25b) from the cutting guard (25a) if necessary.
- Page 20 3) Remove the trimming guard (25b) completely(Fig.5d). Attach the trimming guard (25b) to cutting guard (25a) Insert the the trimming guard (25b) to the cutting guard (25a), making sure the two buttons and the center buckle engage completely(Fig.5e). 3. Installing cutting blade 1).
- Page 21 5). Remove the torx screwdriver (40). 4. Installing cutting spool 1). Put the backing flange (27) on the spindle (26). 2). Rotate the backing flange (27) until its hole is aligned with the notch in the gear head. 3). Insert the torx screw driver (40) into the hole to lock the spindle(26) and the backing flange (27). 4).
- Page 23 8). Use proper a funnel with filter to avoid that debris can enter the tank and avoid splitting and overfilling the tank. 9). Wipe up spilled fuel with a soft cloth and refit the fuel tank cap. 10). Always dispose fuel, used oil and objects soiled with those according to local regulations. 43CC PETROL BRUSH CUTTER TTL530GBC...
- Page 24 Fitting and adjusting the harness WARNING! Always attach the product to the harness. Do not carry it just by hand! 1). Remove the harness from the loop, open the securing clip(37). 2). Place the harness(38) so that is runs over the left shoulder, crossing the chest and back. The securing must be located at the right hip(Fig.12).
- Page 25 Fig.17 5. Pull the recoil starter to start engine and then move choke lever to "WARM START" position Now, your brush cutter is under idle-speed states. 43CC PETROL BRUSH CUTTER TTL530GBC...

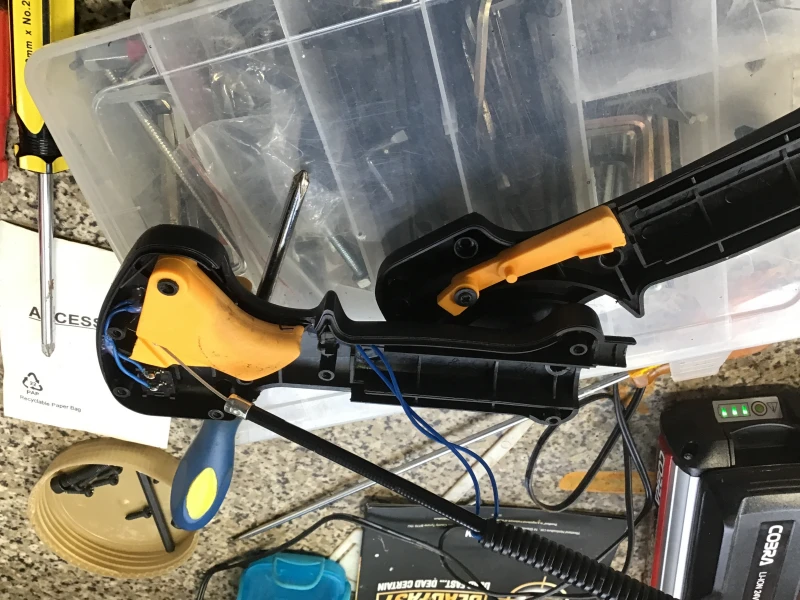

- Page 26 6. Let the petrol brush cutter run in idle speed for 10-15s to let it warm up. 7.Depress throttle interlock (21) and then depress throttle trigger (24) to get full engine speed for operation. STARTING WARM ENGINE 1. Set ignition switch(22) to “I” position(Fig.15). Fig.15 2.
- Page 27 1. Use the cutting blade and guard to cut weeds, brush, small trees and similar vegetation with a thickness of up to 20 mm. 2. Never hold the unit higher than your hip. Work cautiously. The higher you hold the unit the bigger is the risk of thrown objects or clippings(Fig.21). 43CC PETROL BRUSH CUTTER TTL530GBC...
- Page 28 3. Plunge the blade from above when cutting rank growth and undergrowth. 4. Move the blade close over the ground to cut young trees or grass. Fig.21 TRIMMING 1. Use the trimmer head and trimming guard to cut small weeds, grass or similar soft vegetation.
- Page 29 8.The trimmer head is equipped with a bumper helping to cut the trimming line (34) while operating. Simply tap the bumper on a firm surface and the spool will release fresh trimming line(Fig.24a). Fig.24a 9.A line cutter (32) is integrated with the trimming guard (25b) and this will cut the line to the necessary length(Fig.24b).
- Page 30 Maintenance and repairs STORAGE 1. Store the petrol brush cutter and its accessories in a dark, dry, frost-free, well-ventilated place. 2. Always store the petrol brush cutter and grass trimmer in a place that is inaccessible to children. The ideal storage temperature is between 10 and 30°C. For best results, cover the petrol brush cutter and grass trimmer with a proper cloth or foil to protect it against dust.
- Page 31 1. Unplug the spark plug connector by pulling. 2. Loosen the spark plug with the spark plug wrench and remove it. Check the spark plug for damage and wear. The colour of the electrode shall be light brown. 43CC PETROL BRUSH CUTTER TTL530GBC...
- Page 32 REPLACING CUTTING SPOOL 1. If the cutting line is used up, the cutting spool must either be replaced by one of the same type or the cutting line must be refilled. 2. To refill the cutting line, lay the petrol grass trimmer on a flat stable surface with its cutting spool facing upwards.
- Page 33 Fig.29a 4. Remove the cutting spool (33) by unscrewing clockwise. 5. Replace with a new one of the same type. 6. To replace the line, take out the spool by pressing the two tabs on the side of the cutting spool (33) and remove the remaining cutting line.
- Page 34 Recycling and disposal 1. Petrol, oil, used oil, a mixture of oil and petrol and objects soiled with oil e. g. cleaning cloths do not belong in the household rubbish. Dispose of oil-contaminated items in accordance with the local guidelines and hand them in at recycling centres. 2.
- Page 35 The flanges on the cutting means are Tighten the flanges big smoke came loose The flanges on the cutting means are Replace the flanges broken Re-fill fuel and oil mixture into The mixture scale and oil type is wrong the tank 43CC PETROL BRUSH CUTTER TTL530GBC...
- Page 36 Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands 2014/30/EU - The EMC Directive The RoHS Directive 2011/65/EU (Restrictions of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment) and its amendments (EU) 2015/863, (EU)2017/2102 The Regulation of Non-Road Mobile Machinery Emissions (EU) 2016/1628, and its supplemented regulations Engine model number: SL40 03/09/2019...
