Summary of Contents for Titan TTP448HTL

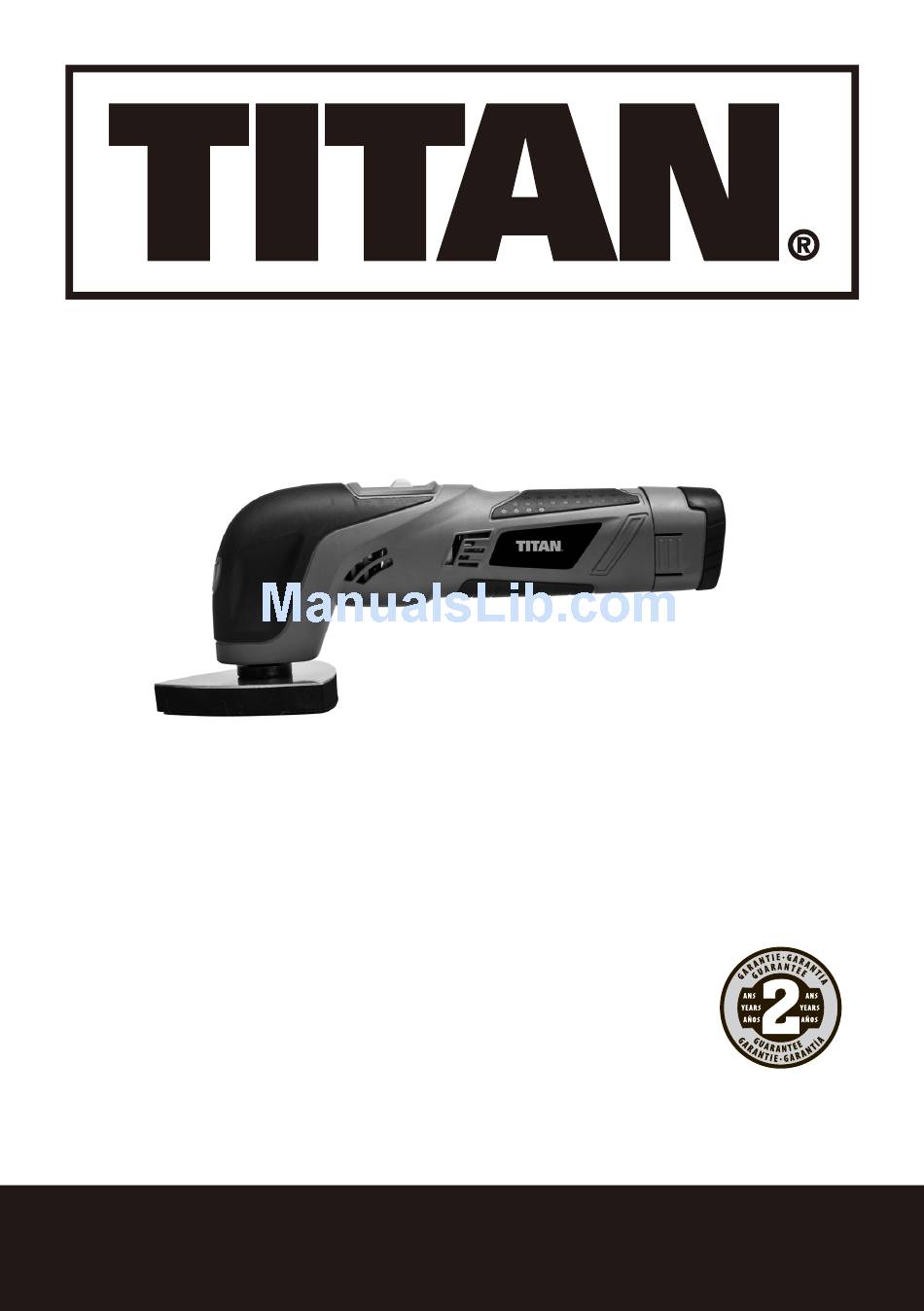

- Page 1 SAFETY AND OPERATING MANUAL Original instructions 10.8V MULTI-CUTTER TTP448HTL...
- Page 2 Congratulations on your purchase of a power tool from Titan Power Tools (UK) Ltd. We want you to continue getting the best performance from it so this handbook includes information on safety, handling and care. Please retain this handbook in case you need to refer to any of the information in the future.
-
Page 3: General Safety Instructions
Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. 10.8V MULTI-CUTTER TTP448HTL... - Page 4 Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. 10.8V MULTI-CUTTER TTP448HTL...
- Page 5 Children should be supervised to ensure that they do not play with the appliance. 2. Charger is double insulated for additional electrical safety. 3. Charger is for indoor use only. 10.8V MULTI-CUTTER TTP448HTL...
- Page 6 18. When the battery is worn out, insulate the terminals with adhesive tape or similar materials before disposal. 19. Do not dispose of batteries in fire, or with household waste. Return exhausted batteries to your local collection or recycling point. 10.8V MULTI-CUTTER TTP448HTL...
- Page 7 The use of the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles. And the tool is being used as intended by its design and these instructions. 10.8V MULTI-CUTTER TTP448HTL...
- Page 8 Health Surveillance All employees should be part of an employer’s health surveillance scheme to help identity any vibration related diseases at an early stage, prevent disease progression and help employees stay in work. 10.8V MULTI-CUTTER TTP448HTL...
- Page 9 To reduce the risk of injury, user must read instruction manual Warning Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. Li-Ion Wear gloves 10.8V MULTI-CUTTER TTP448HTL...
- Page 10 Before charging, read the instructions This symbol indicates that this battery contains lithium. This battery shall be brought to your shop to be recycled. Safety thermal fuse T3,15A yyWxx Manufacturing date code: Year of manufacturing (20yy) and week of manufacturing (Wxx); 10.8V MULTI-CUTTER TTP448HTL...
- Page 11 7 Semicircle saw blade 8 Sanding papers Works with other brands’ accessories. The following compatible brands are trademarks owned by third parties which may be registered by their respective owners: Black & Decker , Bosch and Erbauer. 10.8V MULTI-CUTTER TTP448HTL...
-
Page 12: Rigid Scraper Blade 52*72.5
1300mAh Li-Ion battery pack 30 min charger Hex key 5mm Rigid scraper blade HCS end cut blade HCS semicircle saw blade Sanding pad Sanding paper (Red) 2pcs Sanding paper (White) Adaptor ( adapter use for Black & Decker accessories ) 10.8V MULTI-CUTTER TTP448HTL... -
Page 13: Intended Use
To install the battery pack, align raised rib on battery pack with groove inside tool, slide the Fig. 3 battery pack fully onto the tool until the battery pack “clicks” 10.8V MULTI-CUTTER TTP448HTL... - Page 14 To install accessories, align holes in accessory with locating pins on accessory holder. (Fig.6 & 7) Securely tighten with the hex ke y. (Fig.8) Bosch and Erbauer blades can fit on the holder without adaptor. Fig. 5 Fig. 6 Fig. 8 Fig. 7 10.8V MULTI-CUTTER TTP448HTL...
-
Page 15: Switching On And Off
WARNING: The light is a focussed beam and should never be pointed directly into the eyes of people or animal. Fig. 12 Note: When the LED light starts flashing, it means that the tool needs to be recharged. Proceed as instructed on previous page. 10.8V MULTI-CUTTER TTP448HTL... -
Page 16: Table Of Contents
Depends on sanding Sanding pad 90*90*90 sheet (See below) All wooden materials (e.g., hardwood, Sanding papers softwood, 90*90*90 (Red) chipboard, building board) Metal materials Sanding papers 90*90*90 Paint or varnish (White Adaptor 25*10*4.8 Metal 10.8V MULTI-CUTTER TTP448HTL... - Page 17 Do not attempt to open or remove any of the components. 10.8V MULTI-CUTTER TTP448HTL...
-
Page 18: Troubleshooting
& working with your tool. Heavy working conditions will use up the battery pack energy faster than lighter working conditions. Do not re-charge your battery pack below 0°C and above 50°C as this will affect performance. 10.8V MULTI-CUTTER TTP448HTL... - Page 19 L. A 13 AMP (BS1363 or BS1363/A) plug must be used and a 3 AMP fuse must be fitted. 3 AMP BLUE FUSE N (NEUTRAL) BROWN L (LIVE) OUTER SLEEVE CABLE GRIP 10.8V MULTI-CUTTER TTP448HTL...
-
Page 20: Declaration Of Conformity
EN 60335-1:2002 + A1:2004 + A11:2004 + A12:2006 + A2:2006 + A13:2008 + A14:2010 + A15:2011 EN 60335-2-29:2004 + A2:2010 EN 62233:2008 Authorised Signatory and technical file holder Date : 27/02/2013 Signature:_________________ Name / title: Peter Harries / Quality Manager Titan Power Tools (UK)Ltd. Trade House , Mead Avenue ,BA22 8RT 10.8V MULTI-CUTTER TTP448HTL...
