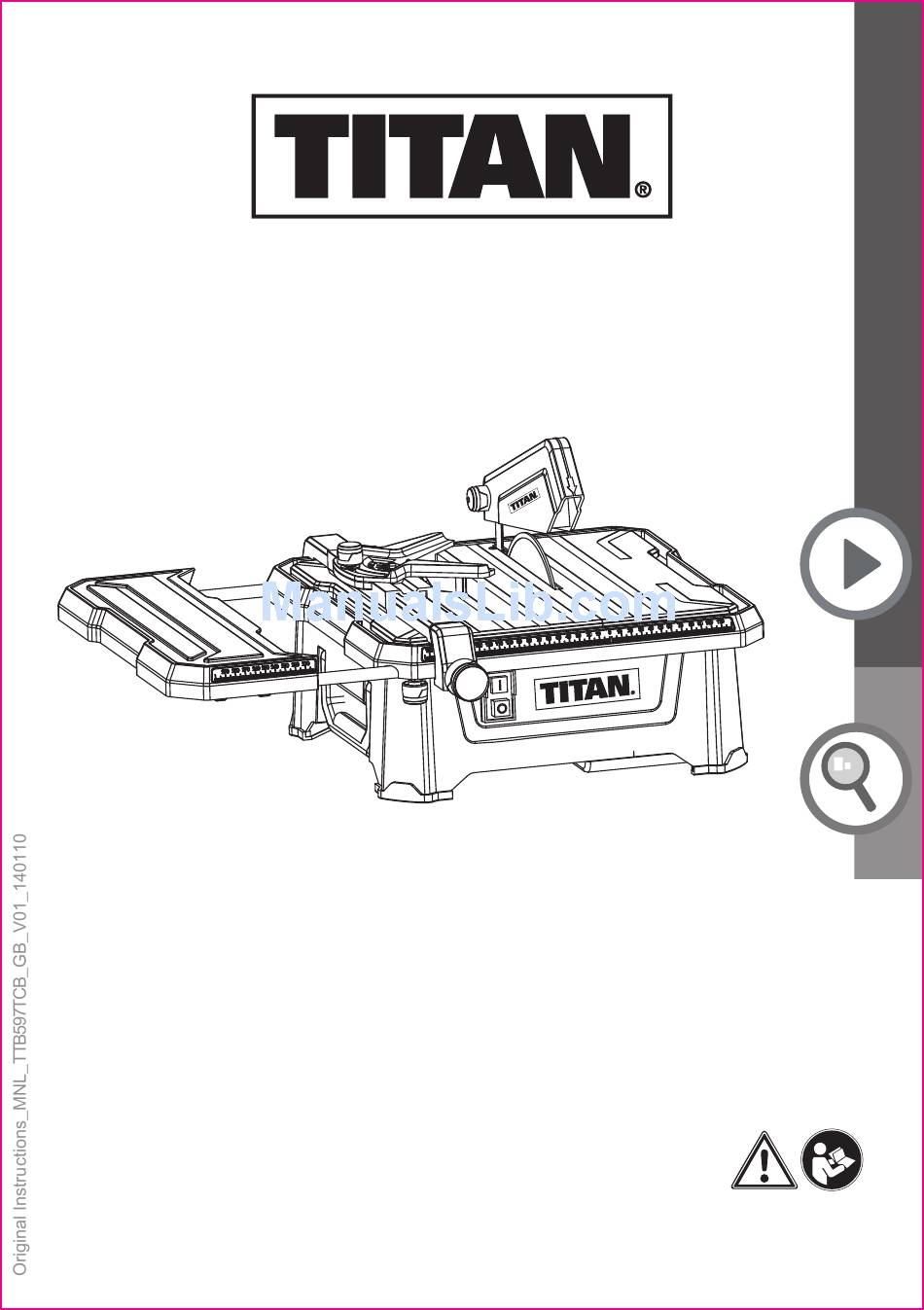

- Page 1 650W Tile Cutter TTB597TCB Barcode: 5052931305766 WARNING! Read the instructions before using the product!
- Page 2 GUARANTEE This TITAN product carries a 2 year guarantee. If your product develops a fault within this period, you should, in the first instance contact the retailer where the item was purchased.
-
Page 3: Table Of Contents
TTB597TCB by TITAN Let’s get started… These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Your product Technical and legal information Before you start detail... more Product functions... -
Page 4: Your Product
Your product TTB597TCB by TITAN Your product 1. Upper protective guard 11. Parallel cutting guide 2. Cutting disc 12. Locking knob 3. 45° Vertical fence (for mitre cutting guide) 4. Scale 13. Metal bracket 5. Working table 14. Locking knob 6. - Page 5 Your product TTB597TCB by TITAN Safety devices Metal bracket The metal bracket (13) prevents a workpiece being caught by the cutting disc (2) and being hurled at the operator. The metal bracket must always be mounted during operation. Upper protective guard The upper protective guard (1) prevents accidental contact with the cutting disc (2) and stops workpiece parts and cooling water from being flung out.
- Page 6 Technical and legal TTB597TCB by TITAN information Technical specifications General > Input Voltage 230-240V~50Hz > Power Input 650W > No Load Speed 5500min > Insulation Class Class I > Diamond Disc Size ø180mmx2.4mmxø22.2mm > Table Size 345x345mm > Table Size (with Extension Table) 400x510mm >...
-
Page 7: Technical And Legal Information
Technical and legal TTB597TCB by TITAN information Volt Hertz Input power Kilogram Per minute dB(A) Decibel (A-rated) yyWxx Manufacturing date code; year of manufacturing (20yy) and week of manufacturing (Wxx); Caution / Warning. Wear hearing protection. Read the instruction Wear eye protection. - Page 8 Technical and legal TTB597TCB by TITAN information locations. Keep the work area well lit. Do not use tools in the presence of flammable liquids or gases. 3. Guard against electric shock. > Avoid body contact with earthed or grounded surfaces (e.g. pipes, radiators, ranges, refrigerators).
- Page 9 Technical and legal TTB597TCB by TITAN information 15. Disconnect tools. > When not in use, before servicing and when changing accessories such as blades, bits and cutters, disconnect tools from the power supply. 16. Remove adjusting keys and wrenches. >...
- Page 10 Technical and legal TTB597TCB by TITAN information ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR TOOLS > Do not use diamond discs which are damaged or deformed. > Replace table insert when worn. > Use only diamond discs recommended by the manufacturer. >...
-
Page 11: Before You Start
Before you start TTB597TCB by TITAN Unpack > Unpack all parts and lay them on a flat, stable surface. > Remove all packing materials and shipping devices if applicable. > Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer. - Page 12 Before you start TTB597TCB by TITAN > Unplug the tile cutter from the mains supply. > Raise the 45° Vertical fence (3) approx. 45° and remove. Fig. 1 > Loosen cross-screws (19) with the Phillips screwdriver (not supplied) and pull off lower protective guard (17).
- Page 13 Before you start TTB597TCB by TITAN Fig. 3 > Place cutting disc (2) on inner flange (24). > Attach the outer flange (22). > Screw hexagon nut (21) onto motor shaft (25) clockwise. > Attach the straight spanner (20) to the hexagon nut (21).
- Page 14 Before you start TTB597TCB by TITAN Assemble/adjust metal bracket WARNING: Product damage! The metal bracket must always be aligned parallel to the cutting disc. > Unplug the tile cutter from the mains supply. > Raise the 45° Vertical fence (3) approx. 45° and remove.
- Page 15 Before you start TTB597TCB by TITAN Mounting the upper protective guard to the metal bracket WARNING: Product damage! Do not over-tighten socket head bolt (27) and locking knob (14). The upper protective guard (1) must be free to rise and fall as the workpiece is pushed towards the cutting disc.
- Page 16 Before you start TTB597TCB by TITAN Mounting the extension table > Unplug the tile cutter from the mains supply. > Undo the cross-screws(29). > Push the guide rails for the extension table (9) on both sides into the locator (30) of the machine body.
- Page 17 Before you start TTB597TCB by TITAN Mounting the parallel cutting guide > Unplug the tile cutter from the mains supply. > Attach the rear end of the parallel cutting guide (11) to the rear of the working table (5). > Push the spring (31), clamp (32) and washer (33) onto thread (34).
- Page 18 Before you start TTB597TCB by TITAN Mounting/setting the mitre cutting guide NOTE: The mitre cutting guide can be set to a desired angle (0°~ 45°). The mitre cutting guide can only be used when the parallel cutting guide is mounted.
- Page 19 Before you start TTB597TCB by TITAN Fig. 11 Filling the product with water NOTE: Product damage! Fill the product with water only until water can drain from the opening in the plug. During use the water level must never drop below the MIN marking.
-
Page 20: Check Before Starting
Before you start TTB597TCB by TITAN Fig. 12 Check before starting! Warning: Risk of injury! The product must be mounted in a stable position, i.e. on a workbench, a universal subframe or similar. Warning: Risk of injury! As soon as a malfunction occurs, push the red 0-Button on the On/Off Switch and pull out the mains plug. - Page 21 Before you start TTB597TCB by TITAN Connection to the electrical supply > Before switching on, make sure that the voltage of the mains supply is the same as indicated on the rating plate. This product is designed to operate on 230-240V~ 50Hz.
-
Page 22: In More Detail
TTB597TCB by TITAN detail… more Product functions Care and maintenance Trouble shooting Recycling and disposal EC declaration of conformity... -
Page 23: Product Functions
Product functions TTB597TCB by TITAN WARNING! Before switching the tile cutter on, make sure that you have read and understood all of the safety instructions. Make sure also that the machine has been correctly assembled and adjusted. Make sure that the mains is disconnected from the supply when the tile cutter is not being used, or adjustments are being made. - Page 24 Product functions TTB597TCB by TITAN WARNING: The disc will continue to rotate for a few seconds after the machine has been switched off. Wait for the disc to stop before removing the workpiece, or making any adjustments. Stop the machine immediately if there is undue vibration or some other fault. If this situation continues, check the machine to find the origin of the fault.
- Page 25 Product functions TTB597TCB by TITAN Fig. 13 Making a straight cut Adjust the parallel cutting guide (11) to the desired width. Use the locking knob to loosen or adjust the guide. Position the tile firmly against the parallel cutting guide (11) and pass through the cutting disc in a smooth action.
- Page 26 Product functions TTB597TCB by TITAN Making a mitre or diagonal cut Follow the same procedure for a straight cut but use the mitre cutting guide (10) in conjunction with the parallel cutting guide (11). The mitre cutting guide (10) simply clips onto the parallel cutting guide (11).
-
Page 27: Care And Maintenance
Care and maintenance TTB597TCB by TITAN The golden rules for care WARNING! Always switch the product off, disconnect it from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! > Keep the product clean. Remove debris from it after each use and before storage. - Page 28 Care and maintenance TTB597TCB by TITAN > Raise the 45° vertical fence (3) approx. 45° and remove. > Place a suitable collector below the product's drain opening. > Remove water reservoir plug (16) and drain off all the dirty cooling water.
- Page 29 Care and maintenance TTB597TCB by TITAN > Loosen cross-screws (19) and pull off lower protective guard (17). Fig. 17 > Attach the straight spanner (20) to the hexagon nut (21). > Lock motor shaft (25) to prevent turning using angle spanner (23).
- Page 30 Care and maintenance TTB597TCB by TITAN Power cord > If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a safety hazard. Plug replacement If you need to replace the fitted plug then follow the instructions below.
- Page 31 Care and maintenance TTB597TCB by TITAN NOTE: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket. If the supply cord is damaged it must be replaced by a service agent or a similarly qualified person in order to avoid hazard.
- Page 32 Care and maintenance TTB597TCB by TITAN > We recommend using the original package for storage or covering the product with a suitable cloth to protect it against dust. Transport > Dismantle any components that protrude from the product. > Use the original packaging to ship whenever possible.
-
Page 33: Trouble Shooting
Trouble shooting TTB597TCB by TITAN Trouble shooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these... -
Page 34: Recycling And Disposal
Recycling and disposal TTB597TCB by TITAN Recycling and disposal > Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. -
Page 35: Declaration Of Conformity
Standards and technical specifications referred to: EN61029-1:2009+A11:2010 EN55014-1/A2:2011 EN55014-2/A2:2008 EN61000-3-2/A2:2009 EN61000-3-3:2008 Authorised Signatory and technical file holder Date : 10/01/2014 Signature:_________________ Name / title: Peter Harries / Quality Manager Titan Power Tools (UK) Ltd. Trade House, Mead Avenue, BA22 8RT 650W TILE CUTTER TTB597TCB... - Page 36 Titan Power Tools (UK) Ltd Trade House, Mead Avenue, BA22 8RT 14609_V01...
