Summary of Contents for Titan TTB507HTL

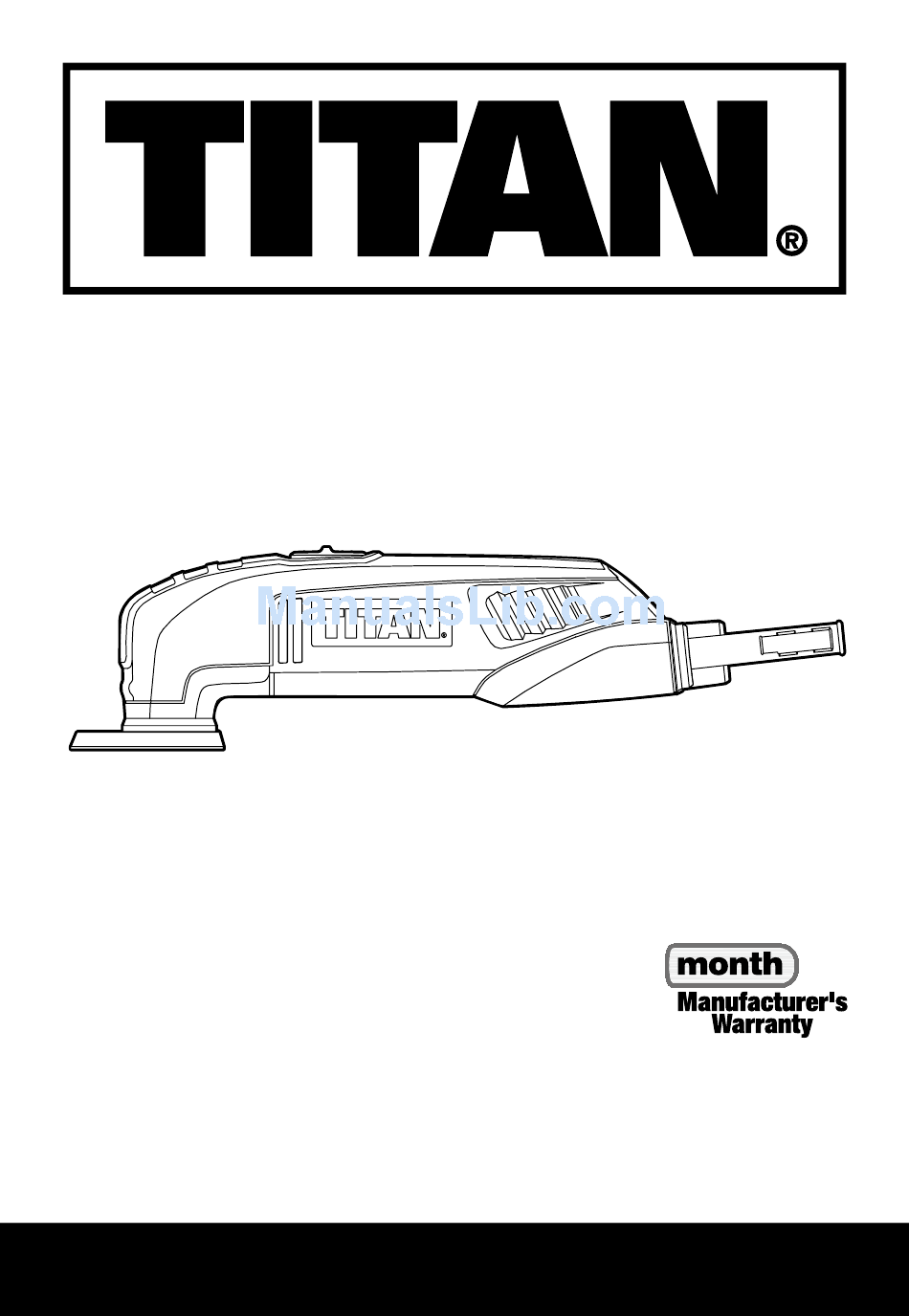

- Page 1 SAFETY AND OPERATING MANUAL Original Instructions 200W MULTI-CUTTER TTB507HTL...
- Page 3 Congratulations on your purchase of a . Power tool from Titan Power Tools (UK) Ltd. We want you to continue getting the best performance from it so this handbook includes information on safety, handling and care. Please retain this handbook in case you need to refer to any of the information in the future.
-
Page 4: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS WARNING! Read all safety warnings designated by the symbol all instructions. WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool”... - Page 5 Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. 2. Always wear a dust mask. 200W MULTI-CUTTER TTB507HTL...
- Page 6 VIBRATION The European Physical Agents (Vibration) Directive has been brought in to help reduce hand arm vibration syndrome injuries to power tool users. The directive requires power tool manufacturers and suppliers to provide indicative vibration test results to enable users to make informed decisions as to the period of time a power tool can be used safely on a daily basis and the choice of tool.
- Page 7 Be sure the supply is the same as the voltage given on the rating plate. The tool is fitted with a two- core cable and plug. Always remove the mains plug from socket before carrying out any adjustment or servicing. 200W MULTI-CUTTER TTB507HTL...
- Page 8 SYMBOLS To reduce the risk of injury, user must read instruction manual Double insulation Warning Wear ear protection Wear eye protection Wear dust mask This product has been marked with a symbol relating to removing electric and electronic waste. This means that this product shall not be discarded with household waste but that it shall be returned to a collection system which conforms to the European Directive 2002/96/CE.
- Page 9 200W MULTI-CUTTER TTB507HTL...
- Page 10 1. Key storage 2. Variable speed control 3. Venting slots 4. On/Off switch 5. Sanding pad (PERFORATED)* 6. Sanding sheet* Flange 8. Hex key* 9. HSS semicircle saw blade* 10. End cut blade* 11. Dust extraction access 12. Dust collection adapter (35mm)* 13.
-
Page 11: Technical Data
Wear ear protection when sound pressure is over 85dB(A) Typical weighted vibration 3.94m/s K=1.5m/s ACCESSOIRES Allen key End cut blade Sanding pad (perforated) HSS semicircle saw blade 80grit sanding sheet(perforated) 180grit sanding sheet(perforated) 120grit sanding sheet(perforated) Dust collection adapter (32mm&35mm) Small flange 200W MULTI-CUTTER TTB507HTL... -
Page 12: Mounting Accessories
OPERATION INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. Warning: Before working your tool make sure that no power cords will be damaged. Before mounting or replacing application tools or accessories, pull the Fig. 1 power plug.This preventative safety measure eliminates danger from accidentally starting the power tool. -
Page 13: Operating The On/Off Switch
The workpiece must be inserted firmly or clamped tightly before it is cut. Typical application: wood, PVC, soft metal sheet. Select high oscillation frequency . The saw blade lasts longer if the wear is distributed evenly. To ensure an even distribution, loosen the 200W MULTI-CUTTER TTB507HTL... - Page 14 saw blade, rotate it and retighten firmly. 8. SAWING WITH THE END CUT SAW BLADE (See Fig. 7) Warning: The sawing teeth are very sharp. Do not touch during mounting and application. The workpiece must be inserted firmly or clamped tightly before it is cut. Typical application: wood, plaster board, soft plastics Fig.
-
Page 15: Working Hints For Your Tool
This is normal and will not damage your power tool. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. 200W MULTI-CUTTER TTB507HTL... -
Page 16: Environmental Protection
ENVIRONMENTAL PROTECTION This product has been marked with a symbol relating to removing electric and electronic waste. This means that this product shall not be discarded with household waste but that it shall be returned to a collection system which conforms to the European Directive 2002/96/CE. - Page 17 2011/65/EU 2012/19/EU Waste Electrical and Electronic Equipment (WEEE) EN 60745-1:2009+A11:2011 EN 60745-2-4:2009+A11:2011 Date: 27/02/2 012 Signature: Name / title: Philippe Biannic / Quality Manager 200W MULTI-CUTTER TTB507HTL...
