Summary of Contents for Lumencor SPECTRA Light Engine

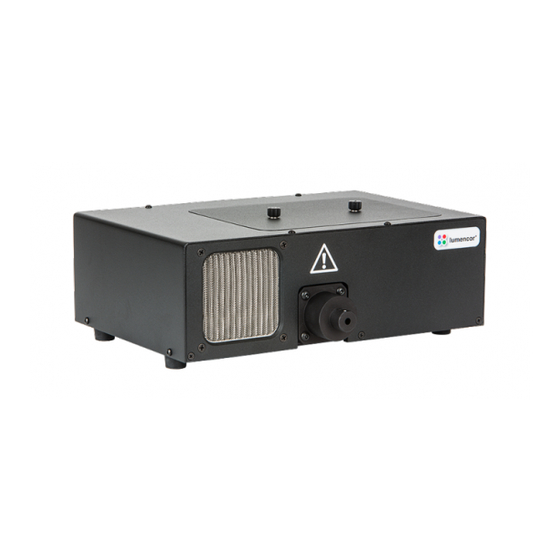

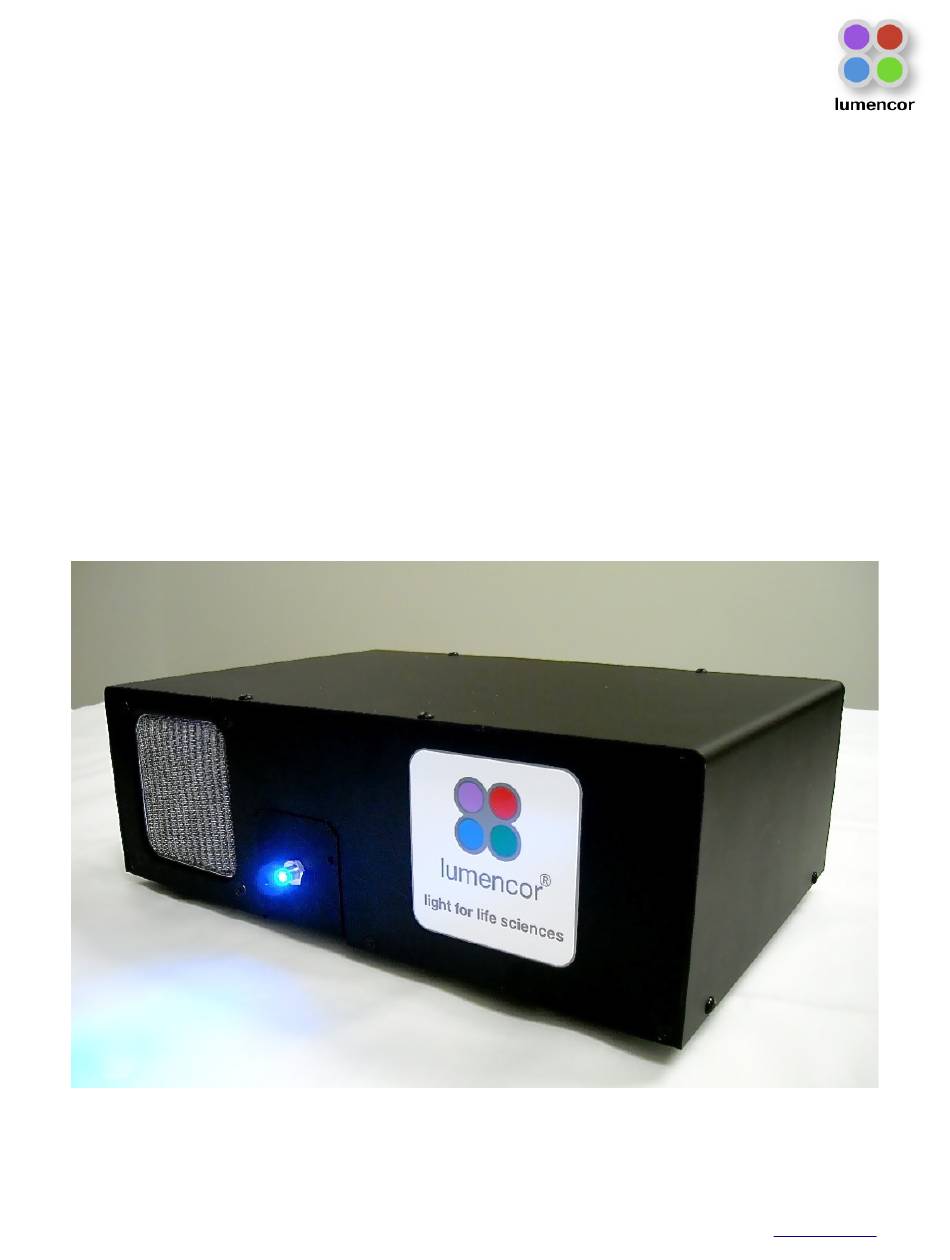

- Page 1 Lumencor SPECTRA Light Engine ® Instruction Manual Lumencor, Inc. 14964 NW Greenbrier Parkway, Beaverton, OR 97006 T 503.213.4269 F 503.536.6741 www.lumencor.com...
- Page 2 Emissions Certifications This equipment has been tested and found to comply with the limits of EMC directive 2004/108/EC. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
-
Page 3: Table Of Contents
Table of Contents 1 Introduction 2 Precautions and Warnings 3 Installation and Operating Instructions 4 Spectral Output 5 Routine Maintenance and Trouble Shooting 6 Customer Support 7 Product Specifications 8 Connectors 9 Declaration of Conformance 10 Warranty SPECTRA, SPECTRA S and SPECTRA X Instruction Manual... -
Page 4: Introduction
The light sources within the SPECTRA are controlled by software; either via a serial interface (RS-232 or USB) to a computer running a Lumencor supplied GUI or via a TTL interface to a computer running a third party microscopy software application.The user can enable or disable each source independently and change the intensity of each source independently. - Page 5 {Mesures de sécurité}: Warning: DO NOT use an unapproved power supply. The Lumencor supplied external power supply is recommended for use with the SPECTRA light engines. Alternate 24VDC/5A power supplies may be used for the standard SPECTRA (no simultaneous outputs) or alternate 24-30VDC/7.9A power supplies may be used for SPECTRA X and SPECTRA S (simultaneous outputs) but it is imperative that it has output over-current protection, as the power input of the SPECTRA is not fused.
-
Page 6: Precautions And Warnings
DISCLAIMER: Lumencor shall not be liable for injury to the user or damage to the product resulting from the SPECTRA being used in a way for which it was not intended and in complete disregard for all posted safety precautions and warnings. - Page 7 The SPECTRA X has a feature that other SPECTRAs in the product family do not; removable optical excitation filters. There are fixed in the SPECTRA and SPECTRA S. The filters are installed in individual holders which the user can access once the top cover retained by two thumb screws is removed.
- Page 8 Position the unit in such an orientation that allows unrestricted access to the DC power connector. In an emergency, you may need to disconnect power to the unit quickly. The SPECTRA can either be controlled by a Lumencor supplied GUI via a RS-232 port, by the Lumencor Remote Control Accessory (RCA) via the RS-232 port or by a 3 party laboratory software program via the TTL port.
- Page 9 USB-to-RS232 adapter cable. Both methods are covered below. GUI Installation and Operating Instructions (using RS-232 straight-thru cable) Download the zip file for the SPECTRA GUI from http://www.lumencor.com/software_control.html. Unzip the file and run setup.exe to install the SPECTRA GUI. Connect the RS-232 cable between the PC and the SPECTRA.
- Page 10 LE. This is accomplished via the parallel port on a PC. Merely Connect the Lumencor supplied TTL cable between the PC and the TTL port on the rear of the SPECTRA. The integration and set up of the 3 party laboratory software is very application specific and beyond the scope of this...
-
Page 11: Spectral Output
6 months and more often in dusty or smoke-filled environments. There are no user-replaceable components or sub-assemblies in SPECTRA. 6. Customer Support T: 503.505.6985 les.decker@lumencor.com http://www.lumencor.com/support/software_control M: Lumencor, Inc., 14964 NW Greenbrier Parkway, Beaverton, OR 97006 U.S.A. SPECTRA, SPECTRA S and SPECTRA X Instruction Manual... -
Page 12: Product Specifications
7. Product Specifications The SPECTRA must be operated and stored within the environmental conditions specified. Specification Detail Temperature Operating 32 to 95° F (0 to 35° C) Non-operating -4 to 158° F (-20 to 70° C) Humidity Operating and non-operating 0 to 80% relative humidity, non-condensing Altitude Operating... -
Page 13: Connectors
8. Connectors 8.1 TTL Input Connector This connector is used to enable/disable each source and select between the GRN/YEL excitation filter. Pins Definition DC Characteristics VCC = 5.0V, Red, Green, Cyan, Teal, Blue, UV 1, 2, 3, 11, 12, 13 (max) = 1.5V, V (min) = 3.3V, ilow... -
Page 14: Declaration Of Conformance
9. Declaration of Conformance Manufacturer: Lumencor, Inc. 14964 NW Greenbrier Parkway, Beaverton, OR 97006 USA We declare under our sole responsibility that the SPECTRA Light Engine conforms to the following directives and norms: EMC directive 2004/108/EC 2006/95/EC CB Scheme CE Declaration of Conformity...
