Lumencor Light Engine Manual
SPECTRA and SPECTRA X
Engine

Light
SPECTRA and SPECTRA X Light Engine Manual 57-10006
lumencor.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SPECTRA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lumencor SPECTRA

Summary of Contents for Lumencor SPECTRA

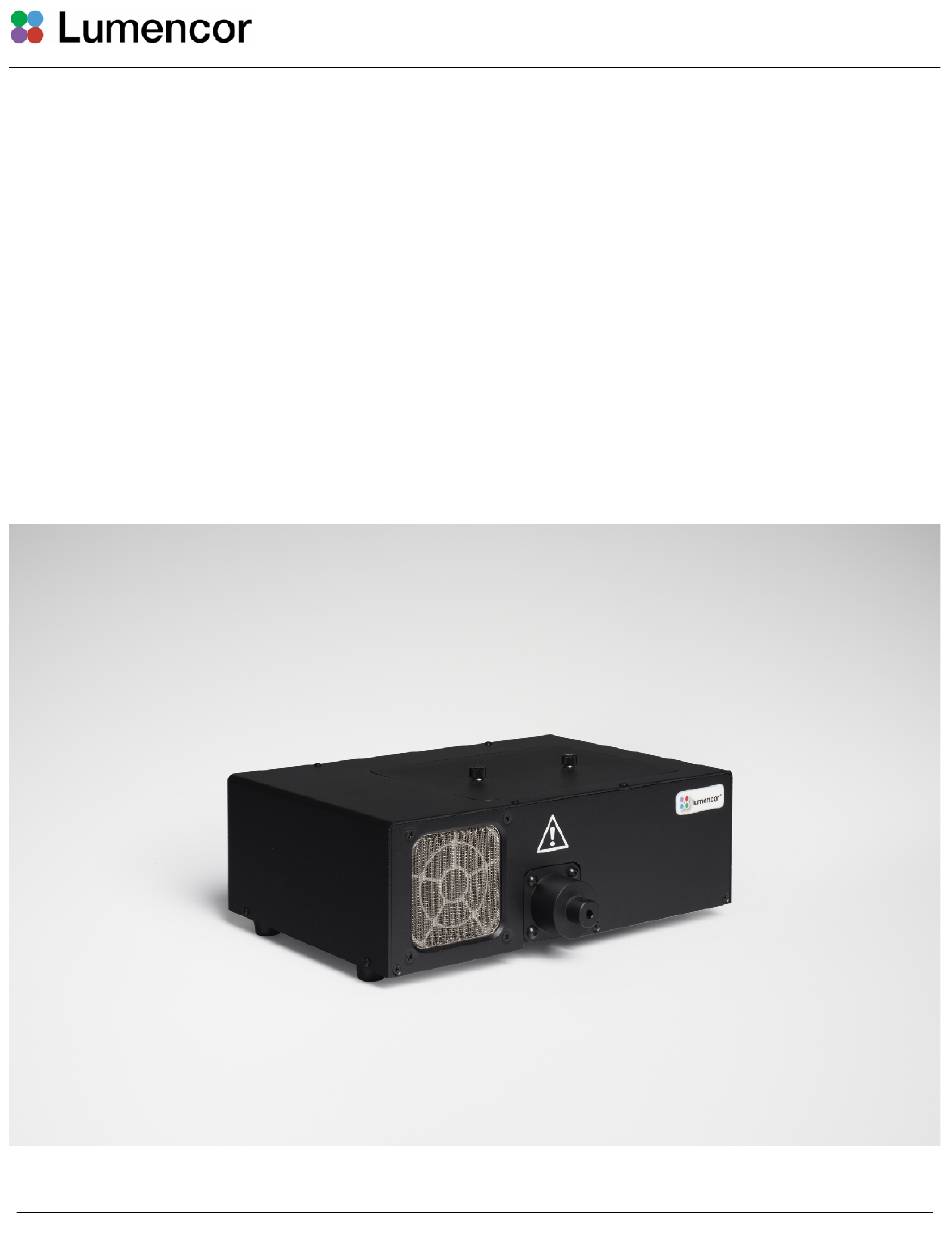

  • Page 1 Lumencor Light Engine Manual SPECTRA and SPECTRA X Engine
 Light SPECTRA and SPECTRA X Light Engine Manual 57-10006 lumencor.com...
  • Page 2 Lumencor utilizes regulatory model names for all certified and CE marked products. The regulatory model names are traceable to all regulatory documentation, third party reports and certifications. “Regulatory Model: Spectra” is used as a representative model for all certified and CE marked Spectra Products. Emissions This equipment has been tested and found to comply with the limits of EMC directive 2014/30/EU.

  • Page 3: Table Of Contents

    Table of Contents 1. Introduction 2. Precautions and Warnings 3. Installation and Operating Instructions 4. Spectral Output 5. Product Specifications 6. Routine Maintenance and Troubleshooting 7. Customer Support 8. Warranty SPECTRA and SPECTRA X Light Engine Manual 57-10006...

  • Page 4: Introduction

    fluorescence microscopy, to the objective. Each of the colors is produced by an independent module that has been optimized to produce a precise set of wavelengths. The SPECTRA X provides 6 solid state light sources whose outputs are refined by user-exchangeable bandpass filters. Light output can be coupled into a liquid light guide (LLG) or SMA-terminated optical fiber via...

  • Page 5: Precautions And Warnings

    Warning: DO NOT use an unapproved power supply. The Lumencor supplied external power supply (see Section 3.1) is recommended for use with SPECTRA and SPECTRA X light engines. The equipment is required to be supplied by a properly approved/certified DC power source meeting the minimum electrical ratings of the product.
  • Page 6 Avertissement: NE PAS utiliser une alimentation non approuvée. L'alimentation externe fournie par Lumencor (voir la section 3.1) est recommandée pour les moteurs légers SPECTRA et SPECTRA X. L'équipement doit être fourni par une source d'alimentation DC homologuée et homologuée répondant aux caractéristiques électriques minimales du produit. Il est impératif que l'alimentation en courant continu ait une protection de surintensité...
  • Page 7 Attention: NE PAS laisser tomber la source lumineuse. Elle contient des composants optiques en verre susceptibles d’être endommagés ou désalignés par le choc résultant d’une chute sur une sur- face dure. SPECTRA and SPECTRA X Light Engine Manual 57-10006...
  • Page 8 DISCLAIMER: Lumencor shall not be liable for injury to the user or damage to the product re- sulting from the SPECTRA being used in a way for which it was not intended and in complete disregard for any posted safety precautions and warnings.

  • Page 9: Installation And Operating Instructions

    3. Installation and Operating Instructions Region Part Number North America 29-10002 3.1 Contents Europe 29-10005 SPECTRA and SPECTRA X light engines all ship with the following list of United Kingdom 29-10004 standard components. Israel 29-10008 Australia/New Zealand 29-10024 1. SPECTRA or SPECTRA X light engine, configured with four, five, six or seven output channels.
  • Page 10 When setting the SPECTRA or SPECTRA X up for use, be sure to place the unit on a hard surface and avoid blocking or restricting airflow at the air intake (front panel, left of the light output port) or exhaust ports (on the underside of the unit, see Figure 9). The unit must be operated in a non- condensing environment (dew point <10ºC with controlled ambient temperature <30º...
  • Page 11 SPECTRA light engines have bandpass filters associated with each light source. These filters are part of the order specification and are not user-exchangeable. SPECTRA X light engines have user- exchangeable filters installed in removable paddles which the user can access once the top cover retained by two thumb screws is removed (Figure 3).
  • Page 12 3. Press and hold the right button on the pod until a menu of light engines appears. Turn the rotary dial to select “SPECTRA” from the menu. Press the right button again to return to the main (0– 100 analog intensity) display screen.
  • Page 13 2. Operation and installation of the SPECTRA GUI requires a computer running the Windows operating system with a free USB port.
  • Page 14 14.The G/Y button selects green or yellow light output from SPECTRA light engines. Green output is the default selection on start up. For SPECTRA X light engines, this control is inactive and green/yelllow output selection is accomplished by manual interchange of filters (Figure 3).
  • Page 15 OR relationship. Therefore source on/off controls on the light engine control pod, in the SPECTRA GUI or in third-party image acquisition control software must be set in the “OFF” state when using TTL control. The TTL interface does not control source output intensity, which remains under serial (RS-232) control.

  • Page 16: Spectral Output

    Figure 7. Rear panel of a SPECTRA X light engine equipped with metered dosage option. 1. Indicator LED. Illuminates when DC power supply (3) is connected and power switch (2) is ON. 2. ON (I)/OFF (O) electrical power switch. 3. Input connection from DC power supply.

  • Page 17: Product Specifications

    Figure 8. Representative spectral output of a SPECTRA X light engine equipped with bandpass filters compatible with Chroma Technology quad band dichroic VCGR-SPX-P01-PC and emitter VCGR-SPX-P01- EM. All outputs are electronically selectable except for Green/Yellow, which is accomplished by manual interchange of filters.

  • Page 18: Routine Maintenance And Troubleshooting

    Lumencor’s facility in Beaverton, Oregon for evaluation and, if necessary, repair. Any light engine return to Lumencor for service or repair requires a material authorization (RMA) number.

  • Page 19: Warranty

    8. Warranty SPECTRA and SPECTRA X light engines come with a 36 month warranty, starting on the original date of shipment from Lumencor. Warranty coverage starts on the original date of shipment from Lumencor. Light Engines qualifying for warranty service must be verifiably delivering performance that is substantially at variance with the levels documented in the certificate of conformance.
