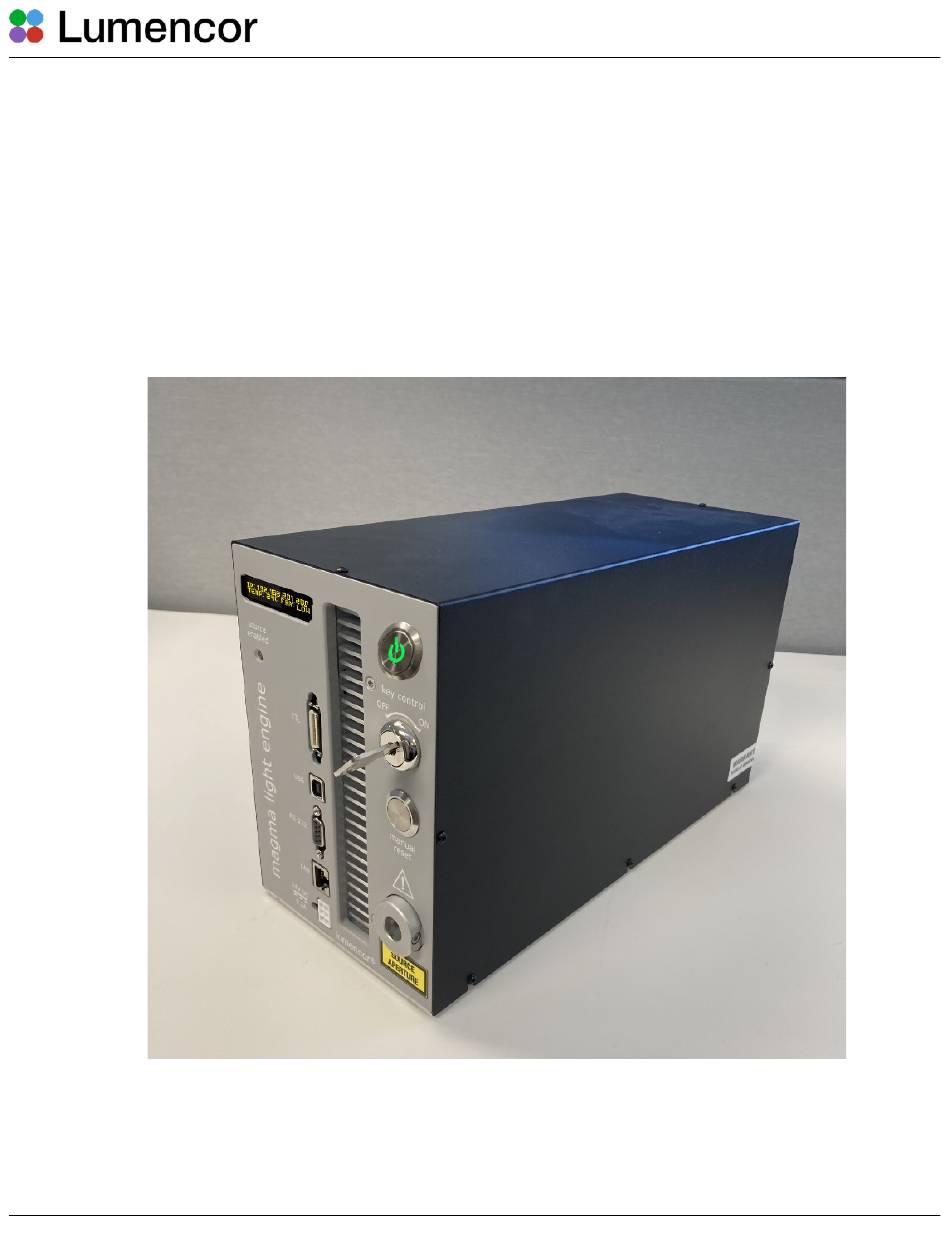

  • Page 1 Lumencor Operation Manual Engine MAGMA Light MAGMA Light Engine Manual 57-10019...
  • Page 2 Lumencor utilizes regulatory model names for all certified and CE marked products. The regulatory model names are traceable to all regulatory documentation, third party reports and certifications. “Regulatory Model: Magma” is used as a representative model for all certified and CE marked MAGMA products. Emissions This equipment has been tested and found to comply with the limits of EMC directive 2014/30/EU and FCC part 15 (CISPR 11:+A1:2016).

  • Page 3: Table Of Contents

    Table of Contents 1. Introduction 2. Precautions and Warnings 3. Installation 4. Operating Instructions 5. Light Output Characteristics 6. Operational Specifications 7. Routine Maintenance and Troubleshooting 8. Customer Support 9. Warranty MAGMA Light Engine Manual 57-10019...

  • Page 4: Introduction

    The light output port has a built-in adapter for connection to a light guide such as an optical fiber bundle. The light sources within the MAGMA Light Engine are controlled by an onboard microprocessor operating Lumencor firmware accessed via one of two serial interfaces, USB/RS232 or ethernet (TCP).

  • Page 5: Precautions And Warnings

    Warning: ONLY use the power supply provided by Lumencor. The Lumencor-supplied 24 V DC, 9.2 A external power supply is required for use with the MAGMA Light Engine. The light engine is required to be supplied by an approved/certified DC power source meeting the minimum electrical ratings of the product.
  • Page 6 Avertissement: Rayonnement optique Peut-être dangereux émis par ce produit . Ne regardez pas la lampe d'exploitation. Une blessure oculaire peut entraîner. Avertissement: UV émis par ce produit . Évitez les yeux et la peau exposition au produit non blindé. MAGMA Light Engine Manual 57-10019...

  • Page 7: Installation

    DISCLAIMER: Lumencor shall not be liable for injury to the user or damage to the product resulting from the MAGMA light engine® being used in a way for which it was not intended and in disregard or contravention of all posted safety precautions and warnings.
  • Page 8 When setting the MAGMA Light Engine up for use, place the unit on a hard surface and avoid blocking or restricting airflow at the air intake (front panel; Figure 2, #6) or exhaust port (rear panel) on the enclosure.
  • Page 9 Figure 2. MAGMA Light Engine front panel. 1. Status display panel. 2. Source enabled indicator. 3. TTL control input port. 4. Serial control input ports. 5. DC power supply input.
  • Page 10 OPERATION AND/OR DAMAGE THE PRODUCT, AND COULD IMPACT SAFETY. Customers planning to connect multiple Light Engine remote interlocks together will need to contact Lumencor prior to integration. INTERCONNECTING LIGHT ENGINES OR USING THE REMOTE INTERLOCK INCORRECTLY CAN RESULT IN ANOMALOUS BEHAVIOR AND/OR DAMAGE TO THE PRODUCTS.
  • Page 11 Do not press any buttons or insert any plugs during this time. 4.2.7 When the initiation sequence completes, “LUMENCOR” will flash on front display panel and then be replaced by a display showing the current light engine IP address, the internal temperature and the fan status. ...
  • Page 12 4.4.7 Click Properties button Figure 4. MAGMA Light Engine Control GUI. Control Page (Left) and Settings Page (Right). 1) Lumencor light engine model number and control software version. 2) ON/OFF toggle controls for individual light sources (filled circle = ON, ring = OFF).
  • Page 13 (nm) (29-10011). LEGACY commands are not generally useful for controlling the MAGMA Light Engine, so it is recommended that both ports be set to STANDARD mode (Figure 4, #8). Port configuration changes are applied instantaneously and are retained between power cycles.

  • Page 14: Light Output Characteristics

    Figure 5. TTL breakout cable for MAGMA Light Engine (29-10240). The cable provides 21 leads for individual channel triggering plus one global electronic shutter input lead. The length of the cable is 2 meters. shutter input (labeled “shutter”). TTL signals input to the global shutter will synchronously toggle all currently enabled source channels on and off.
  • Page 15 Certificates of conformance are also recorded in Lumencor’s database and copies can be requested by e-mail to techsupport@lumencor.com. The request message must include the 5-digit serial number of the light engine.

  • Page 16: Routine Maintenance And Troubleshooting

    503-213-4269 or through e-mail at techsupport@lumencor.com. Please be prepared to provide the 5-digit serial number of the light engine. Any light engine returned to Lumencor for repairs or upgrades requires a pre-issued return material authorization (RMA) number. To request an RMA number, fill out and submit the online request form.

  • Page 17: Warranty

    9. Warranty MAGMA Light Engines come with an 18- or 24-month warranty (as stated in the purchase terms and conditions), starting on the original date of shipment from Lumencor. Light Engines qualifying for warranty service must be verifiably delivering performance that is substantially at variance with the levels documented in the certificate of conformance.
