PROTEA 510G Instruction Manual

Greens mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

SPARES & INSTRUCTION
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 510G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PROTEA 510G

Summary of Contents for PROTEA 510G

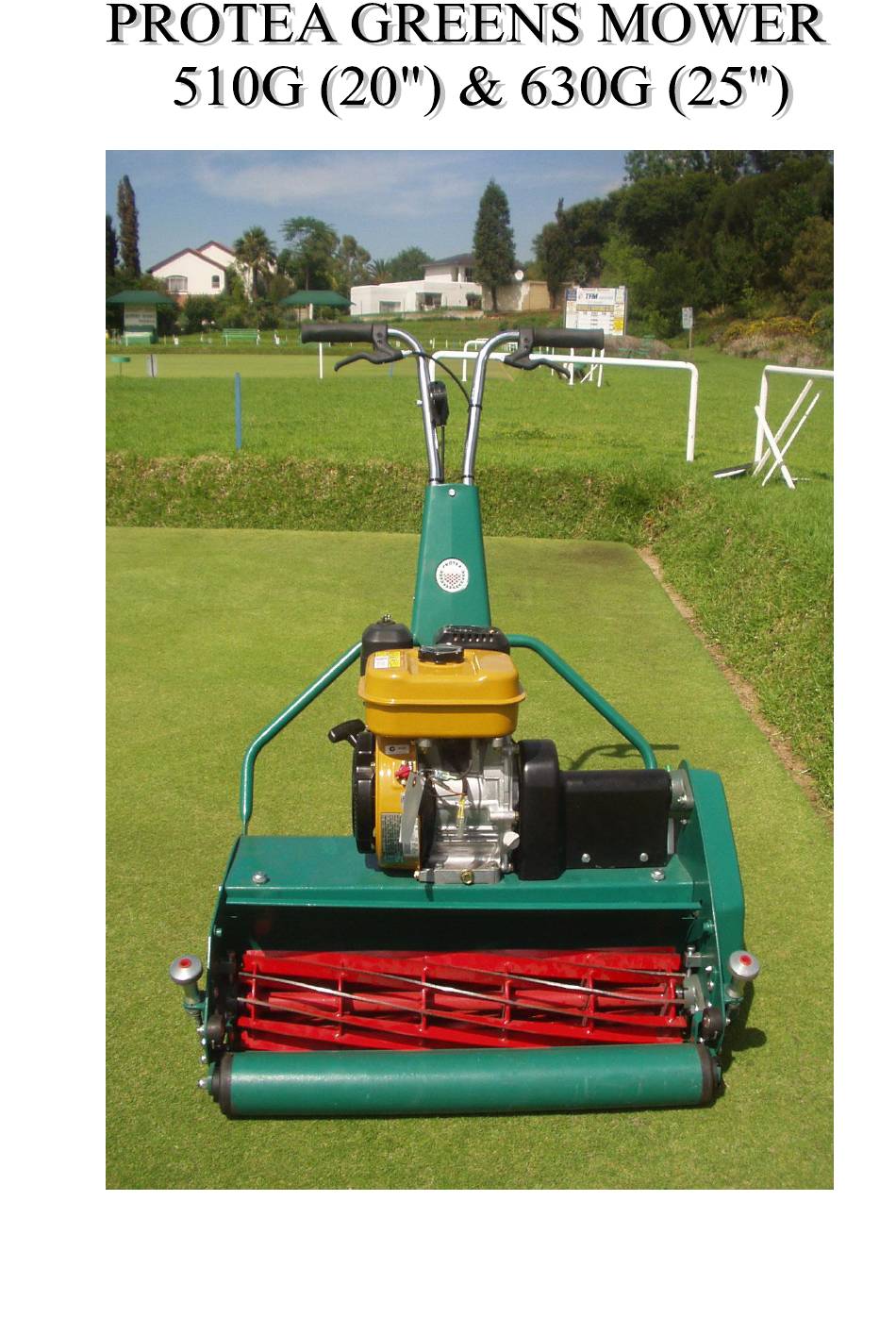

  • Page 1 SPARES & INSTRUCTION MANUAL...

  • Page 2: Contact Details

    Fax: 011 828 6869 Mobile: 082 458 7257 Postal Address Physical Address P.O.BOX 1673 32 Shaft Road BEDFORDVIEW Knights 2008 GAUTENG Germiston SOUTH AFRICA Gauteng South Africa Email: sales@proturf.co.za Email: sean@proturf.co.za For further information on any Protea products, please visit our website www.proturf.co.za...
  • Page 3 POWER LAWNMOWER SAFETY PRECAUTIONS Know your controls. Read the owner's manual 13 Stop the engine whenever you leave the carefully. Learn how to stop engine quickly in an mower, even for a moment. emergency. 14 Stop the engine before pushing mower Make sure the lawn is clear of sticks, stones, across gravel drives, walks or roads.

  • Page 4: Before Use

    BEFORE USE When the mower is removed from the carton the upper handle will be in a folded position, therefore it will be necessary to pivot the handle into the upright position. Secure the handle in this position with the clamp screw &...

  • Page 5: Cutter Setting

    CUTTER SETTING The cutter is set correctly when it is lightly touching the bottom blade along its FULL length. Hard bearing of uneven setting causes excessive or uneven wear on cutting edges and also places undue load on the engine. Before adjusting, lay the machine back with the handles on the ground;...
  • Page 6 FIGURE 1...
  • Page 7 SECTION 1 (REFER FIG.1) DESCRIPTION PART NO MOWER FRAME "G" LH 459306 GRASSBOX SUPPORT RUBBER with M8 x 30 cup sq nut (as from 01/08/2007 453085 CHAIN COVER 455777 CHAIN CASE MOUNTING SCREWS + M6 x 10 BOLTS/NUTS 1191908 630 GRASSBOX ASSY 458065 510 GRASSBOX ASSY 451290...
  • Page 8 FIG 2...
  • Page 9 FIG 2 PART NO DESCRIPTION 392041 510 LOW CUT BOTTOM BLADE (7 HOLES) 458092 630 LOW CUT BOTTOM BLADE (9 HOLES) 2071924 BOTTOM BLADE SCREWS STANDARD SOLE PLATE SCREWS M8 x 25 WITH NUT + SPRING WASH 459459 510 SOLE PLATE WITH DEFLECTOR 459461 630 SOLE PLATE WITH DEFLECTOR 451048...
  • Page 10 FIG 3...
  • Page 11 FIG 3 DESCRIPTION PART NO 458055 630 REAR ROLLER BUSHED : RUBBERISED 459155 630 DRUMS: SMOOTH 458006 510 DRUM BUSHED : RUBBERISED 459150 510 DRUM BUSHED : SMOOTH HD3115997 DRUM BUSHES 1129110 BEARING HOUSING 459198 RATCHET : For Back Drum 175dia (Smooth Steel Drum Only) 458002 RATCHET : For Back Drum 165dia (Rubberised Drum Only)
  • Page 12 FIG 4...
  • Page 13 FIG 4 DESCRIPTION PART NO. SMALL INTER. SPROCKET ASSY. 451231 SMALL INTER SPROCKET BEARING (6003) 1126037 LARGE INTER. SPROCKET ASSY. 41T 459245 LARGE INTER. SPROCKET BEARING (6204) 1122422 INTER. ADJUSTMENT BRACKET ASSY. 451215 CUP SQUARE BOLT/NUT/WASHER M8 x 20 191011 M8 x 20 BOLT/WASHER/NUT/SPRING WASHER STANDARD SLOT COVER: BOTTOM...
  • Page 14 FIG 5 HANDLE...
  • Page 15 FIG. 5 HANDLE DESCRIPTION PART NO. UPPER HANDLE ASSY 456375 510 LOWER HANDLE ASSY. 458026 630 LOWER HANDLE ASSY. 458095 HANDLE GRIP 1851071 CLUTCH WIRE ASSY. 451242 RH DEAD MAN LEVER 403013 OPTIONAL LH CLUTCH LEVER 403012 THROTTLE WIRE ASSY. 656720 CUP SQUARE M8 x 45 NUTS/SPRING WASHER UNIVERSAL...
  • Page 16 FIG 7...

  • Page 17: Centrifugal Clutch

    FIG 7 CENTRIFUGAL CLUTCH DESCRIPTION PART NO ENGINE 5HP 6200302 CENTRIFUGAL CLUTCH SHAFT FOR 430/510/630 FOR 12T 458037 CENTRIFUGAL CLUTCH BODY WITH SPRING 6200450 CENTRIFUGAL CLUTCH SHAFT OIL LITE BUSH H.D 3115997 CENTRIFUGAL CLUTCH TENSION SPRING 458040 ENGINE PACKING ROBIN EY20 458102 CUTTER CHAIN 3/8"...

This manual is also suitable for:

650g
