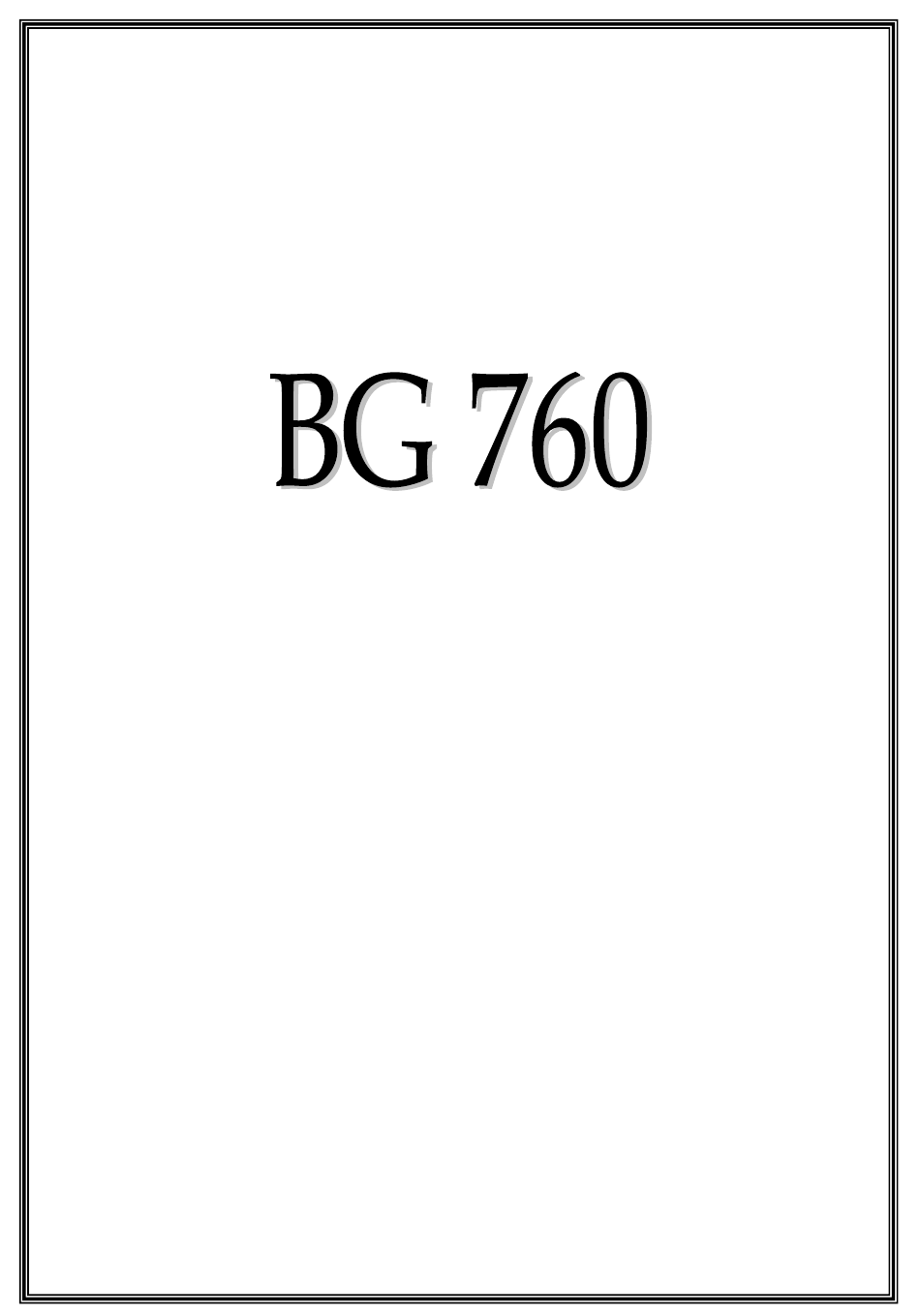

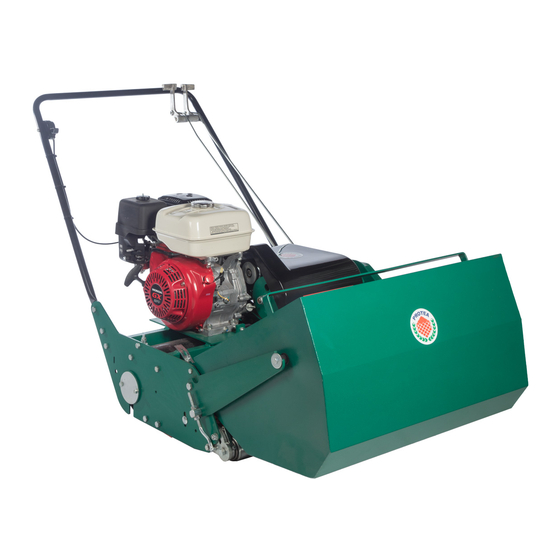

  • Page 1 SPARES & INSTRUCTION MANUAL...
  • Page 2 Fax: 011 828 6869 Mobile: 082 458 7257 Postal Address Physical Address P.O.BOX 1673 32 Shaft Road BEDFORDVIEW Knights 2008 GAUTENG Germiston SOUTH AFRICA Gauteng South Africa Email: sales@proturf.co.za Email: sean@proturf.co.za For further information on any Protea products, please visit our website www.proturf.co.za...

  • Page 3: Specifications

    SPECIFICATIONS MOTORS CUTTING CYLINDER Standard 220 Volt 1,5kw 1 phase 762mm long x 152mm diameter (30” x 6”) 16 single helix Other single or three phase motors available on request reversible blades; each blade 25mm (1”) x 8 gauge. (10 blade optional) TRANSMISSION BOTTOM BLADE Twin “V”...
  • Page 4 POWER LAWNMOWER SAFETY PRECAUTIONS Know your controls. Read the owner's manual 13 Stop the engine whenever you leave the carefully. Learn how to stop engine quickly in an mower, even for a moment. emergency. 14 Stop the engine before pushing mower Make sure the lawn is clear of sticks, stones, across gravel drives, walks or roads.

  • Page 5: Maintenance And Adjustment

    MAINTENANCE AND ADJUSTMENT Normal Speed: 3.2 m.p.h – 116 cuts per yard (127 cuts per meter) Low Speed: 2.1 m.p.h – 167 cuts per yard (183 cuts per meter) Speed Control To change speed, stop motor and move ribbed sliding sleeve (A) inwards to engage normal speed outwards for low speed as required.
  • Page 6 Setting Gauge This illustrates the method of setting the gauge to the height of cut, where in this instance height of cut is a 20-cent piece and a 5-cent coin. The distance between the setting gauge bar and the underside of the adjustable screw head represents the height of cut.
  • Page 7 Cutter To adjust the cutter setting, slacken cutter hanger clamp bolts (4) at each side of the machine, and proceed as follows; Adjustment: Slacken the top nuts (5) on adjusting screws. Then by tightening the bottom nuts (6), the cutter is lowered on to the bottom blade.
  • Page 8 Reversing Cutter: A feature of this machine is that the cylinder may be easily removed, reversed end for end and replaced. This provides a new keen cutter edge. If the bottom blade is badly worn, this should be replaced at the same time that the cutting cylinder is reversed or replaced. To withdraw cutter from machine, first remove cutter chain (7), sprocket (8) and grass deflector (9), refer illustration PAGE 1.
  • Page 9 Chains: Adjustment: Loosen chain adjuster locking bolt (14) and slide the chain adjuster in the desired direction. A chain should ever be adjusted tightly. It is advisable to leave the cutter chain with a little slackness so that slight adjustment of the cutter can be made without having to re-adjust this chain each time.
  • Page 10 SECTION 1 REFER FIGURE 1 ILLUS. DESCRIPTION PART NO. Side Frame Assy. LH 305795 Side Frame L.H. (Click System) 305800 Side Frame Assy. RH 305779 Side Frame R.H. (Click System) 305782 Scraper Trough Assy. 305664 Trough Cover Plate Assy. 305728 Trough Pivot Bar 305701 Washer M10 Spring Washer...
  • Page 11 SECTION 2 REFER FIGURE 2 ILLUS. NO. DESCRIPTION PART Main Stay Tube Assy. 301428 Housing Side Seat Block 302076 Bolt 1” x 3/8” UNF Standard Bolt 1 ¼ x 3/8 UNF Standard Washer 3/8 INT. S/Proof Standard Nut 3/8 UNF Standard Seat Block Clamp 302084...
  • Page 12 FIG 3 14.1 20 21 M8 x 20 M8 x 20 Serscrew Serscrew springwasher & springwasher & washer washer...
  • Page 13 FIG 3 FIG. NO COMPONENT PART NUMBER Front Roller Assy 301516 Bearing Seal Washer 301057 Front roller Bearing 1122327 LH Front Roller Bracket 301030 RH Front Roller Bracket 301049 Front Roller Adj. Rod Assy 301559 Adj Rod Retainer 2501036 Adj Rod Purchase Block 301583 Nut 5/16 UNF 2321180...
  • Page 14 FIG 4...
  • Page 15 FIG 4 ILLUS. PART DESCRIPTION Drum Outer Assy. 303992 Inner Drum Assy. 304012 Bush 1771189 Ratchet Box Assy. 301188 Drum Pawls 333024 Ratchet Box Screw 5/8 x 1/4 UNC Standard Drum Shaft Sleeve 301808 Drum Shaft 301217 Key No.9 Woodruff 3802267 Drum Shaft Collar LH 301840...
  • Page 16 FIGURE 5...
  • Page 17 FIG 5 ILLUS. PART DESCRIPTION Clutch Housing Side 302068 Clutch Housing Body Assy 302092 M5 x 10 Set Screw Standard Clutch Ramp Moveable 305509 M6 x 80 Hex Bolt Standard Washer M6 Standard Nut M6 Standard M8 Spring Washer Standard 5/16 UNF Nut Standard Clutch Ramp Fixed...
  • Page 18 FIGURE 6...
  • Page 19 SECTION 6 REFER FIGURE 6 ILLUS. PART DESCRIPTION Counter Shaft 302875 Counter Shaft Bearing 1122422 Counter Shaft Bearing Housing LH 301815 Counter Shaft Bearing RH 301825 Internal Circlip 40mm Standard M12 x 35 Set Screw Standard M12 Nylock Nut Standard 5/16 UNF Screw x 1"...
  • Page 20 FIGURE 7...
  • Page 21 SECTION 7 REFER FIGURE 7 ILLUS. PART DESCRIPTION Handle Assy. 305390 Handle Assy. (Variable Speed) 305391 Handle Mounting Bolt M10 x 25 Hex Bolt Standard M10 Spring Washer Standard M10 Nut Standard Cord Carrier Bar 305437 Cord Carrier Assy. 305445 Cord Grip 173024 Pan Head Screw M5 x 10...
  • Page 22 FIGURE 8...
  • Page 23 SECTION 8 REFER FIGURE 8 ILLUS. PART DESCRIPTION Motor, 1 Phase 1,5 Kw 1671607 Motor, 3 Phase 1,5 Kw 1674306 Taperlock 305526 Grub Screw M10 X 20 Standard Taperlock Pulley 305525 Cable Extension Plug (Female) 1 Phase 1661235 Motor Plate Plug (Male) 1 Phase 1661150 Motor Plate Plug Adaptor Bracket 1661237...
  • Page 24 FIGURE 9...
  • Page 25 SECTION 9 REFER FIGURE ILLUS. PART DESCRIPTION Grassbox 302640 Grassbox Brackets 302641 Deflector 305648 Setting Bar 303028 M6 x 30 Pan Head Screw Standard M6 Wing Nut Standard Grasbox Pivot Stud 305621 Top Spacer Bar 305630 M10 x 25 Set Screw Standard M10 Spring Washer Standard...
  • Page 26 SECTION 10 REFER FIGURE 10 ILLUS. DESCRIPTION PART NO. Motor Cover 305808 Chain Cover Case 301970 Chain Cover Knob 171723 Chain Cover Stud 302033 FIG 10...
  • Page 27 SECTION 11 REFER FIGURE 11 ILLUS. DESCRIPTION PART NO. Cradle Frame 303301 Solid Wheels with Ball Bearings 6364500 Wheel Washers 25 DIA Standard RH Spring 303300.1 LH Spring 303300.10 Split Pin 3mm Standard FIGURE 11 PAGE 23...
  • Page 28 TEASING RAKE/BRUSH ATTACHMENT...
  • Page 29 TEASING RAKE/BRUSH ATTACHEMENT REFER FIGURE ILLUS. PART DESCRIPTION Teasing Rake Assy. 300783 Teasing Brush Bracket c/w Brush & Mounting Brackets 304490 Clamping Channel 304507 M6 x 25 Bolt Standard M6 Square Nut Standard Tyne 166246 Tyne Guide 304514 Clamping Rubber 304523 Rake Bar 304488...
  • Page 30 ACCESSORIES...
  • Page 31 ACCESSORIES REFER FIGURE ILLUS. PART DESCRIPTION Groomer Reel Assy. 5306080 Groomer Reel Shaft 5306084 Groomer Blade (62 for Assy.) 5306081 Groomer Spacer 5306082 Groomer Reel Shaft Lock Nut 5306083 Bearings 1123423 Bearing Cover Washer 163432 Bearing Lock Nut 161277 Pin Type Scarifier Reel Assy. 393100 Scarifier Pins SVG 2441300...
