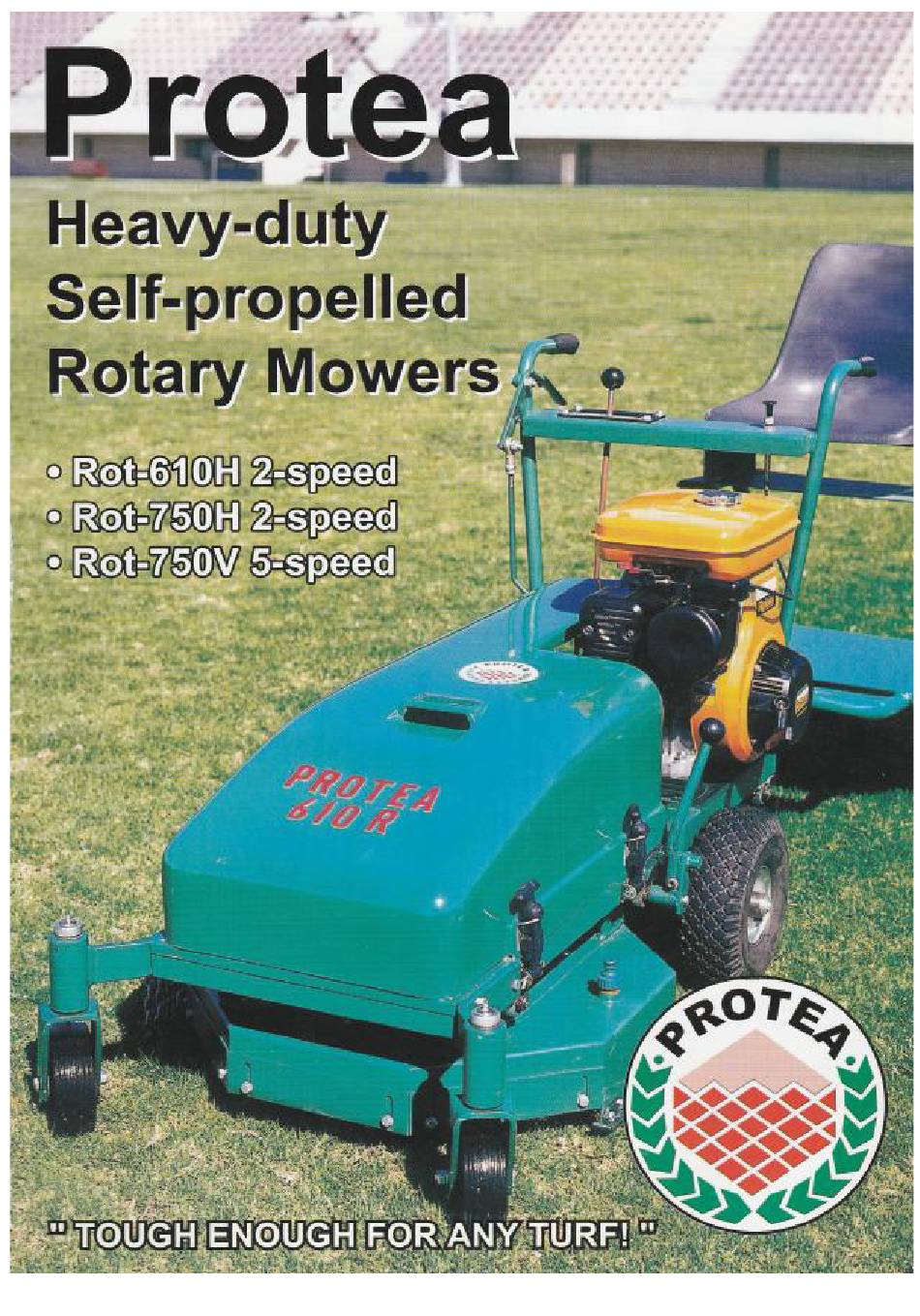

PROTEA Rot-610H Manual

Heavy duty rotary mower
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rot-610H and is the answer not in the manual?

Questions and answers

Related Manuals for PROTEA Rot-610H

Summary of Contents for PROTEA Rot-610H

  • Page 2: Contact Details

    Fax: 011 828 6869 Mobile: 082 458 7257 Postal Address Physical Address P.O.BOX 1673 32 Shaft Road BEDFORDVIEW Knights 2008 GAUTENG Germiston SOUTH AFRICA Gauteng South Africa Email: sales@proturf.co.za Email: sean@proturf.co.za For further information on any Protea products, please visit our website www.proturf.co.za...
  • Page 3 POWER LAWNMOWER SAFETY PRECAUTIONS Know your controls. Read the owner's manual 13 Stop the engine whenever you leave the carefully. Learn how to stop engine quickly in an mower, even for a moment. emergency. 14 Stop the engine before pushing mower Make sure the lawn is clear of sticks, stones, across gravel drives, walks or roads.

  • Page 4: Pre-Start Check

    PRE START CHECK Your Protea Rotary Mower comes to you tested and ready to operate with engine and gearbox already filled with oil. Before operating the machine, thoroughly check the area to be cut and remove any object that may cause damage to the machine.
  • Page 5 OPERATING INSTRUCTIONS AND MAINTENANCE GUIDE BLADES: Before checking blades, 1. Set throttle control stop. 2. Disconnect spark plug wire. Keep blades sharp. Rotate cutter till blade appears at side chute. Unscrew special brass nut, remove wavy washer and blade assembly can be taken out from underneath. Make sure bolt is not worn (replace if necessary).

  • Page 6: Safety Instructions

    • Check all nuts, bolts and screws often; always be sure the mower is in safe operating condition. Use only replacement parts made and guaranteed by PROTEA. • Add fuel BEFORE starting engine. Avoid spilling petrol and do not fill the tank while engine is running or while you are smoking.
  • Page 7 GEARBOX ADJUSTMENTS 2 SPEED GEARBOX: The “Protea” Gearbox has 3 positions, 1. Left - SLOW 2. Centre - NEUTRAL 3. Right - FAST If the gearbox and lever is in the slow (1) or fast (2) position, and the mower does not move, adjust as follows: Release 4 x M8 bolts and reposition selector grid (see item 5 –...
  • Page 8 HANDLE ASSY – 2 SPEED...
  • Page 9 HANDLE ASSY 2 SPEED FIG. NO COMPONENT PART NUMBER QTY P/M HANDLE ASSY PETROL ROT/201509 1 OFF HANDLE ASSY DIESEL (unimag) 2 OFF ROT/201835 HANDLE GRIPS SI/1851069 2 OFF CLUTCH LEVER ROT/201421 1 OFF HEX BOLT C/W NUT & SPRING WASHER M8 X 40 2 OFF SELECTOR GRID...
  • Page 10 CUTTER DISC ASSY. 2 & 5 SPEED 12 18...
  • Page 11 CUTTER DISC ASSY 2 AND 5 SPEED FIG. NO COMPONENT PART NUMBER QTY P/M BLADE 750 ROT/201446 4 OFF BLADE 610 ROT/201560 4 OFF FLAIL BOLT NUT ROT/201455 4 OFF WAVY WASHER ROT/201457 4 OFF FLAIL BOLT ROT/201452 4 OFF LH BELT GUARD: TOP DECK : 5 SPEED ROT/201496 1 OFF...
  • Page 12 2 SPEED DRIVE ASSY.
  • Page 13 2 SPEED DRIVE ASSY FIG. NO COMPONENT PART NUMBER QTY P/M JOCKEY PULLEY BRACKET ASSY ROT/201460 1 OFF PILLOW BLOCK ROT/1128600 2 OFF BELT SUPPORT SLIDE ASSY ROT/201475 1 OFF BELT GUIDE ROT/201470 1 OFF CIRCLIP EXTERNAL 15 DIA ROT/1503030 1 OFF CLUTCH PULLEY PIN &...
  • Page 14 TOP DECK ASSY.
  • Page 15 TOP DECK ASSY (750) 5 2 SPEED FIG. NO COMPONENT PART NUMBER QTY P/M CHAIN GUARD 750R ROT/201411 1 OFF CHAIN GUARD 610R ROT/201523 1 OFF LIFTING FRAME: 5 SPEED 750R ROT/201412 1 OFF LIFTING FRAME: 2 SPEED 750R ROT/201515 1 OFF SKID RH ROT/201492...
  • Page 16 2 SPEED MAIN FRAME...
  • Page 17 2 SPEED MAIN FRAME FIG. NO COMPONENT PART NUMBER QTY P/M RH FRONT WHEEL BRACKET ROT/201401 1 OFF LH FRONT WHEEL BRACKET ROT/201514 1 OFF FRONT WHEEL FORK ROT/201403 2 OFF FRONT WHEEL COLLAR ROT/201404 2 OFF FRONT WHEELS 610 & 750R ROT/6361600 2 OFF (FRONT WHEEL ROT610 BEFORE MARCH 2006)
  • Page 18 2 & 5 SPEED LINKAGE ASSY...
  • Page 19 LINKAGE ASSY 2 AND 5 SPEED FIG. NO COMPONENT PART NUMBER QTY P/M LIFTING FRAME BLOCK ROT/201429 4 OFF LIFTING FRAME PIN ROT201430 4 OFF LIFTING FRAME NUT ROT/2321242 4 OFF BALL KNOB ROT/1851060 1 OFF RAISING FRAME LINKAGE : FRONT ROT/201416 1 OFF RAISING FRAME LINKAGE : REAR...
  • Page 20 DIFFERENTIAL...
  • Page 21 DIFFERENTIAL FIG. NO COMPONENT PART NUMBER QTY P/M DIFFERENTIAL HOUSING RH (M8 THREAD) ROT/201600 1 OFF DIFFERENTIAL HOUSING LH (8 DIA CLEARANCE) ROT/201601 1 OFF DIFFERENTIAL AXLE LH ROT/201602 1 OFF DIFFERENTIAL AXLE RH ROT/201603 1 OFF CROSS PIN ROT/201604 1 OFF BEVEL GEAR ROT/201605...

  • Page 22: Speed Gearbox

    2 SPEED GEARBOX (M6x38) (M6x85) (M6x38)
  • Page 23 2 SPEED GEARBOX FIG. NO COMPONENT PART NUMBER QTY P/M GEARBOX HOUSING LH ROT/201556 1 OFF GEARBOX HOUSING RH ROT/201557 1 OFF GEARBOX GASKET ROT/201558 1 OFF GEARBOX LEVER : STANDARD : ROT/201554 1 OFF 2 SPEED GEARBOX LEVER : STANDARD : ROT/201802 1 OFF LOW PROFILE HANDLE...
  • Page 24 LOW PROFILE HANDLE...
  • Page 25 LOW PROFILE HANDLE FIG. NO COMPONENT PART NUMBER QTY P/M HANDLE ROT/201810 1 OFF JOCKEY PULLEY ROD ROT/201808 1 OFF GEAR SELECTOR ROD & NUT ROT/201804 1 OFF HANDLE SPACER BAR ROT/201806 1 OFF JOCKEY PULLEY ROD LEVER ROT/201800 1 OFF THROTTLE CABLE (1140MM) : 2 SPEED ROT/1851080 1 OFF...
  • Page 26 TRAILER SEAT – ROTARY...
  • Page 27 TRAILER SEAT (WHEEL TYPE) FIG. NO COMPONENT PART NUMBER QTY P/M TRAILER SEAT (WHEEL TYPE) - COMPLETE HD/657609 WHEELS ROT/6361850 2 OFF CHAIR FRAME HD/657608 4 OFF SEAT HD/657609.3 1 OFF SPRING HD/4006500 4 OFF SPRING SLEEVE HD/657614 4 OFF WHEEL SHAFT ROT/657609.6 1 OFF...

This manual is also suitable for:

Rot-750hRot-750v
