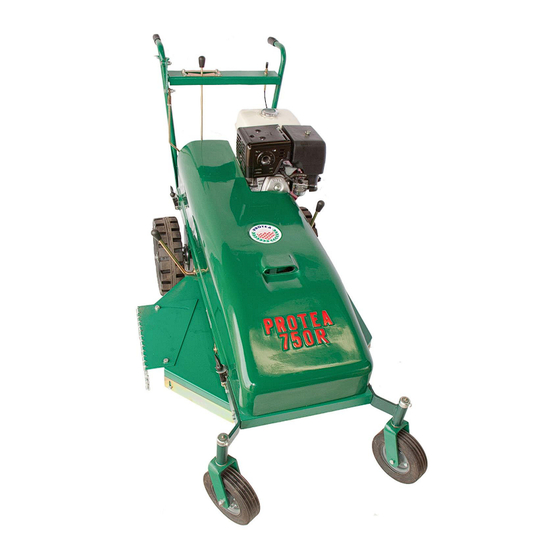

PROTEA ROTARY MOWER
P.O. Box 1673
Bedfordview
2008
Manufacturers of Industrial Lawnmowers, Scarifiers & Sodcutters
ROT750 & ROT610
OPERATING INSTRUCTIONS
AND SPARE PARTS MANUAL
www.proteamachines.com
PROTEA TURF EQUIPMENT
Reg. No. CK 1989/023716/23
Vat Reg. No. 4830119907
32 Shaft Rd
Knights, Germiston
Tel: +2711 828 9935
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PROTEA ROT750
Summary of Contents for PROTEA ROT750

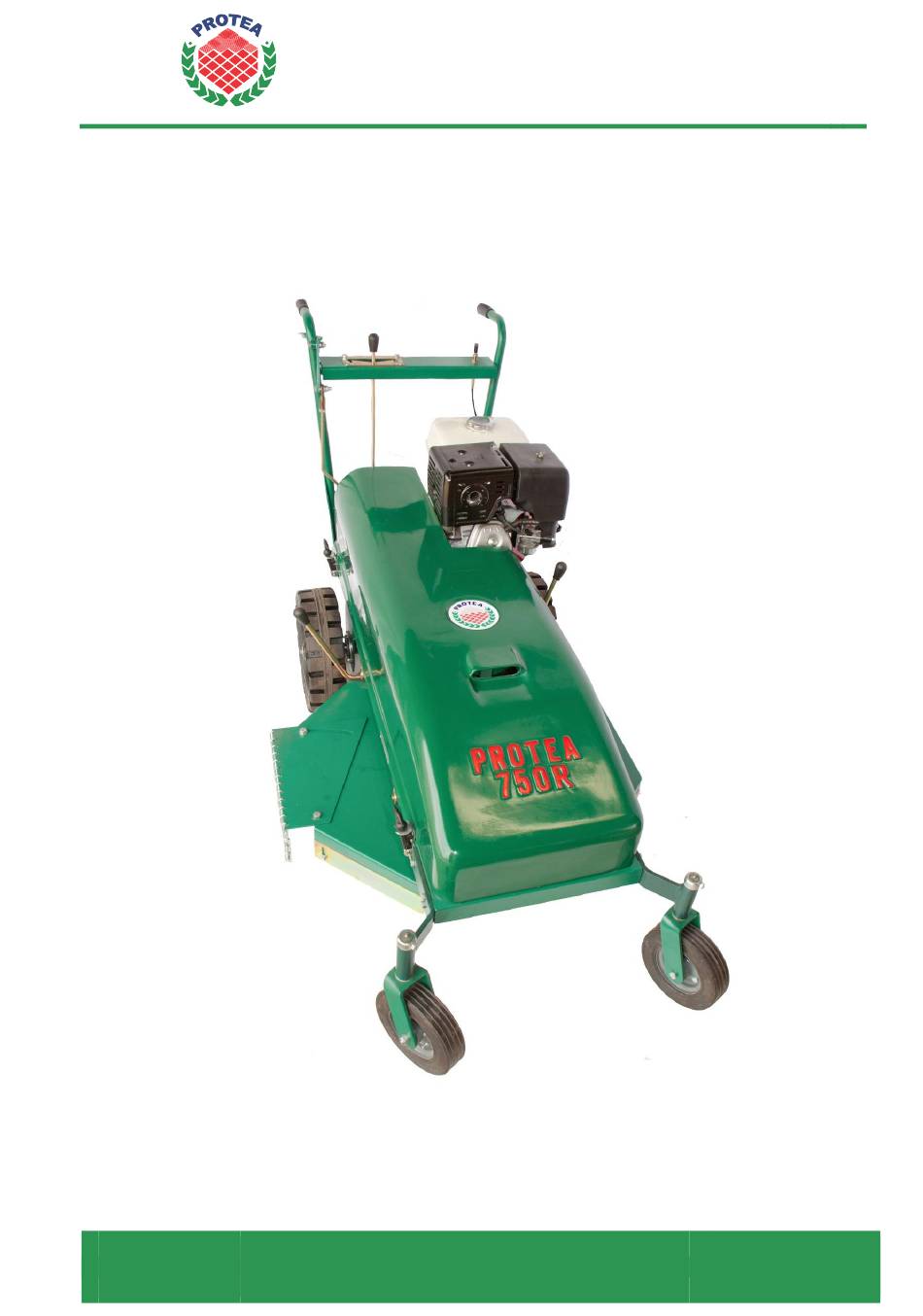

- Page 1 PROTEA TURF EQUIPMENT Manufacturers of Industrial Lawnmowers, Scarifiers & Sodcutters Reg. No. CK 1989/023716/23 Vat Reg. No. 4830119907 PROTEA ROTARY MOWER ROT750 & ROT610 OPERATING INSTRUCTIONS AND SPARE PARTS MANUAL P.O. Box 1673 32 Shaft Rd Bedfordview www.proteamachines.com Knights, Germiston...
- Page 2 +2782 458 7257 Postal Address Physical Address P.O. Box 1673 32 Shaft Road Bedfordview Knights 2008 Germiston Gauteng Gauteng South Africa South Africa Email: spares@proturf.co.za Email: sales@proturf.co.za Email: sean@proturf.co.za For further information on any Protea products, please visit our website www.proteamachines.com...
- Page 3 LAWNMOWER SAFETY PRECAUTIONS 1. Know your controls. Read the owner's manual 13. Stop the engine whenever you leave the carefully. Learn how to stop engine quickly in the mower unattended, even for a moment. event of an emergency. 14. Stop the engine before pushing the mower 2.
-
Page 4: Pre-Start Check
PRE START CHECK Your Protea Rotary Mower comes to you tested and ready to operate with the engine and gearbox already filled with oil. Before operating the machine, thoroughly check the area to be cut and remove any object that may cause damage to the machine. - Page 5 OPERATING INSTRUCTIONS AND MAINTENANCE GUIDE BLADES: Before checking blades, 1. Set throttle control stop. 2. Disconnect spark plug wire. Keep blades sharp. Rotate cutter disc until the blade appears at the side chute. Unscrew the rectangular nut, remove the wavy washer and the blade assembly can be removed from underneath. Ensure the bolt is not worn (replace if necessary).
-
Page 6: Additional Safety Instructions
• Check all nuts, bolts and screws often; always be sure the mower is in safe operating condition. Use only replacement parts made and guaranteed by PROTEA. • Add fuel BEFORE starting engine. Avoid spilling petrol and do not fill the tank while engine is running or while you are smoking. -
Page 7: Spare Parts
SPARE PARTS... - Page 8 FIGURE 1...
- Page 9 M8x20 SET SCREW + M8 FLAT WASHER + M8 SPRING WASHER + M8 NUT STANDARD THROTTLE CABLE 201850 VERTICAL CLUTCH ROD 201513 SPRING - CLUTCH LEVER 4002080 FIBREGLASS COVER ROT750 3500300 FIBREGLASS COVER ROT610 3500400 BONNET CLIP (SOLD IN SETS OF 2) 1851070 CLUTCH ROD END 1124050...
- Page 10 FIGURE 2 18 13...
- Page 11 FLAIL BOLT 201452 LH BELT GUARD 201528 EXTERNAL CIRCLIP (FOR MAIN SPINDLE SHAFT) 1507000 RH BELT GUARD 201529 ROT750 BLADE CARRIER 201413 ROT610 BLADE CARRIER 201520 M10x30 SET SCREW + M10 SPRING WASHER STANDARD INTERNAL CIRCLIP (FOR SPINDLE BEARING HOUSING) 1504000...
- Page 12 FIGURE 3...
- Page 13 DIFFERENTIAL FLANGE BEARING 1128550 ROT750 BACK WHEEL 6361700 ROT610 BACK WHEEL 6361750 PLATE SPROCKET 201491 DIFFERENTIAL SUPPORT BRACKET: ROT750 201562 DIFFERENTIAL SUPPORT BRACKET: ROT610 201726 "O" RING 2722244 DIFFERENTIAL KEY 201512 M8x70 SET SCREW + M8 SPRING WASHER + M8 NUT STANDARD 5/16"...
- Page 14 FIGURE 4...
- Page 15 M8x20 SET SCREW + M8 SPRING WASHER + M8 NUT STANDARD ROT750 TOP DECK 201409 ROT610 TOP DECK 201501 1661130 TAP ADAPTOR ROT750 TOP DECK SLIDE 201410 ROT610 TOP DECK SLIDE 201519 M8x20 SET SCREW + M8 SPRING WASHER + M8 NUT STANDARD LH SKID 201493...
- Page 16 FIGURE 5...
- Page 17 TOP DECK SPRING 4002050 HEIGHT ADJUSTER BRACKET 201447 HEIGHT ADJUSTER LEVER 201444 BALL KNOB 1851060 ROT750 MAIN FRAME 201453 ROT610 MAIN FRAME 201527 TOP DECK "V" BELT 3602020 NYLON BUSH 458000 M8x50 SET SCREW + M8 SPRING WASHER + M8 NUT...
- Page 18 FIGURE 6...
- Page 19 REFER FIG. 6 ILLUS. NO DESCRIPTION PART NO LIFTING FRAME BLOCK 201429 LIFTING FRAME PIN 201430 LIFTING FRAME NUT 2321242 BALL KNOB 1851060 RAISING FRAME LINKAGE: FRONT 201416 RAISING FRAME LINKAGE: REAR 201417 TOP DECK SPRING 4002050 PUSH ROD SPRING 651954 PUSH ROD 201442...
- Page 20 FIGURE 7...
- Page 21 REFER FIG. 7 ILLUS. NO DESCRIPTION PART NO RH DIFFERENTIAL HOUSING (FEATURES M8 THREAD) 201600 LH DIFFERENTIAL HOUSING (FEATURES Ø8 CLEARANCE HOLES) 201601 LH DIFFERENTIAL AXLE 201602 RH DIFFERENTIAL AXLE 201603 CROSS PIN 201604 BEVEL GEAR 201605 PINION WASHER 143271 H.T.
- Page 22 FIGURE 8...
- Page 23 REFER FIG. 8 ILLUS. NO DESCRIPTION PART NO LH GEARBOX HOUSING 6200200.1 RH GEARBOX HOUSING 6200200.2 GEARBOX GASKET 201558 GEARBOX LEVER 201554 GEARBOX PAWLS 6200200.5 58T GEARBOX PINION 201550 OIL SEAL 40x28x7 - FOR PULLEY 2722220 OIL SEAL 35x25x7 - FOR SPROCKET 2722230 OIL SEAL 24x15x7 - FOR LEVER 2722240...
- Page 24 FIGURE 9...
- Page 25 REFER FIG. 9 ILLUS. NO DESCRIPTION PART NO COMPLETE ROTARY TRAILER SEAT ASSEMBLY 657609 TRAILER SEAT WHEEL 6361850 CHAIR FRAME 657608 SEAT 657612 SPRING 4006500 SPRING SLEEVE 657614 WHEEL SHAFT 657609.6 M10x20 SET SCREW + 3x M10 FLAT WASHERS + M10 NYLOC NUT STANDARD TOW BAR 657609.8...
