DE Beipackzettel / EN Instruction leaflet / FR Fiche d'instruction /
ES Manual de instrucciones
DE Schutzschild / EN Protective shield / FR Écran de protection/
ES Escudo protector

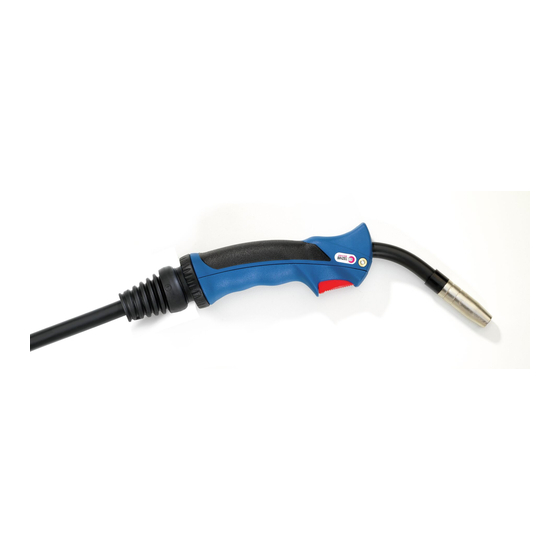

MB GRIP, ABIMIG GRIP
1
8
7
Linsenschraube
1
(2 Stck)
Schutzschild
2

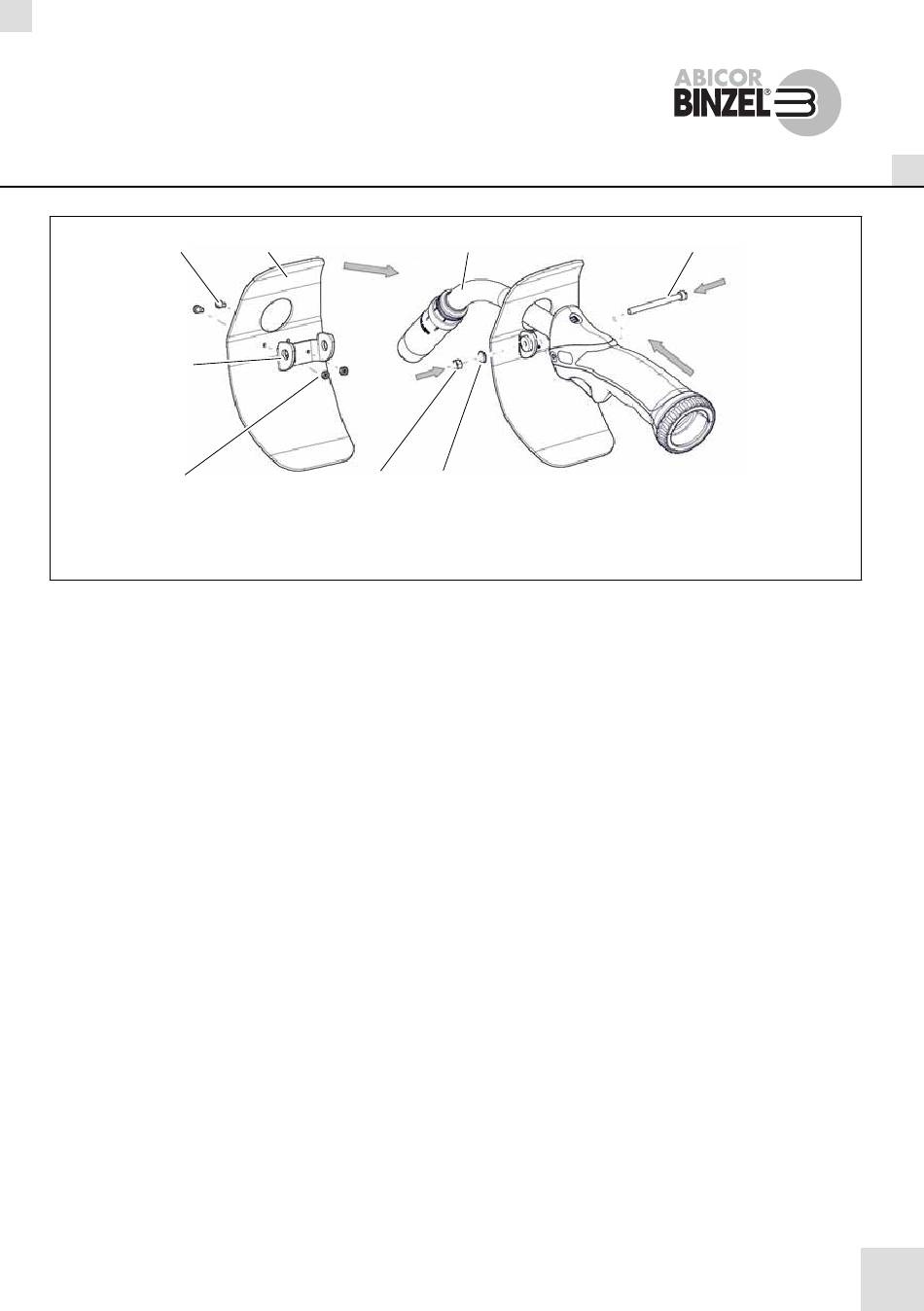

Fig. / Abb. 1 Montage Schutzschild
Das Schutzschild dient zum Schutz vor Schweißspritzern und Wärme. Es kann an den MIG/MAG
Schweißbrennern MB GRIP und ABIMIG GRIP montiert werden. Abb. 1 zeigt einen ABIMIG GRIP
Schweißbrenner.
1 Winkel (8) mit Linsenschrauben (1) und Seckskantmuttern (7) an Schutzschild (2) festschrauben und
sichern.
2 Schweißbrenner (3) von hinten durch die Bohrung des Schutzschildes (2) stecken. Achten Sie auf die
Konzentrizität der Bohrungen im Handgriff des Schweißbrenners (3) und des Winkels (8).
3 Vormontiertes Schutzschild (2) und Schweißbrenner (3) mit Zylinderschraube (4), Scheibe (5) und
Sechskanntmutter (6) montieren.
Die Demontage erfolgt in umgekehrter Reihenfolge.
2
6
5
Schweißbrenner
3
Zylinderschraube M4x50
4
Scheibe
5
3
Sechskantmutter M4
6
Sechskantmutter M3
7
(2Stck.)
www.binzel-abicor.com
4
Winkel
8
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MB GRIP and is the answer not in the manual?

Questions and answers

Summary of Contents for Abicor Binzel MB GRIP

  • Page 1 Fig. / Abb. 1 Montage Schutzschild Das Schutzschild dient zum Schutz vor Schweißspritzern und Wärme. Es kann an den MIG/MAG Schweißbrennern MB GRIP und ABIMIG GRIP montiert werden. Abb. 1 zeigt einen ABIMIG GRIP Schweißbrenner. 1 Winkel (8) mit Linsenschrauben (1) und Seckskantmuttern (7) an Schutzschild (2) festschrauben und sichern.
  • Page 2 Fig. 1 The protective shield provides protection from weld spatter and heat. It can be mounted on the MIG/MAG welding torches MB GRIP and ABIMIG GRIP. Fig. 1 shows an ABIMIG GRIP welding torch. 1 Use the fillister head screws (1) and hexagon nuts (7) to fasten the bracket (8) onto the protective shield (2) and secure it in place.
  • Page 3 L'écran de protection sert à protéger des projections de métal et de la chaleur. Il peut être fixé sur les torches de soudage MIG/MAG MB GRIP et ABIMIG GRIP. Une torche de soudage ABIMIG GRIP est représentée en fig. 1.
  • Page 4 Fig. 1 El escudo protector se utiliza como protección contra las proyecciones de soldadura y temperaturas elevadas. Puede montarse en las antorchas de soldadura MIG/MAG MB GRIP y ABIMIG GRIP. La figura 1 muestra una antorcha de soldadura ABIMIG GRIP.
