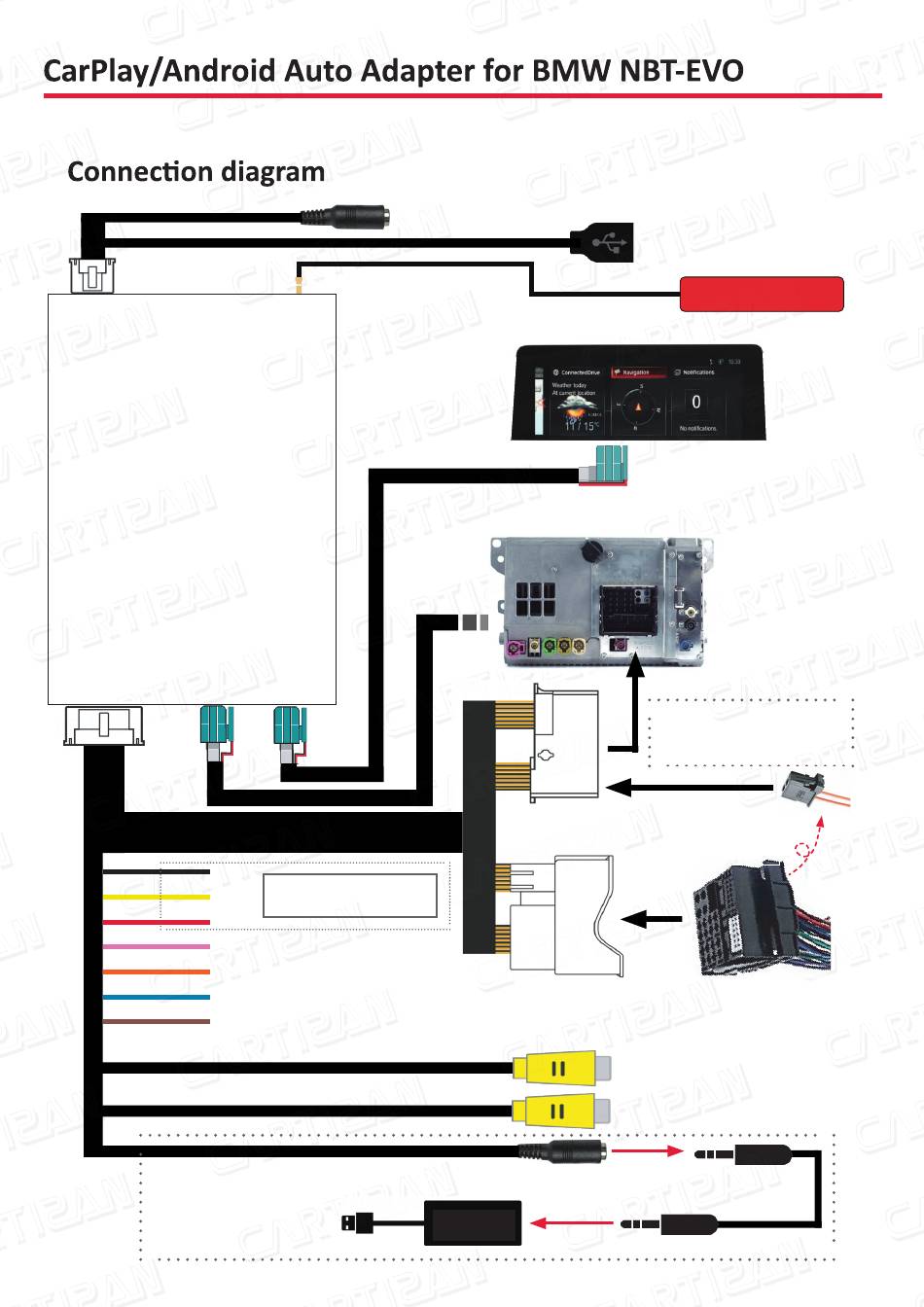

Model No.: VI-BM-81C3
USB
VGA
POWER
LVDS 2 LVDS 1
GND
B+
ACC
Le�-Det, N/A
Right-Det, N/A
CAMERA-12V, Supply 12V power for front & rear camera
REVERSE, connect to reversing light if
Plug in factory USB port
Connect external MIC
TF
Provided 6pin
LVDS cable
OEM 6pin
LVDS cable
Supply power for external
video device
AUX-USB
CAMERA-12V
cable does not output 12V
REAR-CVBS, rear camera input
FRONT-CVBS, front camera input
Audio out
Connect phone/USB s�ck
OEM screen
OEM head unit
Move fiber op�c cable to the
provided quadlock connector,
then plug into the head unit
OEM quadlock
connector
3.5mm AUX cable
V1.0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Cartizan VI-BM-81C3
Summary of Contents for Cartizan VI-BM-81C3
- Page 1 V1.0 Model No.: VI-BM-81C3 Connect external MIC Connect phone/USB s�ck Provided 6pin OEM screen LVDS cable OEM 6pin OEM head unit LVDS cable POWER LVDS 2 LVDS 1 Move fiber op�c cable to the provided quadlock connector, then plug into the head unit...
- Page 2 Car Model NBT-EVO HU OEM MIC Screen Size 800*480 6.5" Add-on 1280*480 8.8" 1440*540 10.25" NOTE! Please disconnect & reconnect interface's power after changing any DIP setting. Press and hold "MENU" or "BACK" bu�on on iDrive controller for 3S to switch menu. It will also switch to add on interface automa�cally a�er plugging a mobile phone or USB s�ck.
