- Page 1 INSTRUCTION MANUAL CARPLAY/ANDROID AUTO INTEGRATION FOR PEUGEOT NAC SYSTEM Model No. VI-FR-189C MCU Ver. 190512 CP-SW Ver. C7.5 Manual Ver. Date May 27, 2019...
-
Page 2: Table Of Contents
www.icartizan.com CONTENT Compatibility ....................4 Features ....................... 5 Package Components ................... 6 Connection Diagram ..................7 DIP Setting ....................8 Operation Instruction ................... 9 How To Switch From Original To Add On Interface ........9 How To Delivering Audio To OEM Radio ............ 9 Add On Module UI ...................10 Apple CarPlay ..................11 Android Auto ...................12... - Page 3 www.icartizan.com WARNING In order to protect the driving safety and avoid break the traffic law; please DO NOT operate the interface while driving. The reversing surveillance function just is used in reversing assistance. Please check the entire surroundings while reversing. All steps of installation should be done by the well-trained specialist.
-
Page 4: Compatibility
www.icartizan.com COMPATIBILITY Make Models Years Original system 208, 308, 2008, Peugeot 3008, 4008, 5008 Citroën C3, C4, C6 NAC system 2017- Toyota ProAce Opel Crossland Navi 5.0 IntelliLink... -
Page 5: Features
www.icartizan.com FEATURES Integrated 3 in 1 module supports Apple CarPlay, Android Auto, and screen mirroring functions Support USB HD video and lossless music playback (APE, WAV, FLAC, MP3, WMA, etc.) Offers 2 video in for front/rear view camera and 1 AV in for external AV device like digital TV tuner Support PDC (Parking Distance Control) and FPG (Flexible Parking Guidelines) Supply pure 12V power to the front/rear view camera... -
Page 6: Package Components

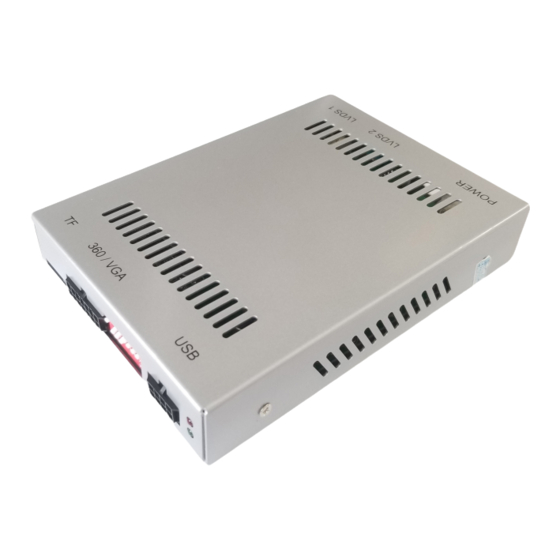

www.icartizan.com PACKAGE COMPONENTS Main Unit Quadlock Power Cable LVDS Cable USB/MIC Cable AUX-USB Adapter Optional Components: External Microphone (Designed for car without factory 3.5mm AUX Cable microphone) -
Page 7: Connection Diagram
www.icartizan.com CONNECTION DIAGRAM Connect external MIC Connect phone/USB OEM screen Provided female LVDS connects to OEM male LVDS cable from HU OEM head unit POWER LVDS 2 Provided 4pin LVDS cable OEM quadlock connector Supply power for external AV device Left-Det, N/A Right-Det, N/A CAM-POWER, Supply 12V power for front &... -
Page 8: Dip Setting
www.icartizan.com DIP SETTING "LIST" and "PHONE" in button "LIST" and "PHONE" in buttons on steering wheel on steering wheel Disable 360 panoramic Enable 360 panoramic CVBS Display front view camera for 10S automatically after shifted from “R” Disable front view camera gear 7 inch factory screen 8 inch factory screen... -
Page 9: Operation Instruction
www.icartizan.com OPERATION INSTRUCTION HOW TO SWITCH FROM ORIGINAL TO ADD ON INTERFACE ADD ON OEM UI INTERFACE Long press "LIST" on steering wheel or "MENU" button. It will also switch to the add on interface when plug in a phone/USB stick to USB port. HOW TO DELIVERING AUDIO TO OEM RADIO Plug AUX-USB adapter into factory USB port, select audio source to "AUXUSB"... -
Page 10: Add On Module Ui
www.icartizan.com ADD ON MODULE UI Default: TC Hidden Apple Android External Touch Ver. of "Back" CarPlay Auto AV in Android Auto Button Back to Screen Mirroring Multimedia Version Version... -
Page 11: Apple Carplay
www.icartizan.com APPLE CARPLAY NOTE! Please disconnect iPhone's bluetooth before using Apple CarPlay. Back to add on main menu Steering wheel control: Next/Previous track Accept calling / Hang up Click to activate Siri... -
Page 12: Android Auto
www.icartizan.com ANDROID AUTO Steering wheel control is same as CarPlay mode. NOTE! (tick CALL Make sure smartphone connect to original car stereo Bluetooth AUDIO, uncheck MEDIA AUDIO) for phone call audio delivering when using Android Auto. -
Page 13: Screen Mirroring
www.icartizan.com SCREEN MIRRORING Connect Android smartphone/iPhone with USB cable, and then select “MirrorLink” for screen mirroring. NOTE! Please always trust or allow when pop up notification. Enable “USB Debugging” on an Android device Android device must connect to car stereo BT for all audio delivering... - Page 14 . i c a r t i z a n . c o m Copyright © Cartizan. All rights reserved .
