- Page 1 INSTRUCTION MANUAL CARPLAY/ANDROID AUTO INTEGRATION FOR BMW NBT & NBT-EVO ID4 HEAD UNIT Model No. VI-BM-24C MCU Ver. 120010 CP-SW Ver. 20190701-v1.10.15 Manual Ver. Date Jul. 25, 2019...
-
Page 2: Table Of Contents
www.icartizan.com CONTENT Compatibility ....................4 Features ....................... 5 Package Components ................... 6 Connection Diagram ..................7 Dip Setting....................8 Operation Instruction ................... 9 How to switch from original to add on interface ........9 Shortcuts ....................9 Add on module UI .................10 Settings ....................11 Apple CarPlay ..................12 Android Auto ..................13... - Page 3 www.icartizan.com WARNING In order to protect the driving safety and avoid break the traffic law; please DO NOT operate the interface while driving. The reversing surveillance function just is used in reversing assistance. Please check the entire surroundings while reversing. All steps of installation should be done by the well-trained specialist.
-
Page 4: Compatibility
www.icartizan.com COMPATIBILITY Make Models Years Original system 1 series 2 series 3 series 4 series 5 series 6 series NBT (high-cic) & 2013-2017 NBT-EVO ID4 7 series 6.5/8.8/10.25 inch 4+2pin LVDS connector MINI Cooper 2013-2015... -
Page 5: Features
www.icartizan.com FEATURES Integrated 2 in 1 module supports Apple CarPlay and Android Auto Support USB HD video and lossless music playback (APE, WAV, FLAC, MP3, WMA, etc.) Offers 2 video in for front and rear view camera Support PDC (Parking Distance Control) and FPG (Flexible Parking Guidelines) Supply pure 12V power to the front/rear view camera Display front view automatically after shifting from “R”... -
Page 6: Package Components

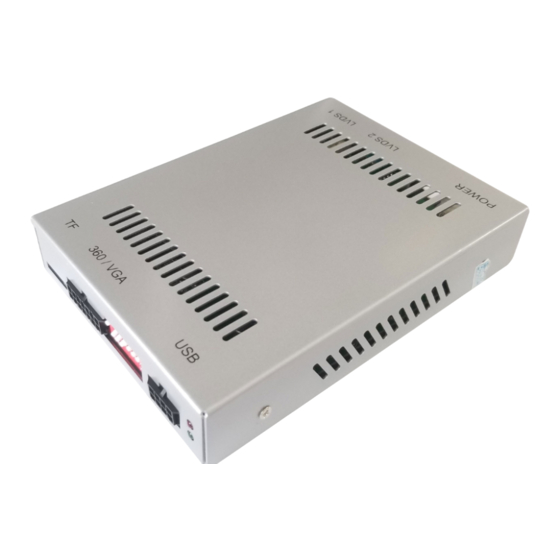

www.icartizan.com PACKAGE COMPONENTS 26 mm 101 mm 141 mm Main unit Quadlock power harness LVDS cable USB/MIC cable Optional components: External microphone 3.5mm AUX cable (Designed for car without factory (Connect to factory AUX port if the head microphone) unit integrates MOST fiber optic) -
Page 7: Connection Diagram
www.icartizan.com CONNECTION DIAGRAM Connect external MIC Connect phone/USB stick Provided 6pin OEM screen LVDS cable OEM 6pin OEM head unit LVDS cable POWER LVDS 2 LVDS 1 Move fiber optic cable to the provided quadlock connector, then plug into the head unit OEM quadlock connector Supply power for external... -
Page 8: Dip Setting
www.icartizan.com DIP SETTING Disable PDC, Enable PDC (full screen reversing camera) (split reversing screen with PDC) Disable 360 panoramic Enable 360 panoramic CVBS If you use aftermarket camera and the image does not display, set this Default dip to ON Selection of OEM screen size Original rear camera or none Aftermarket rear camera... -
Page 9: Operation Instruction
www.icartizan.com OPERATION INSTRUCTION HOW TO SWITCH FROM ORIGINAL TO ADD ON INTERFACE ADD ON OEM UI INTERFACE Press and hold "MENU" or "BACK" button on iDrive controller for 3S to switch menu. It will also switch to add on interface automatically after plugging a mobile phone or USB stick. -
Page 10: Add On Module Ui
www.icartizan.com Press and hold "OPTION" for 3S Press and hold "MODE" on to display front view camera steering wheel for 10S will reboot the interface ADD ON MODULE UI Apple Android Back to Settings CarPlay Auto multimedia factory menu... -
Page 11: Settings
www.icartizan.com SETTINGS Auto Phone Connect ON: CarPlay or Android Auto will start automatically after connecting your iPhone or Android smartphone. Driver Position Left/Right: Left/right driving mode on CarPlay. Front Camera Time: Automatic front view display time, 0 means disable front view, 10s max. MCU version CP software version... -
Page 12: Apple Carplay
www.icartizan.com APPLE CARPLAY NOTE! Please disconnect iPhone's bluetooth before using Apple CarPlay. Back to add on main menu Press: enter Scroll: move cursor Previous Next track track Hang up Click: accept calling Long press: activate Siri Press and hold Back to activate Siri... -
Page 13: Android Auto
www.icartizan.com ANDROID AUTO A area B area move cursor between A Move cursor and B area to A area Move cursor to A area/ Activate Open sub Google menu of Assistant upper left Click: accept calling Hang up Press and hold to Long press: activate Google Back/Move activate Google... - Page 14 ® w w w . i c a r t i z a n . c o m Copyright © Cartizan. All rights reserved .
