- Page 1 Total Solutions for Car Audio & Video Interface User Manual OEM RADIO:Camera Interface for FORD SYNC 2 system with 7" OEM monitor Model name PAS-FD-SYNC2 Released Date 2020-03-18 Manual Version V1.3 Language English Cartizan Technology | www.icartizan.com...
- Page 2 Total Solutions for Car Audio & Video Interface 1. Car Compatibility Car Models Production Year New Edge -2016 kuga -2016 Focus -2016 Cartizan Technology | www.icartizan.com...
-
Page 3: Table Of Contents
Total Solutions for Car Audio & Video Interface Contents 1.Features ................................4 2.Specifications............................... 5 3.Packing Lists ................................ 6 4.Wiring Diagram ..............................7 5.DIP Switch Settings ............................. 8 6.Operation Instructions ............................11 7.Safety Considerations ............................17 Cartizan Technology | www.icartizan.com... -
Page 4: Features
A. IPAS+ 2 Video in B. Support Intelligent parking assist system(selected models) C. Reverse camera auto trigger D. 1 video in for rear camera, another for 360 view or DVR/front view(need factory radio botton to switch it) Optional: 360 Panoramic,etc Cartizan Technology | www.icartizan.com... -
Page 5: Specifications
Input: CVBS *2 (Rear View Camera, 360, Front View Camer), VGA *1 (Specific 360 Panoramic System) Output: FPC 2. Power Spec: Input Power: 9V-16V Consumption: 6W 3. Package Content: Interface Unit * 1 Main Power Cable * 1 FPC * 1 Cartizan Technology | www.icartizan.com... -

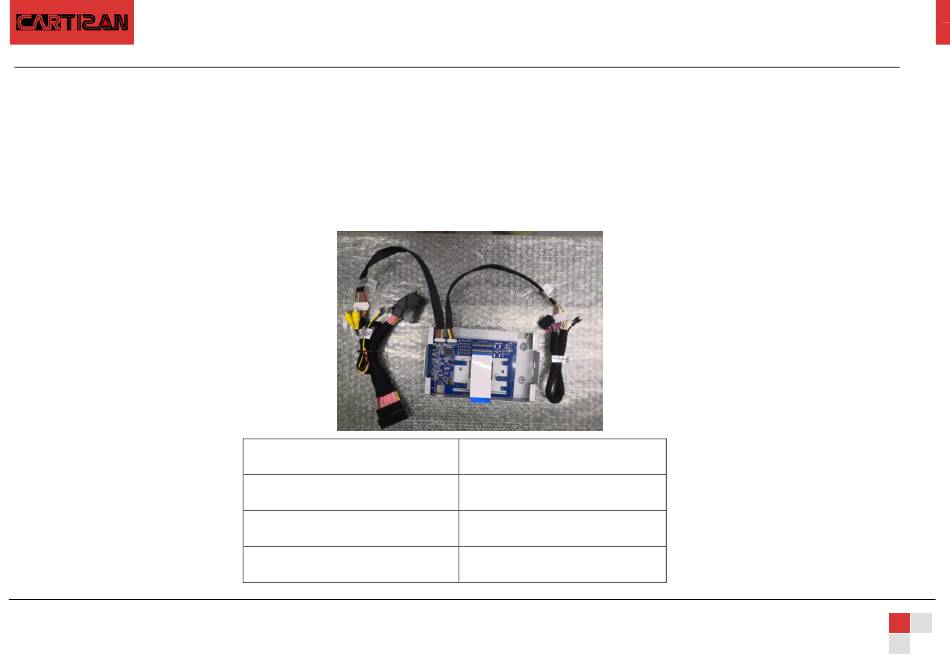

Page 6: Packing Lists
Total Solutions for Car Audio & Video Interface 3. Packing Lists Camera Interface Power Harness Cartizan Technology | www.icartizan.com... -
Page 7: Wiring Diagram
Total Solutions for Car Audio & Video Interface 4. Wiring Diagram Cartizan Technology | www.icartizan.com... -
Page 8: Dip Switch Settings
OFF(▲) OFF(▲) OFF(▲) New Edge OFF(▲) OFF(▲) ON (▼) ▼ ▲ ON ( OFF( Turn off PDC Turn on PDC Turn off dynamic guideline Turn on dynamic guideline Turn on DVR Turn off DVR VGA 360 Cartizan Technology | www.icartizan.com... - Page 9 *Please note that DIP Switch 5 and 8 put ON ( for OEM rear view. * Dip Switcher SettingsⅡ（Quick Setting）: Mode selection No.4 No.5 No.6 No.7 No.8 ▲ ▲ ▲ ▲ ▼ AV.360 (Canbus reverse OFF( OFF( OFF( OFF( ON ( not working) Cartizan Technology | www.icartizan.com...
-
Page 10: Operation Instructions
2. First remove the top frame on the screen of the original car with tools (Figure 2). 3. Remove the screws with a screwdriver and take out the screen and the radio of the original car (Figure 3). Cartizan Technology | www.icartizan.com... - Page 11 5. Same as step 4 to remove the four screws at the side of the display with a screwdriver (Figure 5), unscrew the three screws on the original screen board (Figure 6). Figure 4 Figure 5 Figure 6 Cartizan Technology | www.icartizan.com...
- Page 12 Total Solutions for Car Audio & Video Interface 6. Install the three screw holes of the interface with the original screen board to fix the original screen board. 7. Set the dip switcher before recover the radio. Transfer the power harness as below: Cartizan Technology | www.icartizan.com...
- Page 13 Total Solutions for Car Audio & Video Interface * Long press MENU button on the steering wheel for 2 seconds to enter the DVR/front view. Cartizan Technology | www.icartizan.com...
-
Page 14: Safety Considerations
6. Please note that put the disassemble automotive components in a good way on the installation process, avoid scratching the instrument panel, the leftovers of connect cables need to handle and do not leave it in the car. The connecting plug must be insulated in order to short circuit. Cartizan Technology | www.icartizan.com... - Page 15 There need to be fasten after connecting cables in case of drop. 8. Please do not plug or pull the connected cables in the state of power-on, in order to avoid damaging monitor or accessory. Cartizan Technology | www.icartizan.com...
- Page 16 Total Solutions for Car Audio & Video Interface w w w. i c a r t i z a n . c o m Copyright © Cartizan. All rights reserved. Cartizan Technology | www.icartizan.com...
