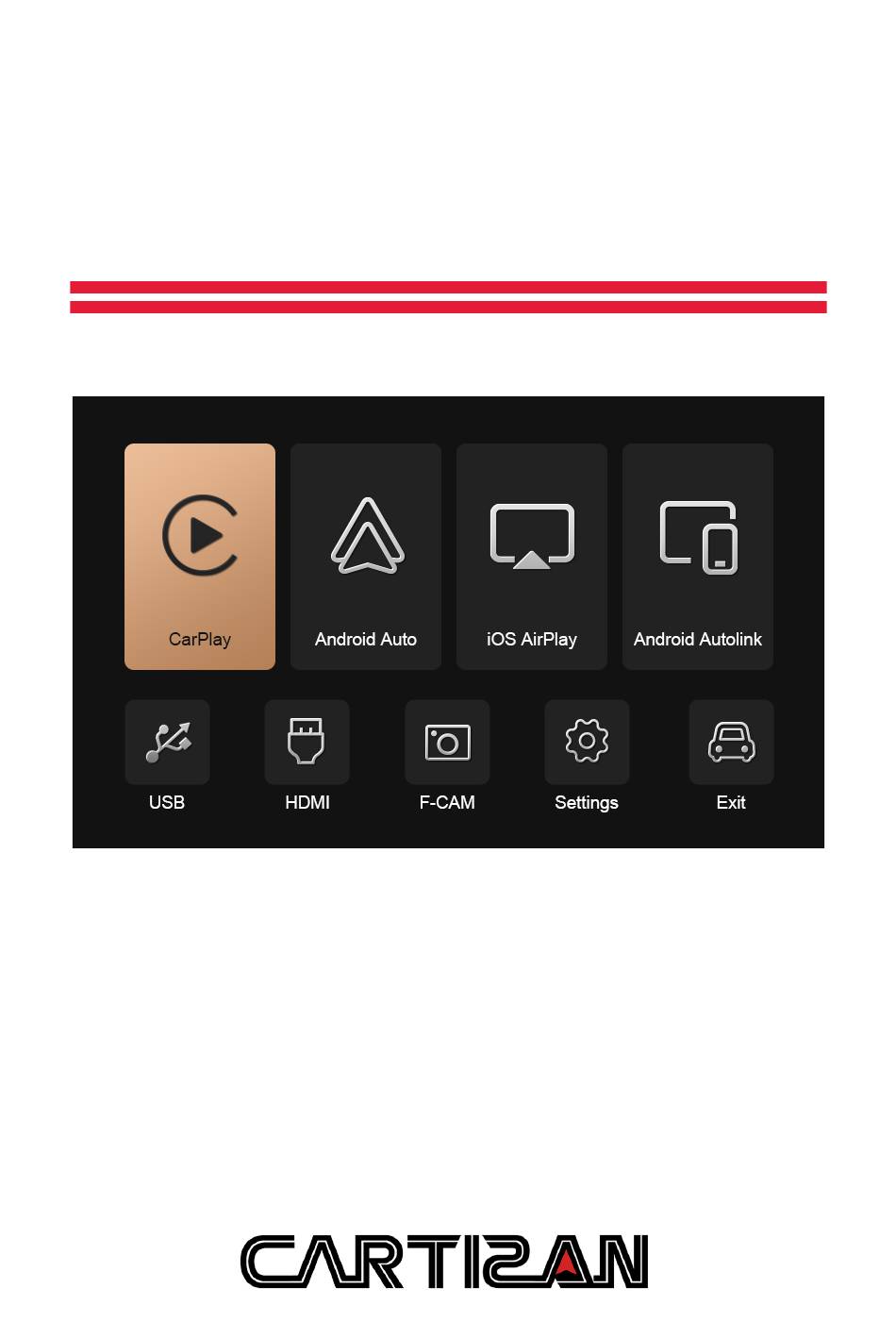

- Page 1 INSTRUCTION MANUAL CHAMPION OEM INTERFACE ®...
-
Page 2: Table Of Contents
HIGHLIGHTS ......................5 MAIN INTERFACE ....................6 APPLE CARPLAY ....................7 Connect to USB cable CarPlay ................7 How to connect to wireless CarPlay ..............8 ANDROID AUTO ....................10 Connect to USB cable Android Auto ..............10 How to connect to wireless Android Auto ............10 IOS AIRPLAY......................12 ANDROID AUTOLINK ....................13... - Page 3 SETTINGS ......................14 Connections ....................14 Connect New Device ...................14 BT Paired Device ..................14 BT Reset ......................14 Audio ......................15 Volume .......................15 Equalizer .....................16 Microphone ....................16 Equal Loudness ...................16 Navi and factory FM audio mixed ..............16 Parking ......................17 Reverse Camera Type ..................17 Activate R-CAM through Reversing Lights ............17 Dynamic Parking Guideline .................18 Parking Distance Control ................18 Front-View Display Time ................18...
- Page 4 WARNING In order to protect the driving safety and avoid break the traffic law; please DO NOT operate the interface while driving. The reversing surveillance function just is used in reversing assistance. Please check the entire surroundings while reversing. All steps of installation should be done by the well-trained specialist. During installation, the ignition key should be taken off and after all installation finished, connect power cable last.
-
Page 5: Highlights
HIGHLIGHTS • Integrated all in one module supports Apple CarPlay (wireless & wired), Android Auto (wireless & wired), iOS wireless AirPlay mirroring, Android device wired screen mirror (AutoLink) • Auto switch CarPlay / Android Auto appearance (light or dark) depending on car headlights •... -
Page 6: Main Interface
MAIN INTERFACE CarPlay: Wireless & wired Apple CarPlay Android Auto: Wireless & wired Android Auto iOS AirPlay: Wireless AirPlay mirroring for iPhone, iPad Android Autolink: USB cable screen mirror for Android smartphone USB Media: USB flash drive multimedia playback (music, video, picture) HDMI: 720P HDMI audio &... -
Page 7: Apple Carplay
APPLE CARPLAY Connect to USB cable CarPlay Plug in an iPhone with lightning USB cable, select "CarPlay" icon of interface to enter CarPlay function. Then tap "Allow, Use USB Only" on the iPhone pop-up notifications. For the better connection performance, please use the original genuine USB cable. -
Page 8: How To Connect To Wireless Carplay
1. Turn on your iPhone's WiFi / Bluetooth and stay on the BT menu (allow new connections). 2. On CHAMPION interface, select "Settings" >>> "Connection" >>> "Connect New Devices" >>> "Start Search". 3. Tap "Stop Search" when your iPhone device found, then select your iPhone device from the list, next select "iAP2 Profile". - Page 9 Connection method II 1. Turn on your iPhone's WiFi / Bluetooth and search BT name "CPI_BT_XXXX" then tap it on your iPhone. Tips. The exact interface BT name will list on the menu of "Connect New Devices". 2. Tap "Pair - Allow - Use CarPlay" on the following pop-up notifications. 3.
-
Page 10: Android Auto
ANDROID AUTO Before using Android Auto, please make sure the latest Android Auto app installed on your smartphone. Wireless Android Auto is supported on 1. smartphone running Android 11 or newer with 5GHz Wi-Fi built-in 2. Google phone 3. Some Samsung Galaxy phone. - Page 11 Connection method II 1. Turn on your Android smartphone's WiFi / Bluetooth (allow new connections). 2. On CHAMPION interface, select "Settings" >>> "Connection" >>> "Connect New Devices" >>> "Start Search". 3. Tap "Stop Search" when your smartphone found, then select your phone device from the list, next select "Hands Free Profile".
-
Page 12: Ios Airplay
IOS AIRPLAY 1. Select "iOS AirPlay" icon of interface. 2. Connect your iPhone/iPad to the WiFi network "CPI_Wireless_xxxx" (password: 88888888). 3. Open iPhone/iPad's Control Center, tap Screen Mirroring and select CPI airplay from the list of devices. 4. It will connect to Airplay screen mirroring after a few seconds. -
Page 13: Android Autolink
ANDROID AUTOLINK Connection method I 1. Select "Autolink" icon of interface, then plug in a smartphone with USB cable. 2. Tap "View" and "Download" on Android smartphone's pop-up notifications to download and install the app: Autolink. 3. After the installation finish, disconnect and reconnect the USB cable. 4. -
Page 14: Settings
SETTINGS Connections Connect New Device Connect a new iPhone/Android smartphone to wireless Apple CarPlay/Android Auto (refer to page 8 and page 11). BT Paired Device List of paired Bluetooth devices, you can connect/disconnect/delete paired device here. BT Reset Reset Bluetooth settings, all connection history will be erased after confirmation. -
Page 15: Audio
Audio General setting options Unique setting options for some car models. Volume • Main Volume: for the whole interface's volume • Music Volume: for music playback volume • In Call Volume: for phone talking volume • Voice Assistant Volume: for Siri, Google Assistant volume •... -
Page 16: Equalizer
Please DO NOT use this feature if your microphone does not echo. • Echo Canceling Config: CHAMPION interface module integrates some common microphone configurations for your car models. You could choose your suitable option by manual, or keep default if MIC does not echo. -
Page 17: Parking
Parking General setting options Unique setting options for some car models. Reverse Camera Type Option for rear view camera type: Original or Aftermarket. Original means factory rear view system or non-camera. Aftermarket means add-on camera. Activate R-CAM through Reversing Lights For some car models, if interface's cable "Camera 12V out"... -
Page 18: Dynamic Parking Guideline
Dynamic Parking Guideline Enable dynamic parking guideline on aftermarket rear view system. Parking Distance Control Enable parking distance control on aftermarket rear view system. Front-View Display Time Set aftermarket front view camera duration after shifting from R gear. 15s max and 0 means disable front-view. Press "BACK" button to exit front-view manually. -
Page 19: Exit Reversing With Menu Button
Exit Reversing with MENU Button For some BMW vehicles (without PARK ASSISTANT button) to exit rear view manually after shifting from R gear. Full Screen Reversing Full-screen rear view system. Only for some wide-screen vehicles like BMW 8.8/10.25, Lexus 10.3/12.3 inch, etc. Required to restart the interface for effect after changing the setting. -
Page 20: Display
Display Size Adjustment Size adjustment for CarPlay and Android Auto, including left, right, top, bottom. Please DO NOT adjust if display correctly. Colors Colors adjustment including Contrast, Chroma, Saturation, Brightness. -
Page 21: Advanced Features
Advanced Features General setting options Unique setting options for some car models. Right-Hand Drive CarPlay... -
Page 22: Auto Switch Carplay/Aa Appearance
Auto Switch CarPlay/AA Appearance When enabling this option, Apple CarPlay and Android Auto user interface will auto switch light/dark appearance depending on the car headlights. Please make sure your iOS/Android Auto app version support auto-switch mode before using this function. Enable Steering Wheel Control Enable steering wheel buttons control interface module. -
Page 23: Swc Options
SWC Options Unique option for Lexus vehicles. When your car steering wheel control button not working properly, change the options inside. There are 3 options inside: A (default), B, C. Center Console Type Unique option for Lexus vehicles. Select "Mini Touch Pad" if your car models with a small size touchpad (4 buttons) in the center console. -
Page 24: Information
Information Software Update Update options including MCU, System, CarPlay icon, etc. For the system stability, a password is required to enter this function, please contact our after- sales team to obtain the password. Factory Mode For the system stability, a password is required to enter this function, please contact our after-sales team to obtain the password. -
Page 25: How To
HOW TO How to restart the system quickly To restart the system, please press "BACK" button and hold for 8 seconds. How to adjust parking guideline 1. Enable dynamic parking guideline in parking settings. 2. Shift to R gear. 3. Press and hold the "Enter" button for 3s to adjust guideline position horizontally. - Page 26 Google, Google Play, Android, Android Auto, are trademarks of Google Inc., registered in the U.S. and other countries. Apple, iPhone, iPad, and CarPlay are trademarks of Apple Inc., registered in the U.S. and other countries. We are not affiliated with Google Inc. or Apple Inc. All other product and service names mentioned are the trademarks of their respective companies.
- Page 27 ® w w w . i c a r t i z a n . c o m Copyright © Cartizan. All rights reserved .
