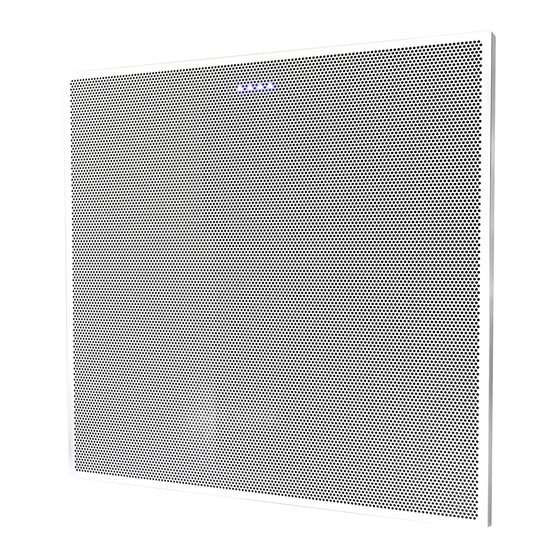

ClearOne BMA CT Installation Manual

Conduit Boxes for BMA CT, CTH,
and BMA 360
The method of attachment of the conduit box differs between a BMA CT or CTH, and a BMA 360.
For the BMA CT or CTH, adhesive strips are used; for the BMA 360, screws are used.
Important: ClearOne recommends that you attach the conduit box before you install the full unit in
the ceiling grid.
For BMA CT or CTH
Step 1
Remove adhesive tape liner from bottom three
surfaces of conduit box to expose adhesive strips. This
adhesive is rated for high temperatures.
Step 2
To avoid prematurely engaging the adhesive while you align
the open end of the box to the BMA CT/CTH connectors, tilt
the conduit box and slide it into position against the self-
clinching nuts.
Press the box into place.
Step 3
Remove the conduit box lid.
Attach conduit.
Route cables through desired knockouts.
Use the four M4x8mm screws to re-attach the conduit
box lid.
Information in this document is subject to change without notice.
Conduit Box Part Number:
910-3200-205-CB
Included Parts:
Conduit box with 6 concentric 1/2"
•
and 3/4" knockouts, with adhesive
strips on edges (1)
Conduit box lid (1)
•
M4x8mm screws (4)
•
© 2021 ClearOne
Installation Guide
QSG-0080-001v2.1 January 2021
