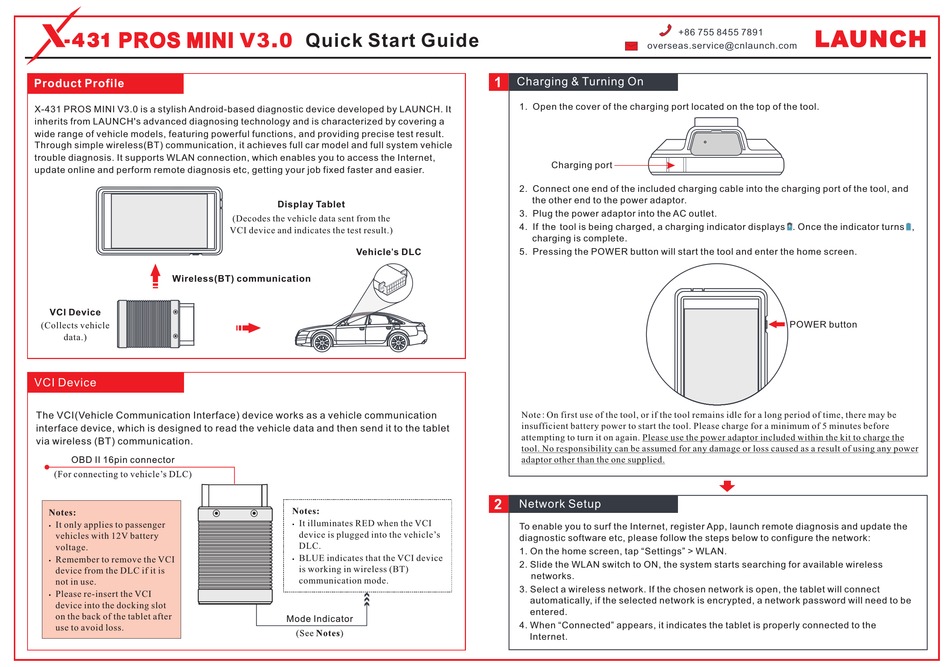

Launch X-431 PROS MINI 3.0 Quick Start Manual

PROS MINI

Product Profile

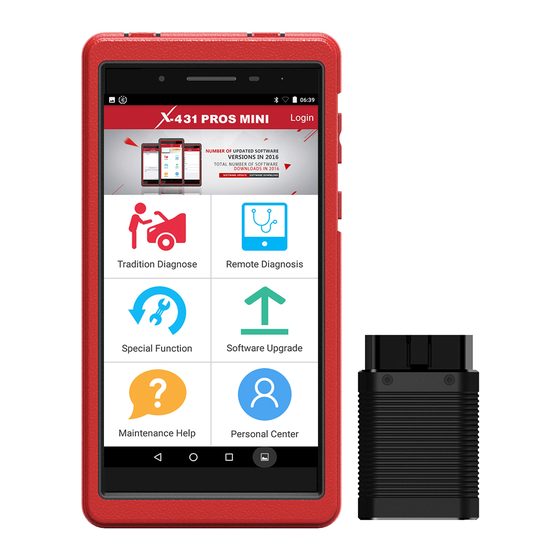

X-431 PROS MINI V3.0 is a stylish Android-based diagnostic device developed by LAUNCH. It
inherits from LAUNCH's advanced diagnosing technology and is characterized by covering a
wide range of vehicle models, featuring powerful functions, and providing precise test result.
Through simple wireless(BT) communication, it achieves full car model and full system vehicle
trouble diagnosis. It supports WLAN connection, which enables you to access the Internet,
update online and perform remote diagnosis etc, getting your job fixed faster and easier.
Wireless(BT) communication
VCI Device
(Collects vehicle
data.)
VCI Device
The VCI(Vehicle Communication Interface) device works as a vehicle communication
interface device, which is designed to read the vehicle data and then send it to the tablet
via wireless (BT) communication.
Notes:
It only applies to passenger
Ÿ
vehicles with 12V battery
voltage.
Remember to remove the VCI
Ÿ
device from the DLC if it is
not in use.
Please re-insert the VCI
Ÿ
device into the docking slot
on the back of the tablet after
use to avoid loss.
Quick Start Guide
Display Tablet
(Decodes the vehicle data sent from the
VCI device and indicates the test result.)
Vehicle's DLC
Notes:
It illuminates RED when the VCI
Ÿ
device is plugged into the vehicle's
DLC.
BLUE indicates that the VCI device
Ÿ
is working in wireless (BT)
communication mode.
overseas.service@cnlaunch.com
1 Charging & Turning On
1. Open the cover of the charging port located on the top of the tool.
Charging port
2. Connect one end of the included charging cable into the charging port of the tool, and
the other end to the power adaptor.
3. Plug the power adaptor into the AC outlet.
4. If the tool is being charged, a charging indicator displays . Once the indicator turns ,
charging is complete.
5. Pressing the POWER button will start the tool and enter the home screen.
Note:On first use of the tool, or if the tool remains idle for a long period of time, there may be
insufficient battery power to start the tool. Please charge for a minimum of 5 minutes before
attempting to turn it on again. Please use the power adaptor included within the kit to charge the
tool. No responsibility can be assumed for any damage or loss caused as a result of using any power
adaptor other than the one supplied.
2

Network Setup

To enable you to surf the Internet, register App, launch remote diagnosis and update the
diagnostic software etc, please follow the steps below to configure the network:
1. On the home screen, tap "Settings" > WLAN.
2. Slide the WLAN switch to ON, the system starts searching for available wireless
networks.
3. Select a wireless network. If the chosen network is open, the tablet will connect
automatically, if the selected network is encrypted, a network password will need to be
entered.
4. When "Connected" appears, it indicates the tablet is properly connected to the
Internet.
