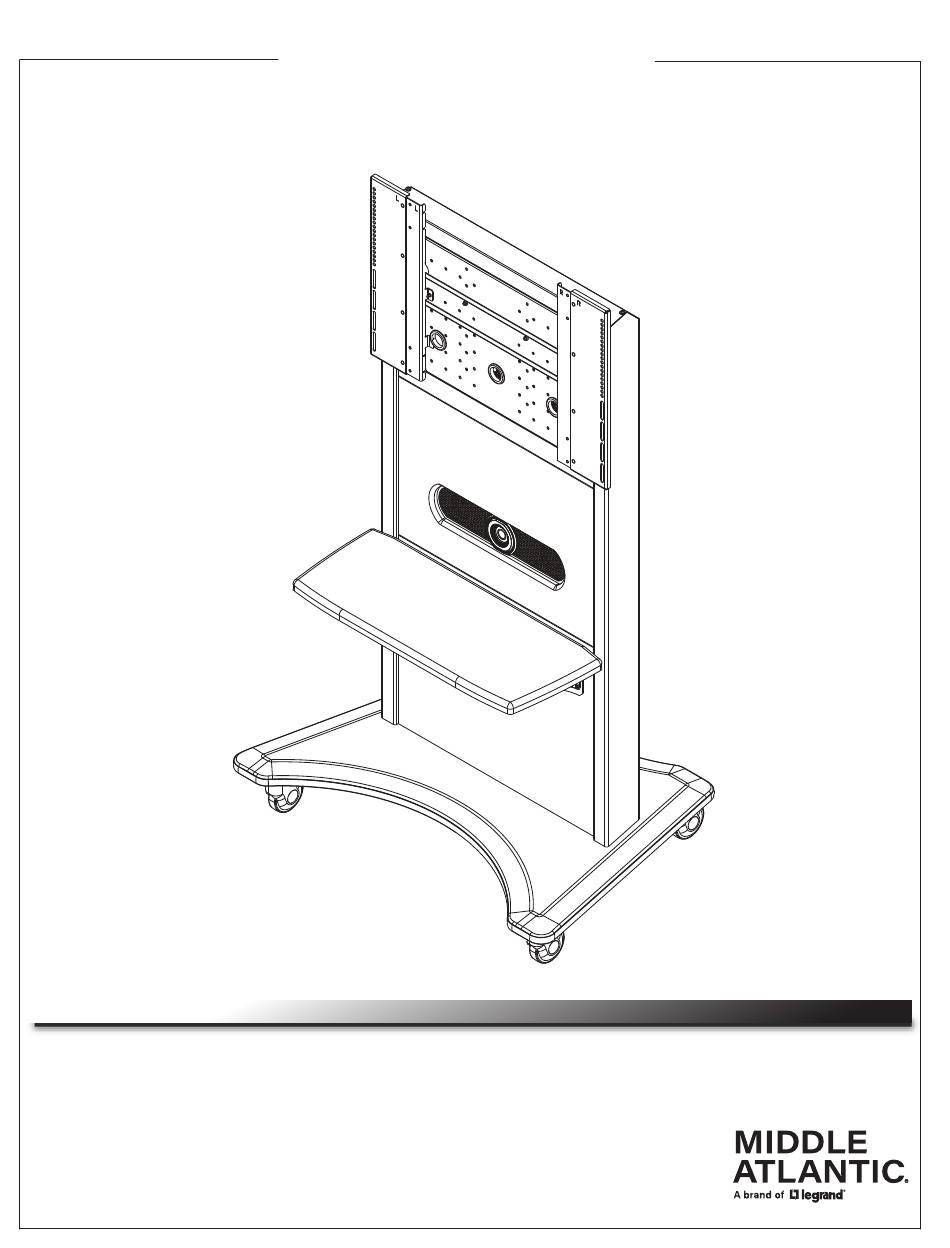

Instruction Sheet
FlexView Series

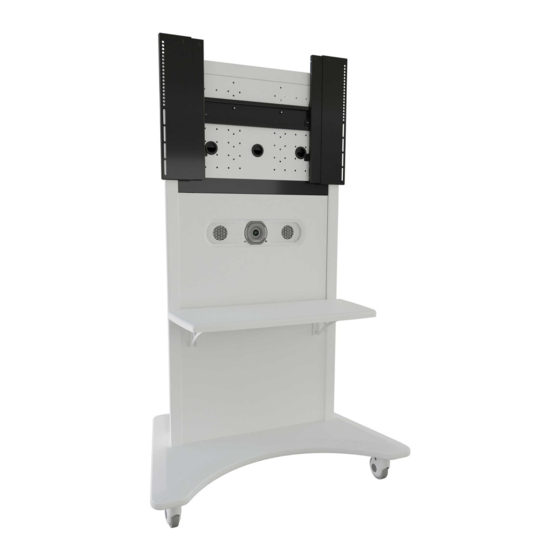

Conferencing Cart with HuddleSHOT FC
(FVS-HSFC-800SC-WH)
THANK YOU
Thank you for purchasing a FlexView Conferencing Cart with HuddleSHOT FC (Flush-Mounted
Camera). Please read these instructions thoroughly before installing or assembling this product.
100-00057
Rev A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIDDLE ATLANTIC FlexView Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LEGRAND MIDDLE ATLANTIC FlexView Series

Summary of Contents for LEGRAND MIDDLE ATLANTIC FlexView Series

  • Page 1 Instruction Sheet FlexView Series Conferencing Cart with HuddleSHOT FC (FVS-HSFC-800SC-WH) THANK YOU Thank you for purchasing a FlexView Conferencing Cart with HuddleSHOT FC (Flush-Mounted Camera). Please read these instructions thoroughly before installing or assembling this product. 100-00057 Rev A...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Instructions......................3 - 4 Weight Rating............................5 Supplied Components and Hardware....................5 - 6 Required Tools............................6 Introduction............................6 - 7 Considering Display and Camera Heights....................7 Installing The Leveling Feet (Optional)....................8 Configuring Your Display Height (Optional)..................8 - 9 Changing Your Flush-Mount Camera (FC) Height (Optional)............9 - 11 Selecting Correct Interface Bracket Hardware for Your Display............12 Installing the VESA 800 Display Adapter Brackets (Optional).............12 Attaching Interface Brackets to the Back of Your Display..............13...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS • Read these instructions. • Heed all warnings. • Clean only with dry cloth. • Keep these instructions. • Follow all instructions. • Only use attachments/accessories specified by the manufacturer. DANGER HAZARDOUS VOLTAGE: The lightning flash with the arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 4 INSTRUCTIONS IMPORTANTES SUR LA SÉCURITÉ • Lire ces instructions. • Respectez tous les avertissements. • Nettoyer uniquement avec un chiffon sec. • Conservez ces instructions. • Suivez toutes les instructions. • N'utilisez que des accessoires spécifiés par le fabricant. DANGER TENSION DANGEREUSE: Le symbole de la pointe de flèche, dans un triangle équilatéral, est destiné à alerter l'utilisateur sur la présence de tension dangereuse non isolée dans l'enceinte du produit qui peut être d'une ampleur suffisante pour constituer un risque d'électrocu- tion.

  • Page 5: Weight Rating

    Le poids total de l'équipement ne doit pas dépasser les quantités indiquées dans le tableau précédent. SUPPLIED COMPONENTS AND HARDWARE If any pieces are missing or damaged, please report it immediately to Technical Support at av.support@legrand.com or (866) 977-3901. 10” Lever Lock™ (2x) Plate 2”...

  • Page 6: Required Tools

    Screw Locking Rivet Clip to Lever Lock NOTE: • To order more hardware, contact support at av.support@legrand.com or (866) 977-3901. • Additional hardware is included that may not be Power Cable EMEA Power Cable Option (NEMA5-15P) required for your installation.

  • Page 7: Considering Display And Camera Heights

    INTRODUCTION (CONTINUED) After completing all installation procedures for your FlexView Conferencing Cart and any options you may have purchased, learn to correctly operate your HuddleSHOT FC by using the additional documentation available online at: https://www.legrandav.com/products/technical_furniture/display_carts_and_stands/flexview_videoconferencing_cart_with_huddleshot Some of the additional documents include: •...

  • Page 8: Installing The Leveling Feet (Optional)

    INSTALLING THE LEVELING FEET (OPTIONAL) WARNING: This procedure requires at least one Studs Caster Nuts additional person. AVERTISSEMENT: Cette procédure nécessite au moins une personne supplémentaire. NOTE: You can remove the (4x) pre-installed casters on the bottom of your FlexView Conferencing Cart and replace them with the provided leveling feet, if desired.

  • Page 9: Changing Your Flush-Mount Camera (Fc) Height (Optional)

    CONFIGURING YOUR DISPLAY HEIGHT (OPTIONAL, CONTINUED) WARNING: Never configure the height with your display attached. AVERTISSEMENT: Ne configurez jamais la hauteur avec votre écran attaché. Horizontal Available mounting points for the Horizontal Mounting Bracket. Mounting Bracket NOTE: Columns shaded for clarity. (2x) ¼-20 x 1”...
  • Page 10 CHANGING YOUR FLUSH-MOUNT CAMERA (FC) HEIGHT (OPTIONAL, CONTINUED) Lever Lock Bracket NOTE: Adjust torque on power driver to lightest setting and only increase as necessary. 4. Use a power driver or wrench and a 5/16” socket to remove 10-32 x ⅜” hex head screws from Lever Lock brackets as shown (1 screw per bracket) and set all components and hardware aside.
  • Page 11 CHANGING YOUR FLUSH-MOUNT CAMERA (FC) HEIGHT (OPTIONAL, CONTINUED) 6. Carefully place the removed camera panel (with the HuddleSHOT FC still attached to it) facedown onto an appropriate work surface. NOTE: The (4x) 10-32 x ½” screws are shown in black 7.

  • Page 12: Selecting Correct Interface Bracket Hardware For Your Display

    SELECTING CORRECT INTERFACE BRACKET HARDWARE FOR YOUR DISPLAY NOTE: The interface hardware kit provided includes different pan head screw sizes (I-A - I-M) to accommodate the threaded inserts Thread Depth on the back of most displays. This topic helps you select the Indicator (Toothpick or Straw) correct size pan head screws for your display.

  • Page 13: Attaching Interface Brackets To The Back Of Your Display

    ATTACHING INTERFACE BRACKETS TO THE BACK OF YOUR DISPLAY 1. Carefully place your display facedown onto an appropriate work surface. Interface brackets (F) are 2. Align the left and right interface brackets (F, labeled "L" and "R" punched with “L” and “R” accordingly) with threaded inserts on the back of your display.

  • Page 14: Hanging Your Display Onto The Horizontal Mounting Bracket

    HANGING YOUR DISPLAY ONTO THE HORIZONTAL MOUNTING BRACKET WARNING: This procedure requires at least one additional person. AVERTISSEMENT: Cette procédure nécessite au moins une personne supplémentaire. 1. With at least one other person, carefully lift your display slightly above both top and bottom rails on the horizontal mounting bracket.

  • Page 15: Reversing The Door

    REVERSING THE DOOR NOTE: The door on your cart comes pre-assembled the hinges inserted into holes on Hinge the left side, and the catch is located on the right. This topic may be used to reverse the door, if desired. 1.

  • Page 16: Understanding Cable Management

    Factory Distribution United States: New Jersey, California, and Illinois | Canada: Ontario | The Netherlands: Weert At Legrand AV Inc. we are always listening. Your comments are welcome. Legrand AV is an ISO 9001 and ISO 14001 Registered Company. Page 16...
